Applications of RK3399 Chip in Consumer Products and Key PCB Design Considerations

With continuous technological advancement, the application of the RK3399 chip in consumer products has gradually become a trend. As a powerful embedded processor, the RK3399 is widely used in consumer electronics such as smart TVs, smart speakers, and smart cameras. PCB design is particularly critical when applying the RK3399 chip to these products. This article discusses the applications of the RK3399 chip in consumer products and key considerations during the PCB design process.

The RK3399 chip is designed based on the ARM architecture, equipped with a dual-core Cortex-A72 + quad-core Cortex-A53 processor and a Mali-T860 MP4 GPU. Its powerful computing capability delivers outstanding performance in multimedia data processing and complex application execution, making it widely adopted in high-performance consumer electronics.

The RK3399 chip integrates rich interfaces including HDMI, USB, PCIe, and MIPI-DSI, providing flexible connectivity and expansion capabilities for consumer products. This enables product designers to better meet market demands and develop consumer electronics with diverse functions and performance levels.

The RK3399 chip integrates multiple functional modules including CPU, GPU, VPU (Video Processing Unit), and ISP (Image Signal Processor), offering an all-in-one solution. Such high integration helps simplify product design, reduce product size, and improve overall performance.

The RK3399 chip has strict power supply requirements; a stable power supply ensures normal chip operation. In PCB design, power distribution must be rationally planned, and appropriate filtering and voltage regulation schemes adopted to guarantee power stability and prevent performance degradation caused by voltage fluctuations.

Due to its high performance, the RK3399 chip generates considerable heat during operation. Effective thermal solutions such as heat sinks and thermal vias must be considered in PCB design to maintain the chip within an appropriate operating temperature range and avoid performance degradation and lifespan reduction caused by overheating.

The RK3399 chip has high signal integrity requirements when processing high-speed signals. In PCB design, signal routes should be rationally planned, trace length and impedance controlled, and differential pairs utilized to minimize signal crosstalk and reflection, ensuring reliable high-speed signal transmission.

The RK3399 chip integrates multiple interfaces (HDMI, USB, PCIe, etc.), so the layout and connection of external interfaces require careful consideration in PCB design. Rational placement and routing of these interfaces avoid signal interference and EMC (Electromagnetic Compatibility) issues, ensuring stable connections and optimal performance of external devices.
 RK3399 Consumer Product Interface Block Diagram

Multi-layer PCB design is typically required for consumer products using the RK3399 chip. Proper layer stack-up planning with optimized distribution of power planes, signal layers, and ground planes improves overall circuit performance and anti-interference capability.

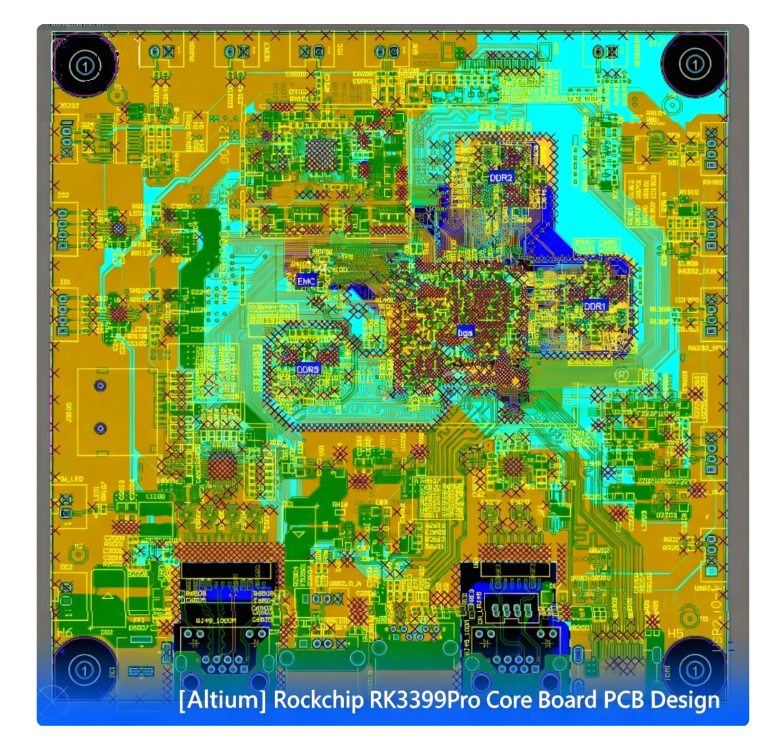

 RK3399 Core Board PCB Layout (Altium Designer)

PCB dimension and layout planning significantly impact the product’s form factor and performance. Rational placement of the chip and other components, considering thermal and assembly requirements, enhances product manufacturability and overall quality.

The application of the RK3399 chip in consumer products provides powerful computing capability and abundant interface support, enabling consumer electronics to better meet market demands. Robust PCB design is essential when deploying the RK3399 chip. Factors including power supply stability, thermal design, signal integrity, external interface design, PCB layer stack-up planning, and dimension/layout directly determine product performance, stability, and reliability. Well-executed PCB design fully unlocks the advantages of the RK3399 chip, creating more competitive consumer electronics.
