1. Document Overview
This technical specification is formulated based on the global general PCB design, manufacturing and assembly industry standards issued by IPC (Association Connecting Electronics Industries). It systematically interprets the core definitions, classification rules, quantitative technical requirements and typical application scenarios of PCB acceptance classes, providing standardized technical references for the entire electronic manufacturing industry chain. It ensures that the entire process of PCB product design, production and inspection complies with international general specifications and eliminates technical cognitive deviations between suppliers and buyers.
2. Background of IPC Organization and Standard System
2.1 Official Definition of IPC Organization
IPC (Association Connecting Electronics Industries), formerly known as the Institute for Printed Circuits, is the most authoritative non-profit international industry organization in the global electronic interconnection industry. Currently, it has more than 4,500 member enterprises worldwide, covering the full electronic manufacturing fields including advanced microelectronics, aerospace, military defense, automotive electronics, computers, industrial control, medical equipment, and communication networks. IPC leads the development of the international general industry standard system covering the entire industrial chain of PCB design, raw materials, manufacturing, assembly, inspection and reliability testing.
2.2 Core Value of IPC Acceptance Class System
As the core interconnection carrier of electronic equipment, the quality, reliability and performance of PCB directly determine the operational stability of end products. The IPC acceptance class system has established a unified quality acceptance benchmark for the global PCB industry, and its core values are reflected in:
- Establishing a globally unified standard for product quality and reliability acceptance, realizing standardized communication between suppliers and buyers, and eliminating technical cognitive deviations
- Standardizing the process control requirements for the entire process of PCB design, manufacturing and assembly, improving production yield, and reducing the total lifecycle manufacturing cost
- Ensuring that the performance and reliability of end products accurately match the requirements of application scenarios, improving product market competitiveness, and reducing after-sales failure rates
- Providing authoritative technical basis for supplier access, product acceptance, and quality arbitration in the upstream and downstream of the supply chain
3. Classification and Quantitative Technical Requirements of Core IPC PCB Acceptance Classes
IPC has issued three core general acceptance classes for bare board manufacturing, assembly and inspection, which correspond to different end application scenarios, reliability requirements and process control standards. The core basis is the three major standards: IPC-A-600 Acceptability of Printed Boards, IPC-6012 Specification for Rigid Printed Boards, and IPC-A-610 Acceptability of Electronic Assemblies.
3.1 IPC Class 1: General Consumer Electronic Products
Core Definition: Applies to general consumer electronic products with limited service life and simple functions. The core acceptance requirement focuses on realizing the complete electrical functions of the product, with a high tolerance for appearance defects that do not affect electrical performance and assembly. Long-term operational reliability is not taken as the core assessment index.
Quantitative Technical Requirements:
- Allow the existence of appearance defects that do not affect electrical functions and product assembly (such as minor scratches, solder mask color differences, copper foil notches ≤10% of line width in non-critical areas)
- No mandatory assessment requirements for long-term reliability and environmental adaptability
- Implement the industry's basic general process control standards, with the lowest manufacturing cost as the core goal
- Copper foil thickness tolerance: ±20%; Hole wall plating thickness: ≥12μm; Impedance tolerance: ±15%
Typical Application Scenarios: TV remote controls, LED lighting fixtures, children's toys, disposable consumer electronics, simple small household appliances, and other general consumer products with no strict requirements for service life and reliability.
3.2 IPC Class 2: Dedicated Service Electronic Products
Core Definition: Applies to dedicated service electronic products requiring high-reliability operation, long service life and uninterrupted service. It is the most widely used acceptance class in the global electronic manufacturing industry. On the premise of ensuring the long-term stable operation of the product, this class only allows a small number of non-critical defects that do not affect the service life and electrical performance of the product.
Quantitative Technical Requirements:
- Formulate strict control standards for electrical performance, dimensional accuracy and process consistency
- Zero tolerance for key defects that affect service life (such as hole wall fractures, inner layer separation, pad lifting)
- The tolerance for appearance defects is significantly lower than Class 1, only allowing slight appearance flaws in non-critical areas (copper foil notches ≤5% of line width)
- Copper foil thickness tolerance: ±10%; Hole wall plating thickness: ≥20μm; Impedance tolerance: ±10%
- Required to pass basic environmental adaptability tests (-20℃~+85℃ temperature cycling)
Typical Application Scenarios: Household appliances such as TVs, refrigerators and air conditioners, commercial computers, laptops, communication terminals, industrial control auxiliary machines, non-safety level automotive electronic components, and other electronic products with clear requirements for long-term stable operation.
3.3 IPC Class 3: High-Reliability High-Performance Electronic Products
Core Definition: The highest acceptance class in the civil PCB field, applicable to high-reliability electronic products requiring continuous high-performance operation, zero downtime tolerance, and adaptability to extreme operating environments. This class has formulated the strictest full-process process control and acceptance standards, requiring the product to ensure normal operation at any time when needed, and no functional failure even in extremely harsh environments.
Quantitative Technical Requirements:
- Implement the strictest process control standards in the whole process, with zero defect control for key dimensions, electrical performance and interconnection reliability
- Mandatory full-item reliability testing, including -55℃~+125℃ temperature cycling, thermal shock, mechanical vibration, long-term aging, salt spray testing, etc.
- Zero tolerance for all defects that may affect product reliability, covering full-dimensional acceptance of appearance, structure and electrical performance
- Copper foil thickness tolerance: ±5%; Hole wall plating thickness: ≥25μm; Impedance tolerance: ±5% (±3% for high-end customization)
- 100% full inspection of all key parameters, with complete inspection records retained
Typical Application Scenarios: Medical life support systems, aerospace electronic equipment, military defense equipment, vehicle safety level ADAS systems, industrial core control systems, server motherboards, core equipment of communication base stations, and other key electronic systems with extreme requirements for reliability.
4. Special High-Reliability Class: IPC-6012DS Class 3A Aerospace & Military Avionics Grade
4.1 Class Definition
IPC-6012DS Class 3A is the highest level PCB acceptance specification formulated for extremely harsh application scenarios such as aerospace, military avionics, and missile weapon systems. It is the strictest acceptance class in the global PCB manufacturing industry. There is no officially defined "IPC Class 4" in the industry, and Class 3A is recognized as the highest level control standard in the industry.
4.2 Core Technical Requirements
- Implement ultra-strict control standards for the whole process far exceeding Class 3, requiring the product to maintain continuous and stable operation in critical environments such as outer space, extreme high and low temperatures (-65℃~+150℃), strong radiation, and strong vibration
- Mandatory full-process traceability management, with complete records and verification data for every process from raw material incoming inspection to finished product delivery, traceable to single-batch raw materials
- Formulate exclusive aerospace-level specifications for raw materials, processes and reliability testing, requiring the product to be close to zero defects, with significantly higher manufacturing costs than conventional classes
- Mandatory aerospace-specific testing: including space radiation testing, ultra-high vacuum testing, thermal vacuum cycling testing, etc.
4.3 Typical Application Scenarios
Satellite-borne electronic systems, military airborne avionics equipment, missile guidance systems, deep space exploration equipment, and other high-reliability electronic systems applied in extreme environments.

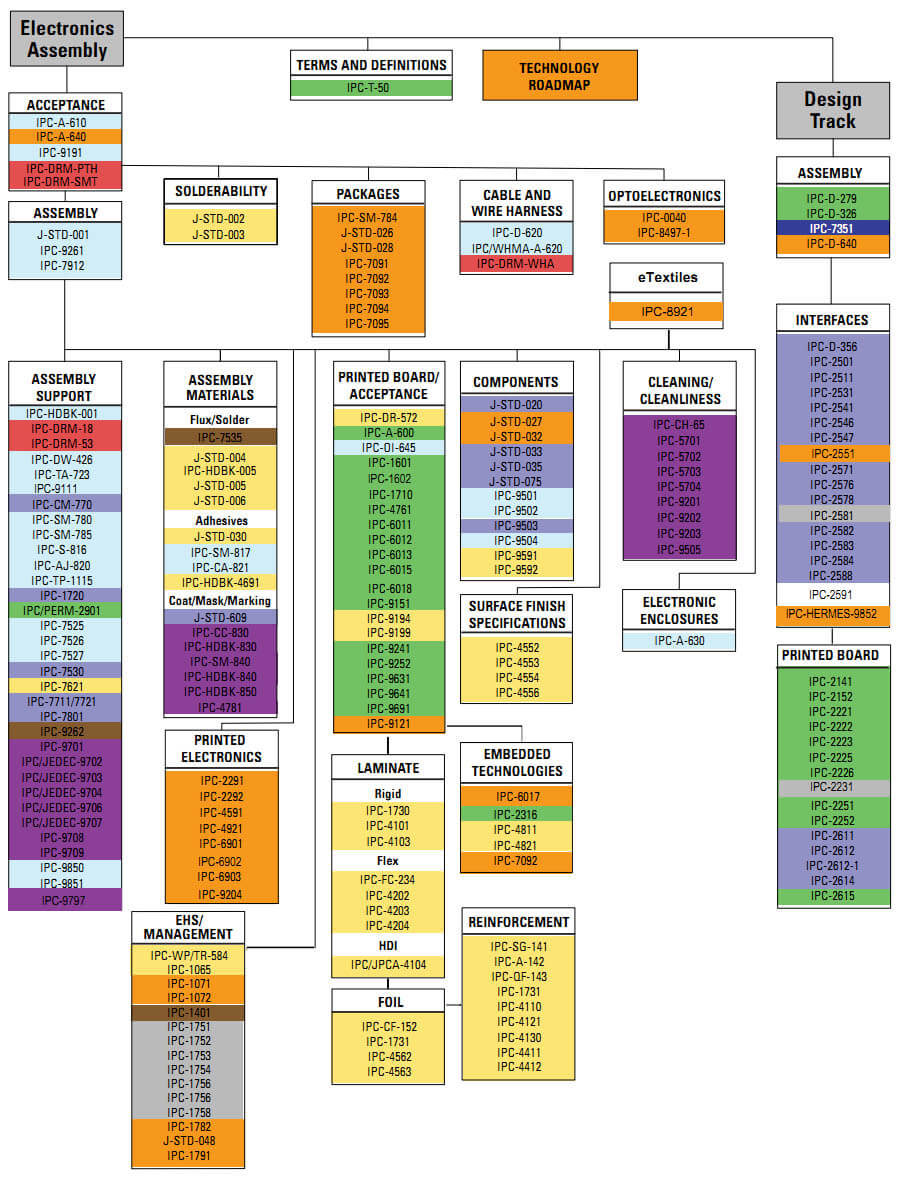

5. Core Supporting IPC Standard System for Full PCB Lifecycle
In addition to the core acceptance class specifications, IPC has established a complete standard system covering the entire PCB industry chain, which forms supporting control requirements with the acceptance classes. The core commonly used standards in the industry are as follows:
| Standard Number |
Full Standard Name |
Core Application Scope |
Association with Acceptance Classes |
| IPC-2221 |
Generic Standard on Printed Board Design |
General specifications for PCB schematic and layout design, the basic standard for all PCB designs |
Different classes correspond to different design rule requirements (such as line width/spacing, via size) |
| IPC-2581 |
Generic Requirements for Printed Board Design Data Exchange |
Standardized exchange format for PCB design and manufacturing data, a new generation data standard replacing traditional Gerber files |
High-class products mandatorily require the use of IPC-2581 format to ensure data integrity |
| IPC-4101 |
Specification for Rigid Printed Board Base Materials |
Performance requirements, test methods and acceptance standards for PCB substrates |
Class 3/3A products require the use of high-TG, low-CTE dedicated substrates |
| IPC-6012 |
Specification for Rigid Printed Boards |
Full-process performance requirements and acceptance standards for rigid PCB manufacturing, used in conjunction with IPC-A-600 |
Defines the manufacturing technical requirements and acceptance criteria for the three classes |
| IPC-A-600 |
Acceptability of Printed Boards |
Visual acceptance standard for the appearance and performance of bare PCB, the industry's general inspection basis |
Specifies in detail the types and degrees of defects allowed for different classes |
| J-STD-001 |
Requirements for Soldering of Electrical and Electronic Assemblies |
Material, process and acceptance standards for PCB assembly soldering, the core specification for PCBA manufacturing |
Different classes correspond to different soldering quality requirements and inspection standards |
| IPC-A-610 |
Acceptability of Electronic Assemblies |
Visual acceptance standard for PCBA assembly, used in conjunction with J-STD-001 |
Defines the assembly defect acceptance criteria for the three classes |
| IPC-TM-650 |
Test Methods Manual for Printed Boards |
Standard test methods for the performance and reliability of PCB raw materials and finished products |
All test items for all classes must follow the methods specified in this manual |
| IPC-7351 |
Generic Requirements for Surface Mount Design and Land Pattern Standard |
General specifications for PCB land pattern design of surface mount components |
High-class products require strict compliance with this standard to ensure soldering reliability |
| IPC-6013 |
Specification for Flexible Printed Boards |
Full-process performance requirements and acceptance standards for flexible PCB manufacturing |
Corresponding to the three acceptance classes for flexible boards |
| IPC-6018 |
Specification for High Frequency/Microwave Printed Boards |
Full-process performance requirements and acceptance standards for high-frequency microwave PCB manufacturing |
Special acceptance specification for high-frequency products |
6. Implementation Requirements of IPC Classes in Full PCB Lifecycle
6.1 Design Phase
- The IPC acceptance class corresponding to the end application scenario must be clearly defined at the initial stage of product design, and all design parameters must match the specification requirements of the corresponding class
- Adopt EDA design tools compliant with IPC standards, strictly follow design specifications such as IPC-2221 and IPC-7351, and complete DFM (Design for Manufacturability) audit simultaneously to ensure that the design scheme matches the manufacturing process capability of the corresponding class
- Design parameters such as critical signals, power supply and impedance must meet the reliability requirements of the corresponding class, and SI/PI/EMC simulation verification must be completed simultaneously for high-class products
- Class 3/3A products require special reliability design, including thermal design, vibration design, anti-corrosion design, etc.
6.2 Manufacturing & Assembly Phase
- Before production, the corresponding process control scheme, inspection standard and test plan must be formulated according to the selected IPC class, and SPC (Statistical Process Control) is implemented in the whole process
- Raw materials, production equipment and process parameters must fully match the standard requirements of the corresponding class, and exclusive process control and traceability systems must be implemented for high-class products
- The soldering process strictly follows the J-STD-001 standard, and the assembly acceptance implements the specification requirements of the corresponding class in IPC-A-610
- Class 3A products require production in clean rooms, and operators need to undergo special training and certification
6.3 Inspection & Acceptance Phase
- Full inspection is strictly implemented in accordance with the acceptance standards corresponding to the selected IPC class, including visual inspection, dimensional measurement, electrical performance testing, and reliability verification
- Inspection items, sampling standards, and qualification rules must fully comply with the requirements of the corresponding IPC standards, and complete inspection records and test reports must be retained
- The supplier and the buyer must clearly agree on the IPC acceptance class before signing the order to avoid subsequent quality disputes
- Class 3 products need to provide test reports from third-party authoritative institutions, and Class 3A products need to provide full-process traceability documents
7. Clarification of Common Industry Misconceptions
-
Misconception: The higher the IPC class, the better the product quality
Clarification: IPC classes are quality requirements matched with application scenarios, not absolute quality levels. Over-selecting high classes will significantly increase manufacturing costs, and should be reasonably selected according to the reliability requirements of end products.
-
Misconception: IPC Class 3 includes all requirements of Class 2
Clarification: The three classes are parallel classification systems formulated for different application scenarios, not inclusive relationships. Class 3 has stricter reliability requirements, but the requirements for some non-critical parameters are different from Class 2.
-
Misconception: All PCB factories can produce Class 3 products
Clarification: Class 3 products require factories to have strict process control capabilities, advanced testing equipment and professional technical teams. Only a few high-end PCB manufacturers have the ability to stably mass-produce Class 3 products.
