High-Frequency PCB
For designs where frequency-related electrical behavior is central to the prototype path.
Explore high-frequency capabilityPCB Prototyping / Development Stage
PCB Prototype Service for Design-to-Board Decisions
A pcb prototype service helps turn design files into a board that engineers can inspect, test and discuss. Work with a prototype pcb manufacturer when your next decision depends on board form, assembly scope or early design feedback.
0.10-8.0 mmListed 1/2-layer thickness
4-32 layersHigh-frequency mixed pressure
2-4 weeksReference customization window

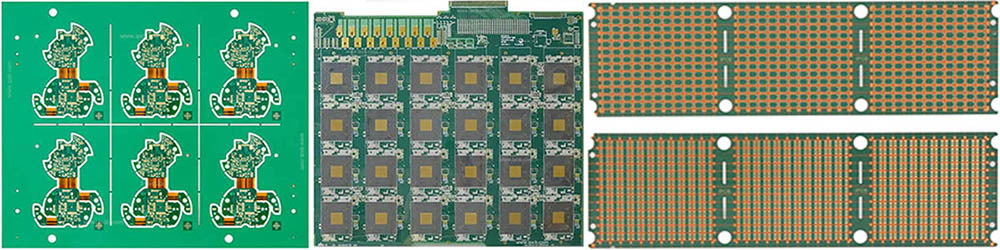

Prototype panels for early board review, testing and assembly planning.
One service, several distinct stages
A bare board, a populated assembly and an engineering discussion are related, but they are not the same deliverable. Separating the stages keeps your prototype request precise.
Service Boundary
From Design Files to a Usable Board
The right prototype scope depends on what your team needs to inspect next: the board itself, the assembled circuit or the questions between them.
1
PCB Fabrication
Creates the physical printed circuit board with its substrate, copper features, holes, layers, solder mask and surface finish.
2
Component Sourcing
Brings the required parts into the prototype path when the board needs to move beyond a bare-board review.
3
SMT and Through-Hole Assembly
Adds surface-mount or through-hole components so the sample can be evaluated as an assembled board.
4
Engineering Support
Helps connect design information with manufacturable board and assembly questions without turning every project into the same fixed package.
Board Form and Technical Scope
Choose the Board Form Before the Quote
Start with the physical and electrical role of the board, then confirm layer, thickness and assembly requirements with the project files.
Rigid-Flex PCB
For assemblies that combine rigid sections with flexible areas and need the board form reviewed early.
Explore rigid-flex capabilityMultilayer PCB
For denser routing and higher-function designs where layer structure becomes a key prototype decision.
Explore multilayer capabilityFlex PCB
For projects where bendable sections, space constraints or product packaging affect the first physical sample.
Discuss a flex prototypeProject Conversation
Bring the Next Decision Into Focus
A useful prototype conversation starts with the decision your team needs the sample to support, not only the number of boards.
Board form
Share whether the design is standard, high-frequency, rigid-flex, flex or multilayer.
Build scope
Clarify whether you need fabrication only, component sourcing, SMT, through-hole assembly or a combination.
Technical range
Include target layer count, thickness, finished size and any special electrical or mechanical constraints.
Project stage
State whether the samples support design review, early testing, fit checks, internal discussion or presentation.
What the sample should help you decide
Keep the prototype purpose visible as the scope is discussed.
DevelopTurn design intent into a physical reference.
TestInspect fit, function and early assumptions.
PresentMake the product direction easier to review.
Practical Reading
Three Decisions to Clarify Before Production
These Maxipcb articles add context around service boundaries, prototype testing and the presentation value of custom board samples.
Fabrication or Assembly: Which Stage Do You Need?
Separate the bare-board step from component handling, SMT, through-hole work and engineering support before you describe the deliverable.
Read the service-boundary articleWhat a Prototype Can Tell the Development Team
Use a physical board to compare design intent with fit, function and early testing while the project can still change direction.
Read the development-testing articleWhen a Board Sample Needs to Communicate
A custom sample can support design validation, internal alignment and early presentation without being mistaken for a final production release.
Read the sample-presentation articlePrototype Questions
PCB Prototype FAQ
What does the PCB prototype service include?
PCB prototype work can cover fabrication, component sourcing, SMT, through-hole assembly and engineering support. Confirm the exact combination needed for your board and project stage when you contact Maxipcb.
Which board forms can be considered for a prototype?
The page names high-frequency PCB, rigid-flex PCB, flex PCB and multilayer PCB prototyping. The right path depends on the electrical, mechanical and layer requirements of your design.
What thickness range is listed for PCB prototypes?
The listed range is 0.10-8.0 mm for one- and two-layer boards, and 0.15-8.0 mm for multilayer boards. Confirm the target build against the final design data.
What is the minimum finished board size shown?
A minimum finished board size of 0.5 x 1.0 mm is shown for this service. Very small or unusual outlines should be reviewed with the engineering team before production planning.
How are PCB prototypes used during product development?
A prototype gives teams a physical board for design review, early testing, fit checks, internal discussion and sample presentation before a larger production decision.
How long does a custom PCB prototype take?
Customization may take 2-4 weeks depending on material, complexity and quantity. The project schedule should be confirmed from the actual design and build scope.
