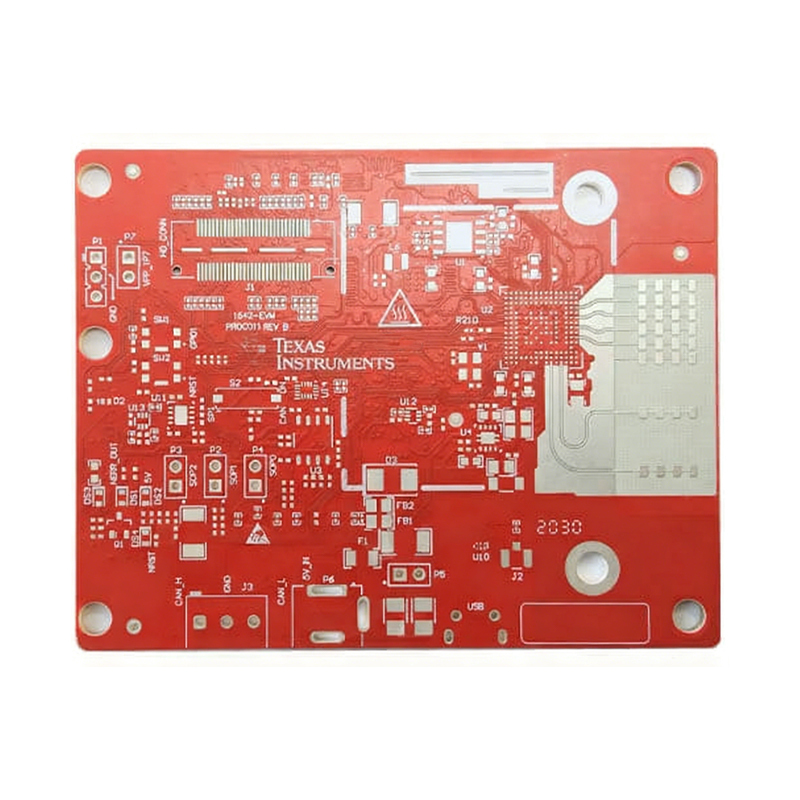

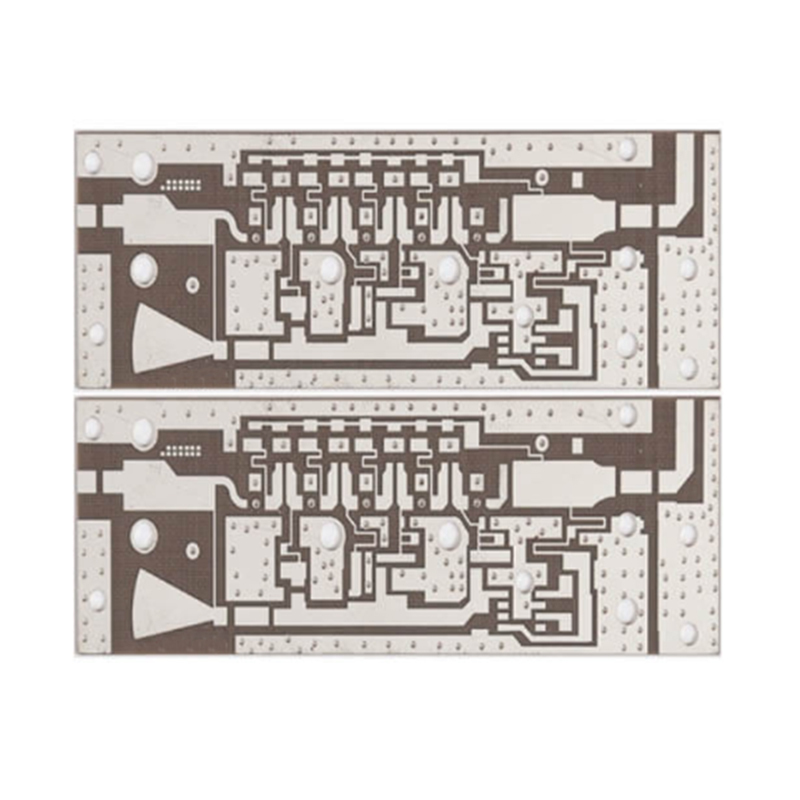

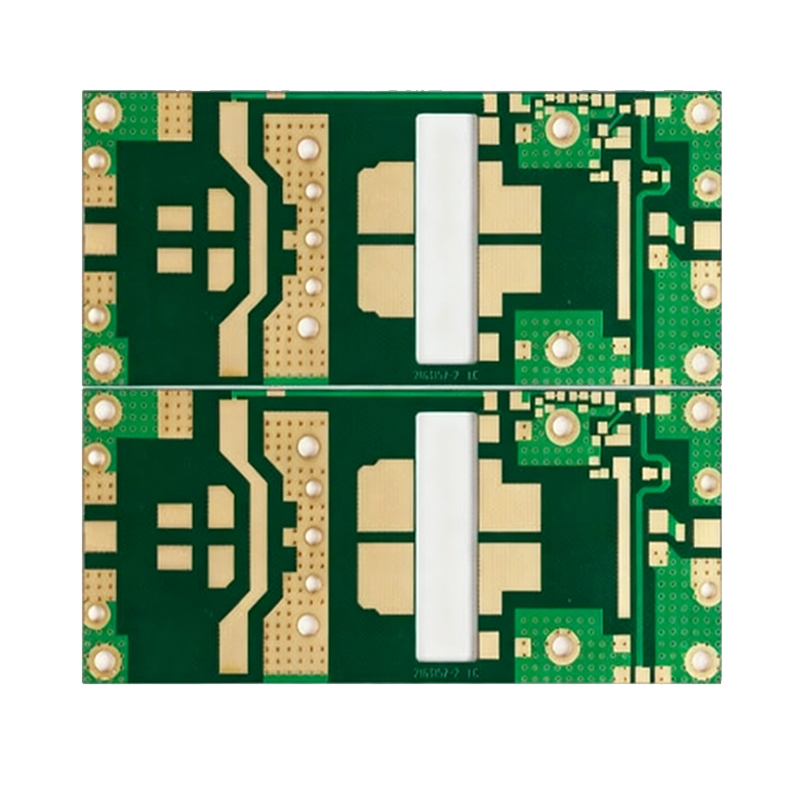

Radar PCB

Product Model: Radar PCB
Material: Teflon / Ceramic PCB
Quality Standard: IPC-6012
Dielectric Constant: 2.0-16
Layers: 1~70 layers
Board Thickness: 0.254mm - 6.0mm
Copper Thickness: H/H-1OZ
Surface Finish: Silver plating; optional gold plating and OSP
Application: Communication radar PCB, detection radar PCB

  • Radar PCB
  • Radar PCB
  • Radar PCB
  • Description

  • Data Sheet

Product Description

Targeted Use for Advanced Radar Systems

The Teflon Radar PCB is engineered primarily for developers and manufacturers of radar electronic systems requiring high reliability and precision. This solution addresses the needs of communication and detection radar system integrators by delivering consistent impedance control and low dielectric loss. It is focused on users who demand stable microwave and millimeter-wave signal transmissions, including automotive radar and industrial security applications. The integration of this PCB as part of pcb assembly services enables seamless system-level compatibility and performance optimization.

Technical Specifications and Manufacturing Precision

Featuring layers configurable from 1 to 70 with board thickness options ranging 0.254mm to 6.0mm, the Teflon Radar PCB incorporates PTFE Teflon and ceramic substrates with dielectric constants ranging from 2.0 to 16. Its silver plating surface finish—with optional gold plating and OSP—ensures robust connectivity. This product adheres to IPC-6012 standards, supported by rigorous manufacturing processes integral to a leading pcb assembly manufacturer. It provides measurable stability for microwave signals through low dielectric loss and highly precise impedance control, essential for high-frequency pcb solutions.

Industry Applications Demonstrating Real-World Value

Designed for applications across communication radars, detection systems, and advanced automotive millimeter-wave radar modules, the Teflon Radar PCB supports complex phased array radar platforms and surveillance equipment. Its compliance with industry standards boosts both reliability and electromagnetic compatibility for critical radar electronic assemblies. By leveraging this product in the radar supply chain, enterprises obtain scalable, high-performance pcb solutions that enhance detection accuracy and system operational efficiency across diverse sectors such as automotive safety, security, and telecommunications.


Product Advantages

Structural and Design Benefits of Advanced Teflon Radar PCB

The design of this Teflon Radar PCB incorporates modular layer configurations adaptable to complex radar circuitry and precision electromagnetic environments. Its material composition of PTFE Teflon and ceramic substrates allows for customizable dielectric constants, vital for impedance matching in high-frequency pcb solutions. The inclusion of silver plating with optional gold plating or OSP finishes ensures corrosion resistance and connectivity integrity. By partnering with a professional pcb assembly manufacturer, users benefit from integrated manufacturing and design processes that support prompt adjustments and scalability through advanced pcb prototype service offerings.

Performance Benefits Enhancing Usability and Reliability

High signal integrity is assured through minimal dielectric loss and tightly controlled impedance values across all supported layer counts and board thickness variations. These characteristics translate into operational stability and responsiveness in sensitive radar signal processing applications. The product’s compatibility with established quality standards under IPC-6012, along with precision craftsmanship from a trusted pcb assembly manufacturer, guarantees repeatable performance for demanding radar system requirements. Its use streamlines the deployment of customized radar electronic solutions featuring efficient integration within wider pcb assembly services workflows.

Radar PCB is a specialized high-frequency substrate tailored for radar electronic equipment, commonly deployed in communication radar, detection radar, and millimeter-wave radar systems. Currently, millimeter-wave radar applied in automotive ADAS has maintained rapid iterative development and large-scale commercial adoption.
Radar equipment requires high-performance high-frequency PCB materials with precisely controlled dielectric constant (DK) and dissipation factor (DF) throughout manufacturing. Maxipcb selects high-frequency base materials with a DK range of 2 to 16 for radar PCB mass production, covering PTFE Teflon substrate, ceramic substrate and hydrocarbon composite substrate to satisfy diverse high-frequency and microwave working conditions.

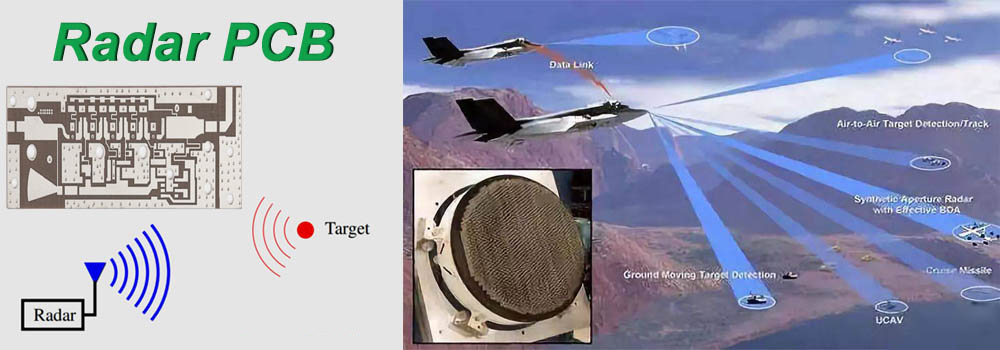

Radar operates by transmitting electromagnetic waves via antennas. After reflecting off target obstacles, the echoed signals are captured and analyzed. By calculating the propagation time of electromagnetic waves, radar achieves accurate measurement of target distance, position and moving speed. A complete primary radar system comprises four core units: a transmitter for electromagnetic wave generation, an antenna for signal radiation and echo reception, a receiver for weak signal amplification, and a display module for target information presentation. When electromagnetic waves hit a target, diffused reflection occurs in all directions. The antenna collects backscattered signals and transmits data to the receiver, which identifies target characteristics and calculates spatial parameters. Featuring all-weather, high-precision detection capability, radar is widely applied in military defense, aviation, marine navigation, meteorological observation and other key fields.

Radar Classification

Radar products are divided into military and civil grades. Air defense radar is used for searching, monitoring and identifying aerial targets, including early warning radar, guidance radar and low-altitude detection radar. Marine warning radar is mainly installed on ships, coastal and island facilities to monitor surface targets.
By functional attributes: Early warning radar, guidance radar, fire control radar, altitude measurement radar, blind landing radar, terrain matching radar, imaging radar, meteorological radar, etc.
By working system: Conical scanning radar, monopulse radar, passive/active phased array radar, pulse compression radar, frequency agile radar, synthetic aperture radar, multi-static radar, beyond visual range radar and other types.
By working wavelength: Meter-wave, decimeter-wave, centimeter-wave, millimeter-wave and infrared lidar.
By measurement parameters: Two-coordinate radar, three-coordinate radar, velocity measurement radar, altitude measurement radar and guidance radar.





Phased Array Radar Principle

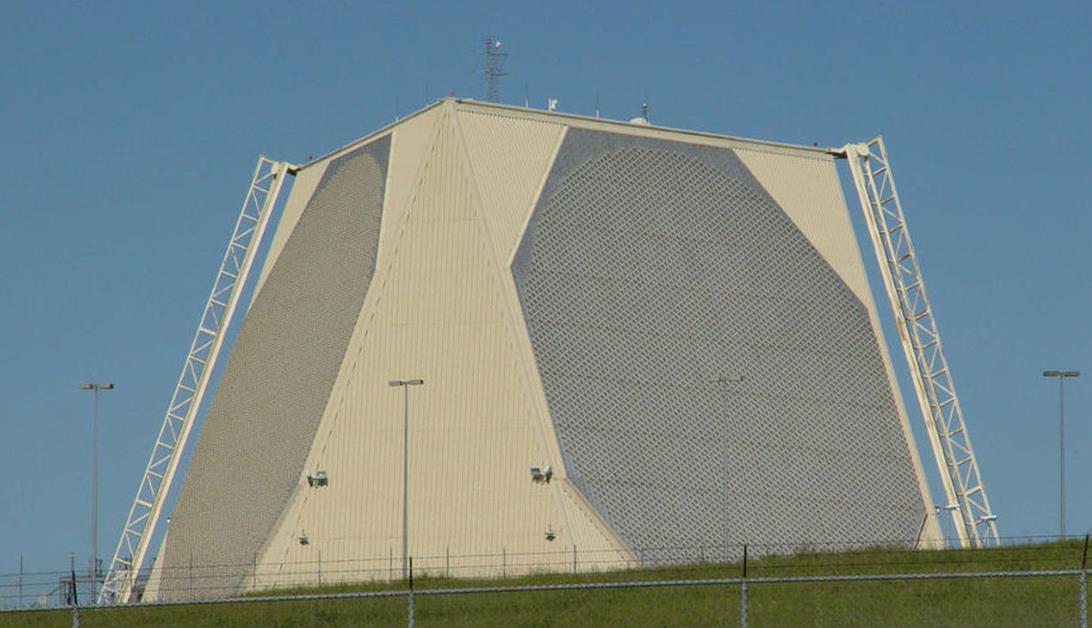

The antenna array of phased array radar consists of hundreds to tens of thousands of regularly arranged radiation and receiving units. The quantity of array units is determined by radar functional requirements. Combined with electromagnetic wave coherence theory, computer-controlled phase shifters adjust the current phase of each unit to realize beam electronic scanning without mechanical rotation. Each antenna unit is equipped with phase regulators to produce directional radiation beams. More array units deliver higher scanning precision and multi-angle spatial detection capability.
Phased array radar is categorized into Passive Electronically Scanned Array (PESA) and Active Electronically Scanned Array (AESA). PESA technology is mature and cost-efficient, widely equipped on vessels and medium-sized aircraft since the 1980s. AESA features superior comprehensive performance and technical expandability, and has been widely applied to advanced fighter jets and shipborne systems since the late 1990s.
Modern warfare and civil detection scenarios rely heavily on phased array radar and high-precision positioning technology. Related ranging systems include missile test ranges, space launch sites and conventional weapon test bases, covering long-distance monitoring, orbit tracking and target characteristic identification.

Radar PCB Design Difficulties

Radar PCB integrates digital signals, analog circuits and microwave RF modules, bringing high complexity to board layout and routing design, especially for hybrid assembly of RF and low-frequency components. Circuit boards with operating frequencies above 1GHz are classified as high-frequency radar PCBs, which need to withstand stable transmission of microwave high-frequency signals.
RF radar PCB design faces multiple technical bottlenecks. Cross-team design with inconsistent file formats reduces R&D efficiency. Frequent structural adjustments are required for RF circuit matching. Isolated RF simulation fails to take overall board electromagnetic interference into account, resulting in actual performance deviation. In addition, data conversion between RF simulation software and PCB design tools (such as DXF file adaptation) is prone to parsing errors. Manual modification easily causes dimensional deviation, which further leads to RF circuit failure and unstable mass production quality.

Importance of Professional Radar PCB Manufacturers

Radar PCB is extremely sensitive to electromagnetic interference, impedance fluctuation and signal noise. Qualified manufacturers adopt standardized production processes to control all interference factors and ensure long-term stable operation of high-frequency circuits. Inferior boards are prone to signal attenuation, aging damage and performance failure in complex high-frequency environments, making professional high-frequency PCB suppliers a key factor for radar product reliability.

Advantages of Maxipcb Radar PCB Manufacturing

Maxipcb has over ten years of rich experience in high-frequency radar PCB production, with professional technical mastery of various radar-grade high-frequency substrate processing techniques. The company provides customized one-stop radar PCB solutions for global customers, adheres to strict quality control standards, and builds long-term stable cooperative partnerships with reliable product performance and comprehensive after-sales services.


Core Application Scenarios

Automotive ADAS Millimeter-Wave Radar

Radar PCB serves as the core substrate of vehicle-mounted millimeter-wave radar for ADAS. With low dielectric loss and precise impedance control, it guarantees signal integrity during high-frequency detection, supporting obstacle recognition, collision avoidance and assisted driving functions. Multi-layer customized design adapts to compact vehicle electronic layout, meeting automotive-grade safety and environmental reliability standards.

Military & Civilian Surveillance Radar

Aerospace, national defense and civil air traffic monitoring radars require circuit boards adaptable to extreme working conditions. Maxipcb high-frequency radar PCB adopts multi-layer composite structure and high-spec surface treatment, which is compatible with phased array antenna and long-range detection systems. It excels in electromagnetic compatibility and anti-interference performance, fully compliant with IPC industry specifications.

FAQ


Main substrate materials
Maxipcb Radar PCB adopts high-frequency specialized materials including PTFE Teflon, ceramic and hydrocarbon substrates, with strictly calibrated DK and DF parameters to reduce high-frequency signal loss.

Customization capability
Custom layer counts (1–70 layers) and board thickness (0.254 mm–6.0 mm) are supported to meet customized demands of complex radar systems and mixed RF circuit designs.

Quality control standard
Production complies with IPC-6012 international standards, with ISO9001 and RoHS certification. The whole process controls impedance consistency, electromagnetic shielding and high-frequency stability.

Surface treatment options
Optional processes include silver plating, hard gold plating and OSP, which optimize solderability, corrosion resistance and high-frequency electrical performance for different radar application scenarios.

What base materials are used in your Teflon Radar PCB?
We manufacture Teflon Radar PCBs using high-frequency substrates such as PTFE Teflon and ceramic materials. These materials ensure a stable dielectric constant and low loss, essential for precise radar signal transmission and reliable performance in demanding electromagnetic environments.

Can I customize the number of layers and thickness of the Radar PCB?
Yes, we offer custom configurations supporting 1 to 70 layers and thicknesses from 0.254 mm up to 6.0 mm. This flexibility allows you to create complex radar circuits tailored to your application's specific high-frequency requirements.

Do you provide pcb assembly services for radar PCBs?
We offer comprehensive pcb assembly services alongside manufacturing. Our expertise in high-frequency PCB production ensures assembled radar PCBs meet strict impedance and signal integrity standards required for advanced radar modules.

How do you ensure the quality and reliability of your high-frequency PCB products?
We adhere strictly to IPC-6012 standards and maintain ISO9001 certification throughout manufacturing. Using precision testing equipment and experienced technical staff, we guarantee that each PCB meets customer specifications and industry norms for performance and durability.



Product Name: Radar PCB

Material: Teflon / Ceramic PCB

Quality standard: IPC-6012

Dielectric constant: 2.0-16

Layers: 1 Layer - 70 layer

Thickness: 0.254mm - 6.0mm

Copper thickness: H/H-1OZ

Surface technology: Silver(Can choose Gold or OSP)

Application: Communication radar PCB, detection radar PCB
