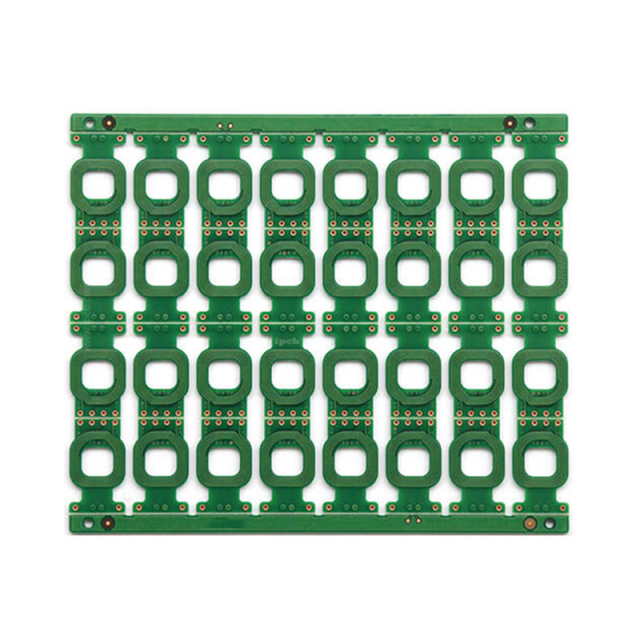

Wireless Charging PCB

Product Model: Wireless Charging PCB
Base Material: S1000-2
PCB Layers: 6 Layers
Color: Green solder mask, white silkscreen
Finished Thickness: 1.2mm
Copper Thickness: 2OZ
Surface Treatment: Immersion Gold, gold deposition ≥ 2μm
Hole Wall Copper Thickness: 35μm
Minimum Aperture: 0.4mm
Application: Wireless charging products

  • Wireless Charging PCB
  • Description

  • Data Sheet

Wireless charging transmits electric energy through the magnetic field generated between coils, eliminating the need for traditional charging cables. Featuring simple operation and high convenience, wireless charging technology has been widely applied in daily electronic products.
In the structural design of mobile phone wireless charging modules, the complete system consists of a printed circuit board (PCB), electronic components soldered on the PCB, and charging coils mounted and welded on the circuit board.




Wireless charging

With technological advancement, consumers increasingly pursue ultra-thin, lightweight and miniaturized electronic devices and charging accessories. Most conventional wireless charging PCBs on the market are designed with multiple external connection ports. However, due to the thin substrate design and densely arranged electronic components, additional connectors will inevitably increase the overall thickness of the PCB assembly, restricting the lightweight design of terminal equipment.

Model :  Wireless Charging PCB

Material :  S1000-2

Layer :  6Layers

Color : Green/White

Finished Thickness :  1.2mm

Copper Thickness :  2OZ

Surface Treatment :  Immersion Gold

Surface treatment : deposited gold ≥ 2U“

Copper thickness in hole : 35UM

Minimum aperture: 0.4mm

Application : Wireless charging PCB
