Throttle Position Sensor

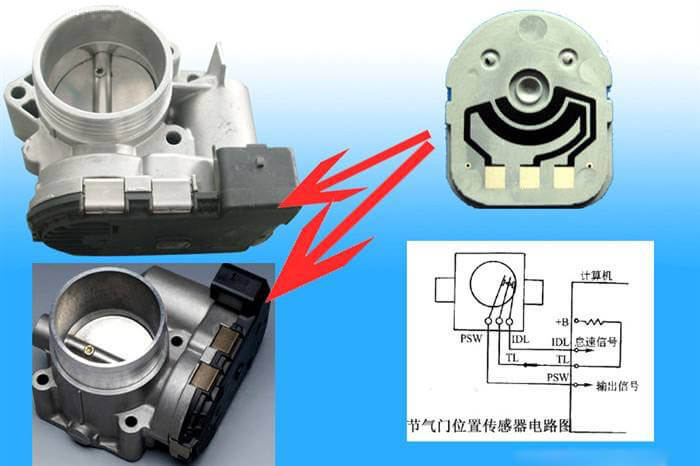

The throttle position sensor (TPS), alternatively defined as throttle opening detection unit or throttle control switch, serves as a core sensing module for engine status acquisition. This component adopts an integrated structure combining adjustable resistance elements and multi-channel switching units, and is rigidly assembled onto the throttle assembly. It is tasked with real-time acquisition and feedback of four major engine operating modes: idle state, load operation, acceleration output and deceleration adjustment. Relevant outline dimensions and internal structural layouts are presented in the schematic diagram.
The rotating shaft of the built-in variable resistor realizes synchronous linkage with the throttle valve assembly. Two sets of functional contacts are configured inside the sensor, namely full-open terminal and idle terminal. Under idle operating scenarios, the idle contact remains in closed state and feeds standard idle trigger signals to the vehicle electronic control system. Once the throttle opening changes and deviates from the idle interval, the idle contact will disconnect immediately. Meanwhile, analog voltage signals matching different opening angles will be output in real time.
The vehicle electronic control unit analyzes the collected voltage data to judge the current engine load level. By calculating the dynamic change rate of voltage signals within a fixed time frame, the system can accurately distinguish acceleration and deceleration operating scenarios. Combined with the above multi-dimensional operating state signals, the electronic control system can dynamically optimize fuel injection parameters and execute fuel supply cut-off logic as required, so as to realize precise energy consumption control.

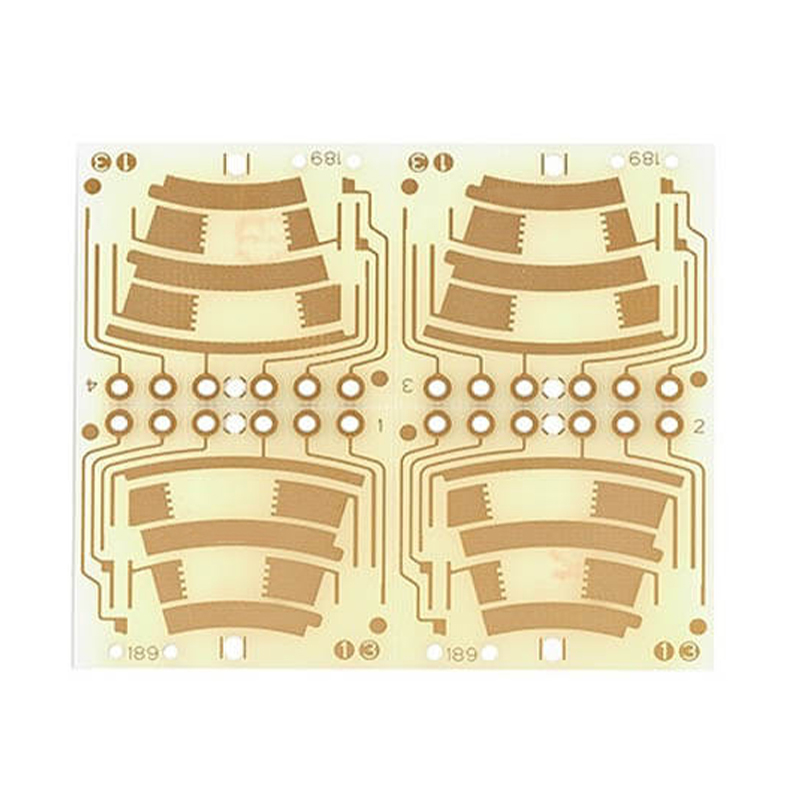

throttle position sensor
Main Functional Characteristics
Fuel Supply Precision Regulation
Engine operation covers four stable operating modes throughout the whole working cycle. The signal feedback from TPS provides accurate basis for fuel injection logic calibration. It effectively balance the power output response, and delivers sensitive and linear acceleration performance during accelerator operation.
Real-Time Operating Status Diagnosis
Dual-contact design is adopted for internal signal triggering. By switching the on-off state of independent contacts, the sensor completes effective identification of vehicle operating modes. It provides stable signal guarantee for coordinated operation of each electronic system, and further improves the overall operational stability and service life of the engine.
