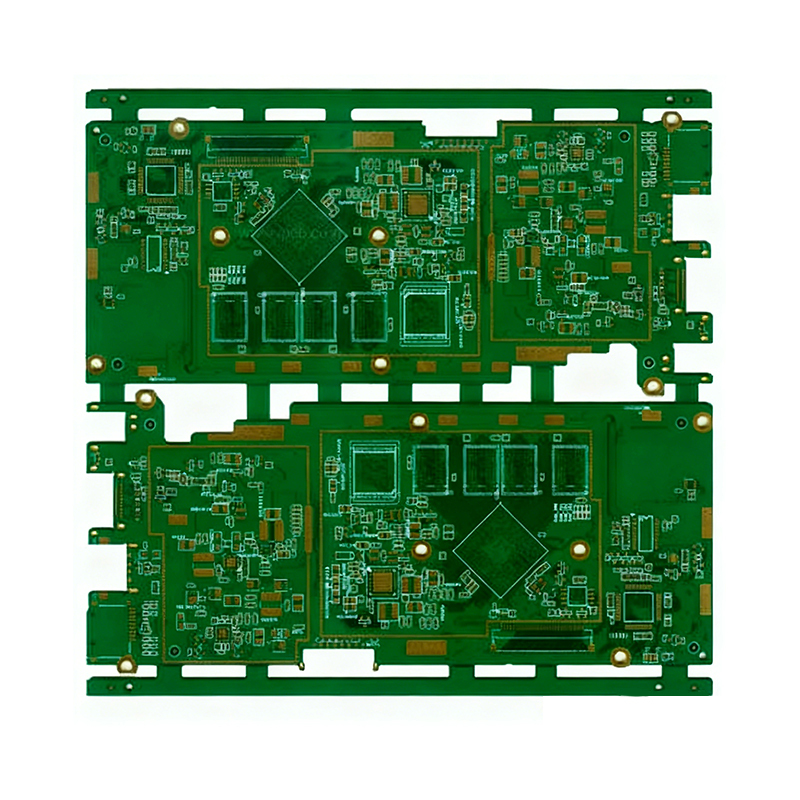

Product Model: Surveillance Camera PCB Board
Base Material: SY S1000-2 TG170 FR4
PCB Layers: 6 Layers
Copper Thickness: 1OZ
Finished Thickness: 1.2mm
Surface Treatment: Immersion Gold
Min Trace / Space: 3mil/3mil (0.075mm/0.075mm)
Minimum Aperture: 0.2mm (8mil)
Special Process: Blind and buried vias
Layer Structure: Custom blind-buried via design (optimized for 6-layer specification)
Application: Surveillance camera devices

  • Surveillance Camera PCB Board
  • Description

  • Data Sheet

Maxipcb is a professional manufacturer with 17+ years of dedicated experience in RF & high‑frequency PCB production in China. We deeply recognize that high‑performance RF materials directly determine circuit board stability and overall electrical performance.
Key indicators including RF microwave energy level, operating frequency, temperature range, current and voltage are strictly evaluated when selecting optimal substrates for high‑frequency PCB fabrication. Mastering the characteristics and application limits of various RF PCB materials is our core competency. A full range of high‑frequency substrates are kept in sufficient stock to support rapid lead time and on‑time delivery.
Our reliable product quality is backed by experienced R&D engineers and skilled production teams, who work closely with the QA department to ensure every PCB meets strict quality standards. We do not pursue superficial praise, yet continuous repeat orders fully prove customers’ long‑term recognition and satisfaction. Quality has always been our core corporate value and the foundation of sustainable business cooperation. We sincerely thank all partners who have accompanied us over the past 17 years, driving our continuous upgrading in production capacity, manufacturing processes and core RF PCB technology.

Surface Finishing

OSP, ENIG, Lead‑free HASL, Hard Gold Plating, Flash Gold, Immersion Tin, Immersion Silver, Electrolytic Gold

Production Capacity

Golden finger, heavy copper PCB, blind & buried via, impedance control, resin filled hole, carbon ink printing, backdrill, countersink, depth drilling, half plated hole, press‑fit hole, peelable blue solder mask, thick copper board, oversize PCB

High‑Frequency & RF Base Materials

Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870
Arlon, Isola, Taconic, PTFE F4BM, Teflon and hybrid high‑speed FR4 materials

Available Layers

2L / 4L / 6L / 8L / 10L / 12L / 14L / 16L / 18L / 20L / 22L / 24L / 26L / 28L / 30L

Dielectric Constant (DK)

2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2

Main Applications

Consumer Electronics, Military & Aerospace, Antenna & Communication Systems, High‑Power Equipment, Medical Devices, Automotive Electronics, Industrial Control, Cellular Handheld Devices, Wi‑Fi Antenna, Vehicle Telematics, Computing Hardware, Radar System, RF Power Amplifiers

Model : Surveillance Camera PCB Board

Material : SY S1000-2 TG170 FR4

Layer : 6Layers

Copper Thickness : 1OZ

Finished Thickness : 1.2mm

Surface Treatment : Immersion Gold

Trace/Space : 3mil/3mil(0.075MM/0.075MM)

Min Hole : 0.2mm(8mil)

Special Process : Blind and buried vias

Layer structure : 1-2,5-6,7-12

Application : Surveillance Camera PCB Board
