Name: Rogers RO4350B PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing

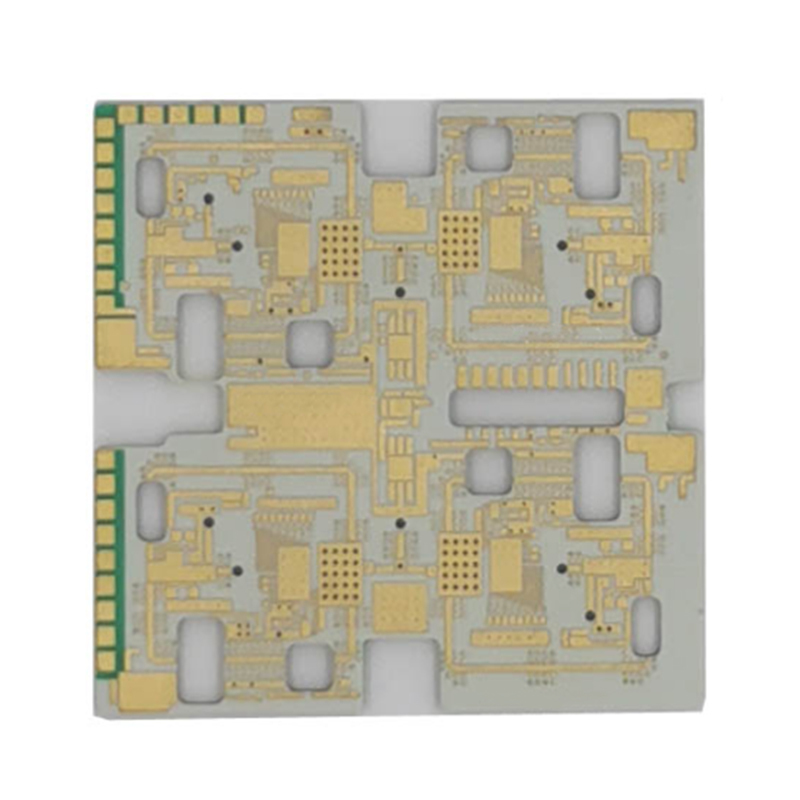

Rogers RO4350B PCB

Product Model: Rogers RO4350B High Frequency Microwave Circuit Board

Dielectric Constant (DK): 3.48±0.05

Layer Count: 2 Layers

Dielectric Thickness: 0.762mm (30mil)

Finished Thickness: 0.85mm

Base Copper Thickness: ½oz (17μm) HH/HH

Finished Copper Thickness: 1oz (35μm)

Surface Treatment: Immersion Gold

Application: Instrument PCB, radio frequency PCB, radar testing equipment PCB

Description
Data Sheet

1. Overview of Rogers RO4350B High-Frequency Microwave Circuit Material

Rogers RO4350B is a high-performance high-frequency microwave circuit material. Rogers is a well-known brand in the field of high-frequency materials, and RO4350B is its classic production model code for high-frequency microwave circuit materials. Specific parameters such as material thickness can be consulted for detailed information. It is mainly used in the fabrication of high-frequency microwave circuits, providing reliable support for high-frequency signal transmission.

2. Rogers RO4350B High-Frequency Microwave Circuit Fabrication Instructions

High-frequency microwave circuit materials commonly used in the factory include: Rogers series, Taconic series, high-frequency microwave circuit PCBs, Teflon, and polytetrafluoroethylene (PTFE) circuit boards.
Commonly stocked materials are Rogers 4000 series: RO4350B / RO4003C, which can ensure fast delivery for customer projects.
The delivery time of materials not in stock in the factory needs to be confirmed with the board supplier. For suppliers with inventory, the delivery time is 1-7 days; for materials without inventory, the delivery time shall be confirmed with the supplier separately.
All high-frequency microwave PCB materials can be mixed with FR4 board materials and PP (prepreg). The Rogers 4000 series, especially RO4350B, can perfectly synthesize FR4 composite boards with RO4350B PP, meeting the complex performance requirements of high-frequency circuits.

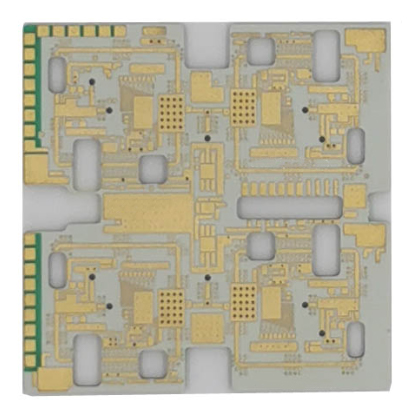

high frequency microwave circuit rogers RO4350B

3. Maxipcb Company Introduction

Maxipcb specializes in RF PCB manufacturing with more than 17 years of experience in China. We deeply understand how much the proper RF material affects the performance of the circuit board. Key parameters such as RF microwave energy levels, operating frequency, operating temperature range, current, and voltage are crucial when selecting suitable materials for high-frequency microwave circuit fabricatiorosier n. Familiarity with various high-frequency microwave circuit materials is one of our core strengths. Please refer to the following material list—we have sufficient stock of these materials to ensure fast delivery.

4. High-Frequency Microwave Circuit Materials

Maxipcb provides a comprehensive range of high-frequency microwave circuit materials, including:

Rogers series: RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870, etc.
Other high-performance materials: Arlon / Isola / Taconic / PTFE F4BM / Teflon material, etc.

5. Hybrid PCB Materials (Mixed Dielectric / Laminate)

To meet the complex performance requirements of advanced high-frequency microwave circuits, Maxipcb also provides customized hybrid PCB material (mixed dielectric/laminate) combinations, such as:

Rogers RO4350B + FR4 / RO4350B + IT180 / RO4003C + FR4 / RO3010 + FR4 / RO3003 + FR4 / RO3010 + FR4 etc.

6. Applications of High-Frequency Microwave Circuits

High-frequency microwave circuits are widely used in various fields, such as Consumer Electronics / Military/Space / High Power / Medical / Automotive / Industrial, etc.

Model：High Frequency Microwave Circuit Rogers RO4350B Factory

D K：3.48+/-0.05

Layer：2Layers microwave circuit

DielectricsThickness ：0.762mm(30mil)

Finished Thickness ：0.85mm

Material Copper Thickness ：½(17μm)HH/HH

Finished Copper Thickness ：1OZ(35μm)

SurfaceTreatment ：Immersion Gold

Application ：Instrument PCB, Radio Frequency PCB ,Radar Gauges PCB
