Rogers RO4350B and FR4 Hybrid press PCB

      Maxipcb Circuits Limited (Maxipcb®) specializes in the manufacturing of high-frequency circuit boards, microwave PCBs, double-sided and multilayer printed circuit boards. With rich professional experience in high-frequency and microwave PCB production, the company supports a wide range of applications including power dividers, couplers, power combiners, power amplifiers, communication base stations, 3G / 4G / 5G antennas, and radar microwave systems.

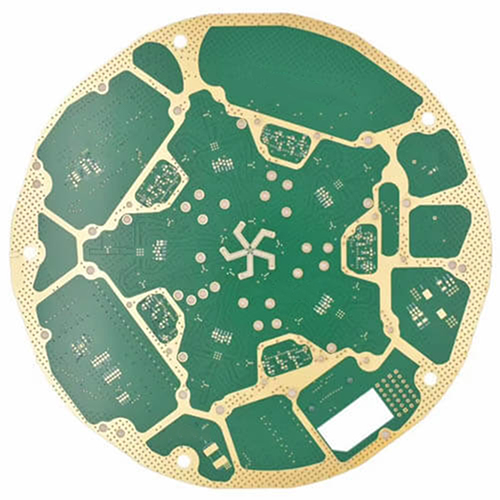

RO4350B hybrid PCB

It supplies substrates such as F4B composite material, PTFE (Teflon) boards, as well as high-frequency laminates from Rogers, Taconic and other well-known brands, together with standard FR4 and metal-based aluminum PCBs. Materials with dielectric constants ranging from 2.2 to 20 are available from stock, enabling fast and responsive prototype services for high-frequency and microwave PCBs.

Corporate Philosophy

Integrity, dedication, pragmatism, innovation

Adhering to the tenet of “relentless pursuit of excellence and dedicated service to customers”, Maxipcb has earned wide recognition from clients through reliable product quality, on-time delivery, responsive after-sales support and high professional standards.

The company provides a full range of high-frequency PCB solutions, including PTFE/Teflon boards, F4B-2 substrates, Rogers high-frequency plates, RF circuit boards, and 4-layer hybrid high-frequency PCBs combining Rogers materials. It also processes high-frequency laminates from Rogers and Isola.

Commonly used Rogers materials:

RO3006, RO4003, RO4350B, RO4533, RT5880, RO6002, RO6010

Commonly used Isola materials:

FR408, 370HR

---

High-Frequency PCB Processing Notes

Maxipcb supplies mainstream high-frequency PCB materials including the Rogers series, Taconic series, PTFE and Teflon-based microwave circuit boards.

Regular in-stock materials include Rogers 4000 series: RO4350B / RO4003C, with thicknesses of 0.254mm, 0.508mm and 0.762mm.

Lead times for materials not in stock will be confirmed with raw material suppliers. For materials available from inventory, the lead time is generally 1–5 working days.

All high-frequency substrates can be laminated and co-pressed with FR4 materials and prepregs. The Rogers 4000 series can be combined with FR4 and RO4350B prepregs to produce hybrid composite circuit boards, such as structures of 10mil RO4350B + 20mil RO4350B.

---

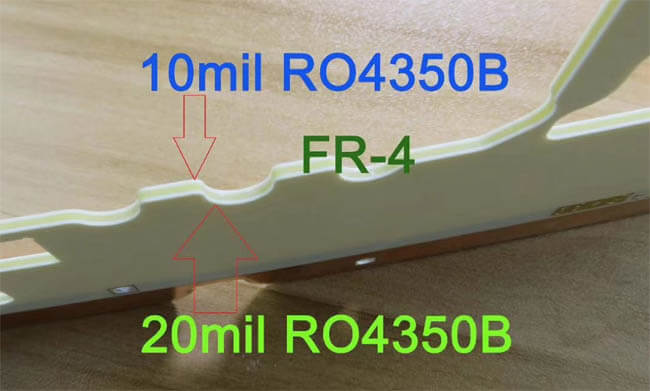

10mil RO4350B + 20mil RO4350B

Full Range of High-Frequency PCB Materials

1. Rogers High-Frequency Laminates

RO4003C, RO4350B, RO4360, RO4533, RO4535, RO4730, RO4232, RO4233, RO3003, RO3006, RO3010, RO3035, RO3203, RO3206, RO3210, RO3730, RO5780, RO5880, RO6002, RO3202, RO6006

2. Taconic High-Frequency Materials

LY-5A, TLY-5, TLY-3, HT1.5, TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLC-27, TLE-95, TLC-30, TPG-30, TLG-30, RF-30, TSM-30, TLC-32, TPG32, TLG-32, TLG-34, TPG35, TLG-35, RF-35, RF-35A, RF-35P, RF-41, RF-43, RF-45, RF-60A, CER-10

3. Arlon High-Frequency Materials

AD255C03099, AD255C06099, AD255C04099, AD300C03099, AD300C04099, AD300C06009, TC600, AD250C02055C, TC350, MCG300CG, DCL220, CUCLAD 217LX, CUCLAD 250GX, ARLON 55NT

4. Wangling & Taixing High-Frequency Materials

F4BK225, F4BK265, F4BK300, F4BK350, F4BM220, F4BM255, F4BM265, F4BM300, F4BM350

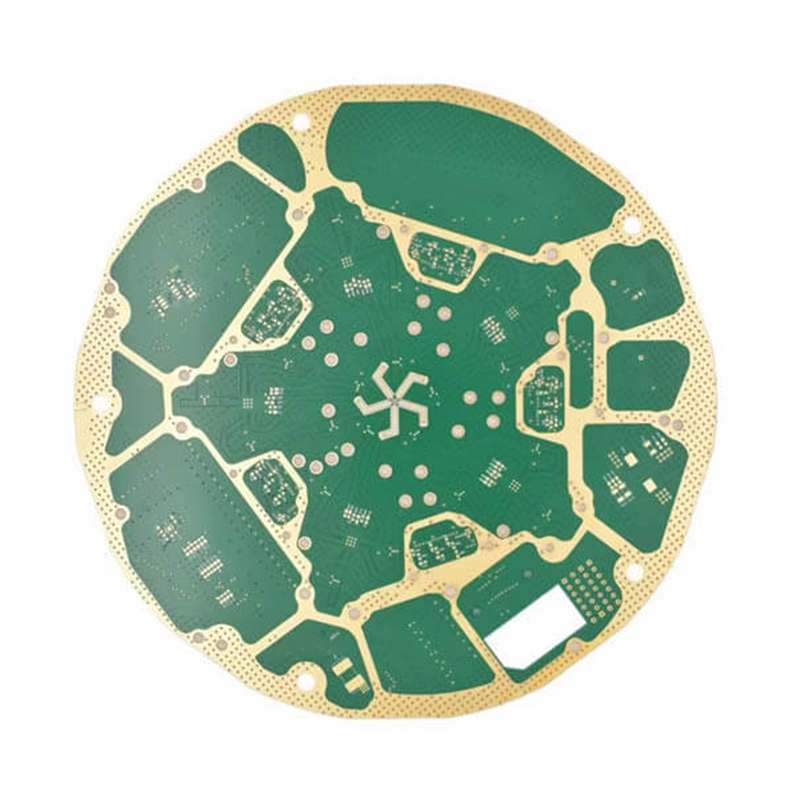

Model : Rogers RO4350B and FR4 Hybrid press PCB

Material: Rogers RO4350B+IT80A

DK:3.48

Layer: 4Layers

Finished Thickness: 1.2MM

Copper Thickness :0.5OZ/1OZ

Color : Green/White

Min Trace/Space : 4mil/4mil

Surfacet Treatment: lmmersion Gold

Application : Environmental testing instrument
