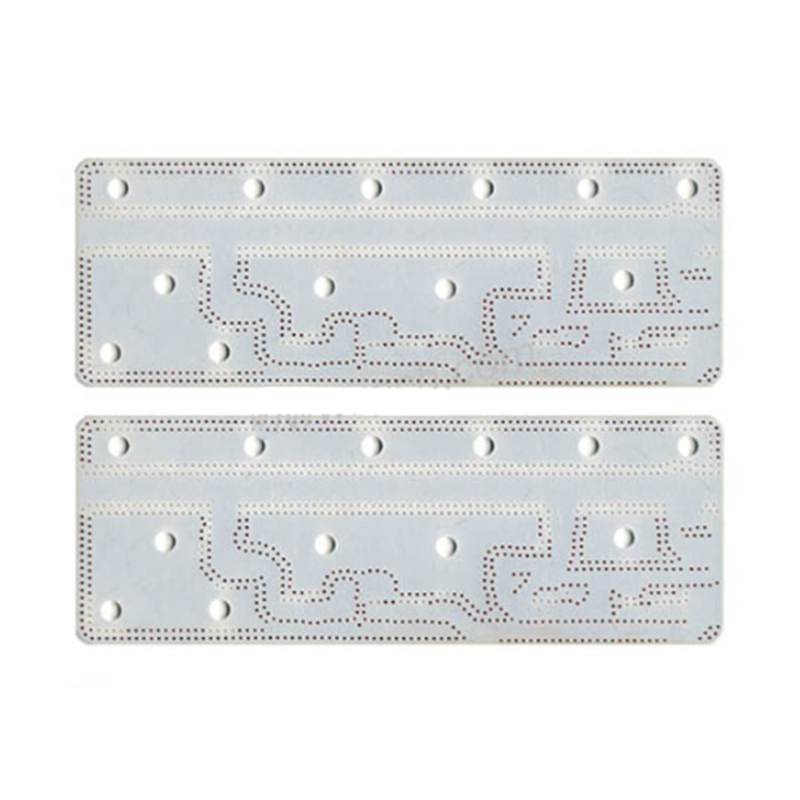

Name: Rogers PCB RO4350B Printed Circuit Board
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Real Project Display of Rogers RO4350B PCB

In practical engineering projects, Rogers RO4350B has been fully verified for its excellent performance. As a hydrocarbon/ceramic laminate, it features a stable dielectric constant (DK) of 3.48, which provides reliable support for high-frequency signal transmission. Its outstanding electrical and mechanical properties make it widely used in various high-frequency PCB projects, winning wide recognition from customers for its stability and cost-effectiveness.

2. Core Advantages of Rogers RO4350B PCB

Rogers RO4350B integrates multiple performance advantages, making it a preferred material for high-frequency RF/microwave PCBs. Its key advantages are as follows:

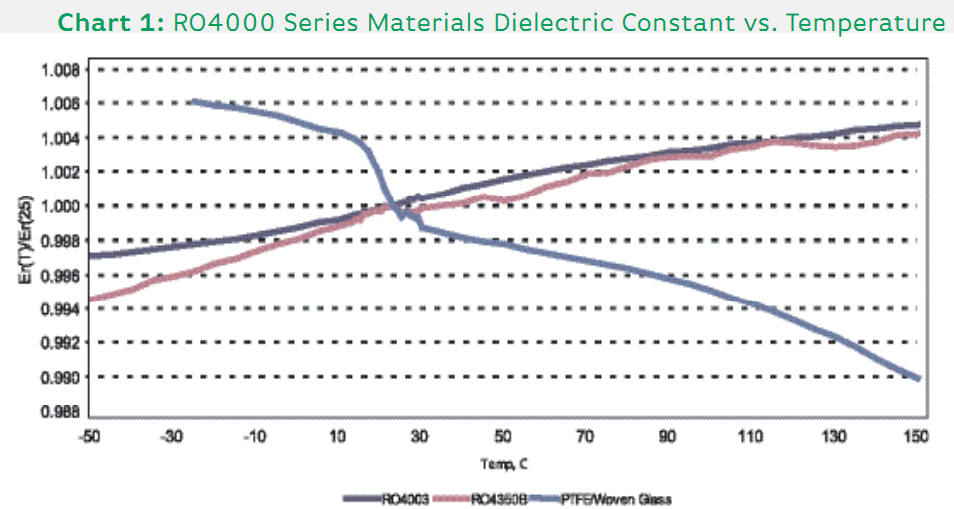

Low dielectric constant (DK) fluctuation with temperature: Maintains stable electrical performance in different working temperature environments, ensuring consistent signal transmission.
Low Z-axis thermal expansion coefficient: Enhances the reliability of plated through-holes (PTH) in multi-layer PCBs, reducing the risk of layer separation or PTH failure caused by thermal expansion mismatch.
Low internal expansion coefficient: Avoids board warpage during processing and use, ensuring the dimensional stability of the PCB and improving the accuracy of component mounting.
Low DK tolerance: Ensures consistent performance of batch products, facilitating mass production quality control and reducing performance deviations.
Stable electrical characteristics at different frequencies: Adapts to a wide range of high-frequency bands, meeting the diverse application needs of different high-frequency devices.
Easy for mass production and compatible with FR4 multi-layer mixing: It can be seamlessly mixed with FR4 materials for multi-layer PCB manufacturing, realizing cost savings while ensuring performance, and featuring high cost-effectiveness.

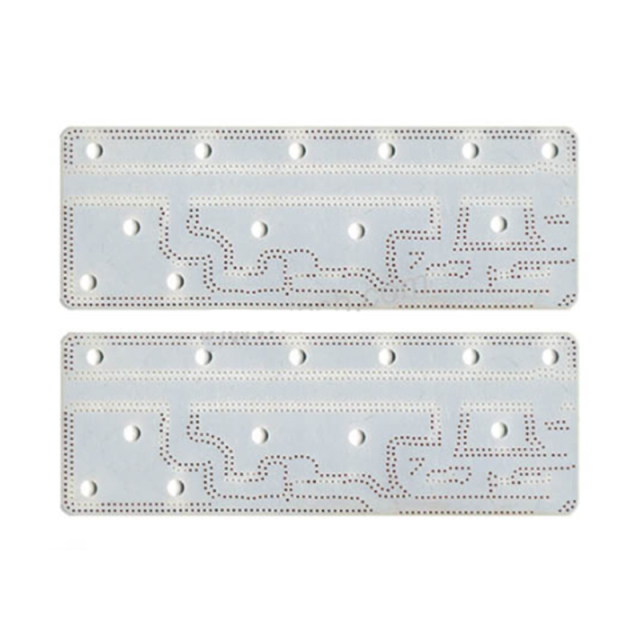

Rogers RO4350B PCB

3. Maxipcb Company Introduction

Maxipcb specializes in RF PCB manufacturing with more than 17 years of experience in China. We deeply understand how much the proper RF material affects the performance of the board. Key parameters such as RF microwave energy levels, operating frequency, operating temperature range, current, and voltage are crucial when selecting suitable materials for high-frequency PCB fabrication. Familiarity with various RF PCB materials is one of our core strengths. Please refer to the following material list—we have sufficient stock of these materials to ensure fast delivery.

4. RF/Microwave PCB Materials Supplied by Maxipcb

Maxipcb offers a comprehensive range of high-performance RF/microwave PCB materials to meet diverse application needs, including:

Rogers series: RO4350B, RO3003, RO4003, RO3006, RT/Duroid 5880, RT5870, etc.
Other high-performance materials: Arlon, Isola, Taconic, PTFE F4BM, Teflon, etc.

5. Hybrid PCB Materials (Mixed Dielectric/Laminate)

To address the complex performance requirements of advanced electronic equipment, Maxipcb also provides customized hybrid PCB material (mixed dielectric/laminate) combinations, such as:

Rogers RO4350B + FR4, RO4350B + IT180, RO4003C + FR4, RO3010 + FR4, RO3003 + FR4, RO3010 + FR4, etc.

6. Radio Frequency (RF) Microwave PCB Application Fields

RF microwave PCBs (printed circuit boards) manufactured by Maxipcb are widely used in various fields, including:

Consumer Electronics / Military/Space / High Power / Medical / Automotive / Industrial, etc.

7. Maxipcb's RF/Microwave PCB Manufacturing Capabilities

7.1 Surface Finishing

OSP / ENIG / HASL LF / Plated gold / Flash gold / Immersion Tin / Immersion silver / Electrolytic gold

7.2 Manufacturing Capacity

Golden finger / Heavy copper / Blind buried via / Impedance control / Filled with resin / Carbon ink / Backdrill / Countersink / Depth drilling / Half plated hole / Pressfit hole / Peelable blue mask / Peelable solderstop / Thick copper / Oversize

7.3 Material Range

Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and Arlon / Isola / Taconic / PTFE F4BM / Teflon material, etc.

7.4 Number of Layers

2L, 4L, 6L, 8L, 10L, 12L, 14L, 16L, 18L, 20L, 22L, 24L, 26L, 28L, 30L

7.5 Dielectric Constant (DK) Range

2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2

8. Typical Applications of Rogers RO4350B PCB

Leveraging its excellent comprehensive performance, Rogers RO4350B PCB is widely applied in various fields, including:

Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers

Model : Rogers RO4350B High Frequency Board

Material : Rogers RO4350B

Layer : 2L

DK : 3.48

Dielectric Thickness : 0.813mm

Thermal Conductivity : 0.69w/m.k

Finished Thickness : 1.0MM

Copper Thickness : Base 0.5OZ,Finished 1OZ

Surface Treatment : Immersion Gold

Application : Radio Frequency Communication Instrument pcb, Microwave Antenna pcb

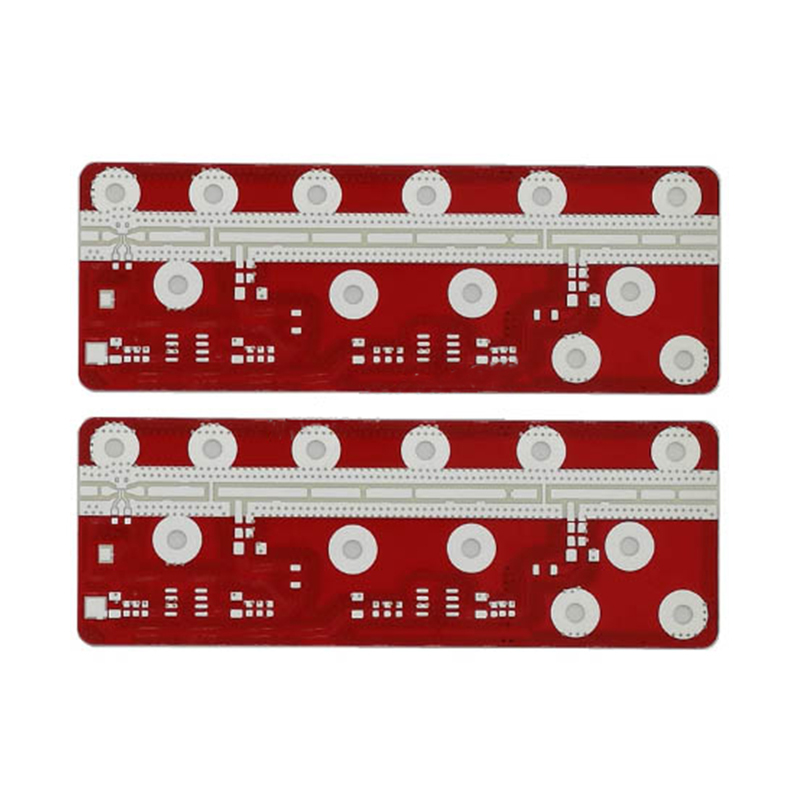

Rogers PCB RO4350B Printed Circuit Board
