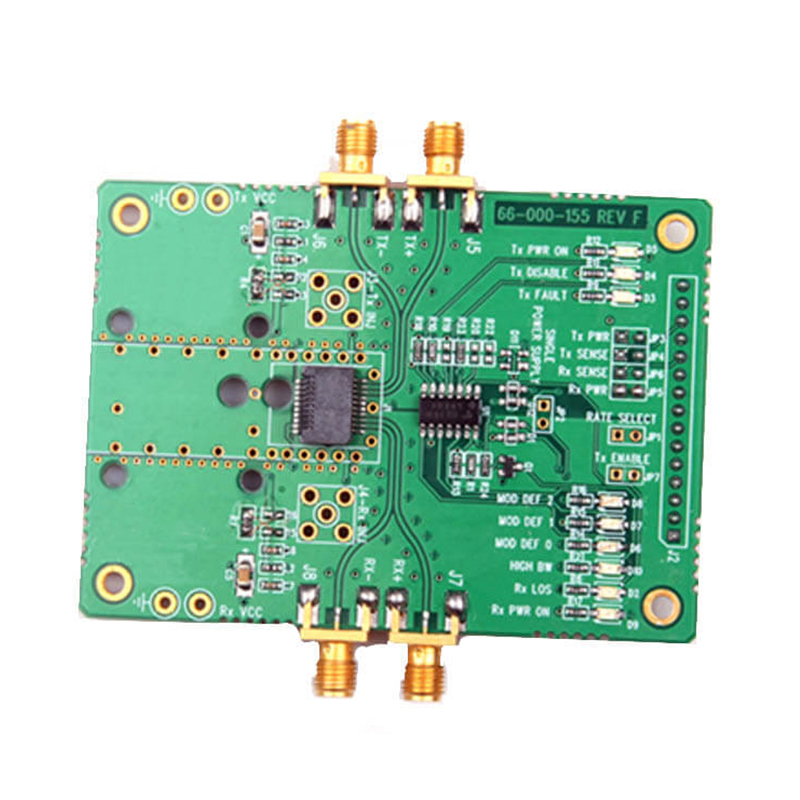

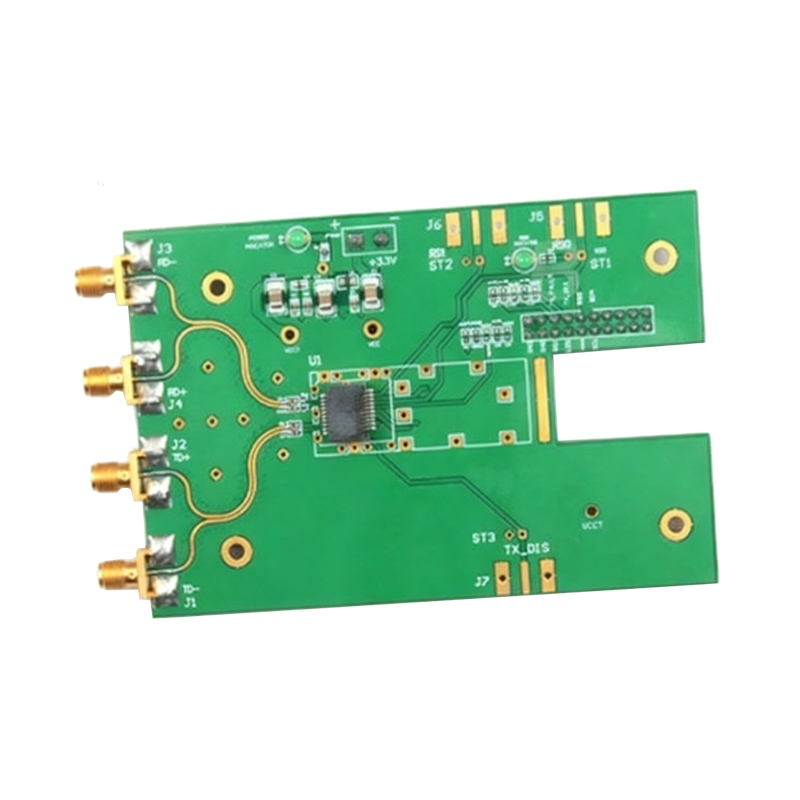

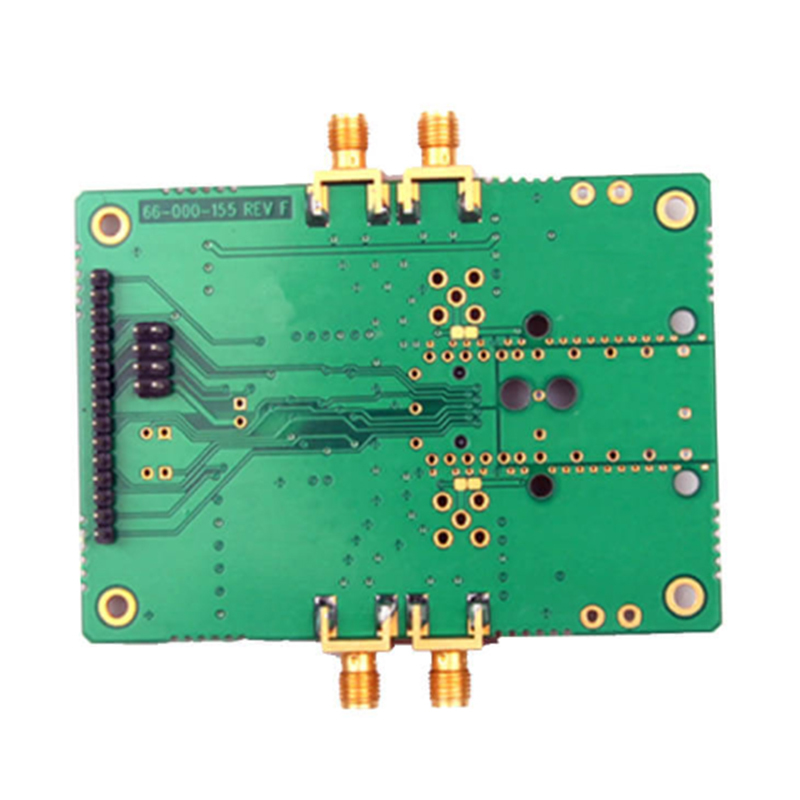

RF communication PCBA manufacturing

PCBA manufacturing refers to the complete processing flow of bare PCB boards through SMT surface mounting and DIP through-hole welding processes. As a professional manufacturer with in-house SMT production workshops, Maxipcb delivers full-cycle one-stop PCBA solutions, covering component sourcing, PCB prototyping, SMT assembly, through-hole insertion, functional testing and final product assembly.

To guarantee consistent component reliability, all raw materials are sourced from original manufacturers or authorized formal distributors. The company adopts a transparent pricing mechanism, with cost adjustments linked to raw material market fluctuations. Relying on a professional technical team, we provide long-term BOM optimization, component selection and alternative recommendation, as well as complete material matching solutions for thousands of clients annually, delivering solid support for customer R&D verification, prototype trial and medium-to-volume mass production.

Maxipcb is equipped with 12 automated SMT production lines, deployed with advanced imported Yamaha placement machines, automatic solder paste printers, SPI solder paste inspection units, 10-zone reflow ovens, AOI optical detectors and X-ray testing equipment. The daily mounting capacity reaches 8 million solder joints. The factory specializes in high-precision and high-density circuit board processing, with mature manufacturing experience for complex boards exceeding 120,000 solder joints per unit.

A rapid-response material support system is established, with full stock of conventional resistors, capacitors, inductors, magnetic beads and connectors. A dedicated R&D procurement team and professional component certification engineers ensure rapid material verification within a short cycle. Strict IQC incoming inspection procedures are implemented to assist customers in optimizing BOM accuracy and resolving material matching challenges for R&D samples. Supported by a standardized supplier management system, including supplier access review and annual performance audit, we maintain long-term cooperation with well-known brands such as Yageo, Murata, AVX and KEMET. Constant temperature and humidity warehouses and FIFO inventory rules ensure stable material storage and rapid material scheduling, shortening product development cycles and accelerating project iteration.

Maxipcb integrates PCB substrate manufacturing and PCBA processing in one factory. Advanced production and testing equipment imported from the United States, Japan, Germany and Israel effectively upgrades process capability, testing standards and technical R&D level. Our core proprietary technologies include laser direct imaging, high-frequency board fabrication, precision impedance control, blind and buried hole processing, aluminum substrate production and flying probe testing, keeping pace with industry leading standards. The in-house R&D team has independently developed high-end processes such as mechanical micro-hole machining, high aspect ratio design, multi-layer backplane, high-precision impedance customization and HDI fabrication. We are capable of undertaking high-difficulty assembly processes with flexible lead-time arrangement to support rapid prototyping.

The company holds IATF16949, ISO9001, UL and RoHS certifications, fully complying with industrial and automotive-grade quality specifications. We provide customized services ranging from sample proofing, small-batch trial production to large-scale mass production, serving automotive electronics, new energy equipment, industrial control, high-end consumer electronics, aerospace and scientific research institutions worldwide. Adhering to standardized process management and full-range quality control, Maxipcb continuously optimizes production workflows to balance high quality, cost efficiency and on-time delivery, delivering stable and reliable PCB and PCBA integrated manufacturing services for global customers.



FAQ

What is included in your RF communication PCBA assembly services?
We provide full-cycle pcb assembly services covering component sourcing, SMT and through-hole assembly, functional testing, and final product assembly. Our turnkey solutions support prototype to medium-volume production, focusing on high-frequency and high-density PCBs with proven quality controls.

Can you customize materials and finishes for RF PCBA manufacturing?
Yes, we support a variety of high-frequency and high-speed PCB materials with surface treatments including lead-free HASL and Immersion Gold. Our expertise ensures optimized impedance control and material matching tailored to your RF communication requirements.

How do you ensure quality and reliability in printed circuit board assembly?
Our process includes strict IQC inspections, component certification, and long-term BOM optimization. We operate 12 automated SMT lines equipped with AOI, X-ray, and SPI to maintain consistency. Certifications like IATF16949 and ISO9001 demonstrate our commitment to manufacturing excellence in printed circuit board assembly.

What logistics and lead time options do you offer for electronic contract manufacturing?
Lead times vary depending on order volume and complexity. We maintain rapid-response material support and standardized supplier management to optimize delivery schedules. Contact us for tailored timelines and cost-efficient plans to suit your electronic contract manufacturing needs.
