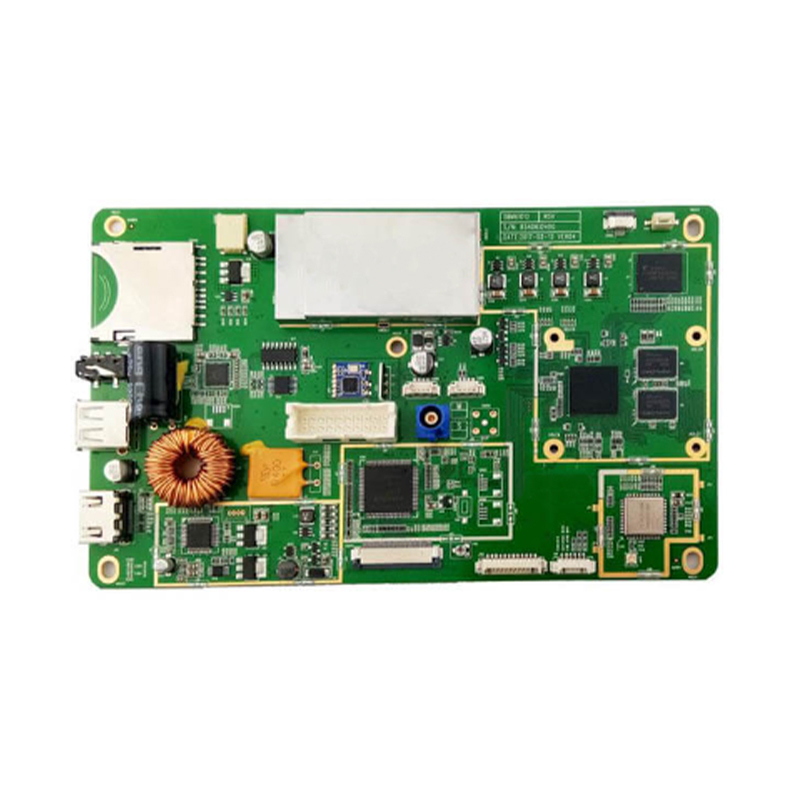

Name: Rancangan PCBA sistem kawalan kereta
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Maxipcb Automotive PCBA One-Stop Services

Maxipcb provides one-stop PCBA manufacturing services for the design and production of automotive PCBA (automotive control systems, drive controls, load stacks, automotive media, automotive air conditioners, automotive lamps) and other electronic equipment, and strictly implements the IATF16949 quality management system to ensure product reliability and compliance with automotive industry standards.

2. Definition of Automotive PCBA Pre-Installation & Post-Installation Markets

Automotive PCBA design often involves distinguishing between pre-installation and post-installation markets. The pre-installation market refers to PCBA products installed in vehicles before they leave the factory, while the post-installation market involves additional installations or modifications made to vehicles after they leave the factory. In general, any modifications to vehicles after they leave the factory fall into the post-installation category.

3. Current Status of the Automotive PCBA Market

The current automotive electronic PCBA pre-installation market is closely aligned with the automotive OEM market. Suppliers for this segment are usually subsidiaries or holding companies of the automakers themselves, making it generally difficult for other suppliers to enter the entire vehicle factory supply chain after standard vehicle production.

In contrast, the post-installation market is relatively less complex. Most post-installation products are for vehicle modifications, such as adding reverse radar, anti-fatigue driving systems, lane departure warnings, on-board OBU devices, etc., especially for low-equipped vehicle models in the later stage.

4. Trends in the Automotive PCBA Post-Installation Market

According to data analysis, the main market for post-installation automotive PCBA is in-vehicle network-connected auxiliary equipment. Particularly in recent years, the rapid popularization of 5G technology has driven the application of the Internet of Things (IoT). As a mature industry in both Eastern and Western markets, the high-speed in-vehicle network sector, coupled with a large number of connected vehicles, has promoted the rapid penetration and popularization of the industrial IoT, leading to continuous expansion of the industry scale.

Automotive Electronic Rancangan PCBA

5. Maxipcb’s Automotive PCBA Capabilities & Advantages

As a one-stop automotive PCBA manufacturing factory, Maxipcb can provide customers with integrated services including PCB manufacturing, SMT patch processing, and subsequent assembly testing. Currently, our PCB factory undertakes a large number of automotive electronic products, most of which have high functional value and practicality—products that are crucial for the development of the automotive market. With the arrival of the 5G era, in-vehicle network products and markets will achieve further growth.

Automotive PCBA design and processing services, including PCB electronic processing, require high technical standards. This industry has obvious advantages in priority development and high requirements for PCB circuit boards, which places increasing demands on automotive electronic PCB processing. This also makes it difficult for some enterprises that only see the potential of the automotive electronic PCB processing industry but ignore potential risks to achieve effective development after entering the industry.

6. Recommendations for Automotive Enterprises

Therefore, we remind automotive enterprises not to easily replace their automotive electronic PCBA manufacturer and processing partner after selection—high-quality automotive electronic PCBA factories are difficult to obtain. In addition, many current automotive electronic PCBA manufacturers and processors are adopting international supply chain channels. When they achieve success, they will bring a large number of orders to the company, promote the upgrading of the company’s technology and equipment, and further support the development of automotive enterprises.

Automotive electronic PCBA design and processing is an indispensable part of automotive enterprise development. To produce vehicles that satisfy users, close cooperation with excellent automotive electronic PCBA design and processing manufacturers is essential.

7. Maxipcb Enterprise Overview & Core Strengths

Maxipcb is a professional provider of small and medium-batch electronic services integrated with sample production. The company has obtained the IATF16949 automotive quality management system certification and has rich experience in automotive electronic product PCBA design and processing.

With over 17 years of RF PCB manufacturing experience, Maxipcb is committed to building an Industry 4.0 smart PCB factory under the "Internet +" strategy. The company has independently developed an industry-leading automatic PCB quotation and ordering system, implemented Total Quality Management (TQM), and holds UL, ISO9001 and SGS RoHS certifications, providing global customers with professional technical support and one-stop production services.

8. Core Product Portfolio & Technical Capabilities

Maxipcb’s high-end PCB product lineup covers radio frequency (RF)/microwave/hybrid high-frequency boards, FR4 double-sided/multilayer boards, 1~3+N+3 HDI boards, anylayer HDI, rigid-flex composite boards (R-FPCB), blind & buried hole boards, blind slot boards, backdrilled boards, IC carrier boards and heavy copper PCBs—all widely applicable to automotive electronics, Industry 4.0, communication equipment, industrial control, medical devices, aerospace and other fields.

To meet the reliability and soldering requirements of automotive PCBA and other high-end products, Maxipcb offers a full range of surface finishing options: OSP, ENIG (Electroless Nickel Immersion Gold), lead-free HASL (Hot Air Solder Leveling), full-plate gold plating, flash gold, immersion tin, immersion silver and electrolytic gold.

The company possesses comprehensive high-precision processing capabilities, including golden finger fabrication, heavy copper production, blind/buried via processing, precision impedance control, resin plug hole, carbon ink printing, backdrilling, countersink hole, depth-controlled drilling, half-plated hole, press-fit hole, peelable blue mask, peelable solder stop, thick copper manufacturing and oversized PCB production, fully supporting high-end automotive PCBA customization needs.

Layer coverage ranges from 2L to 30L, supporting flexible customized layer design for high-density, high-frequency and miniaturized automotive electronic scenarios. Customizable dielectric constant (DK) includes 2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15 and 10.2, precisely matching the electrical performance requirements of automotive PCBA to ensure stable signal transmission.

Reka PCBA Automotive

9. Enterprise Service Commitment

Backed by profound professional material expertise, sufficient core material inventory and strict full-process quality control, Maxipcb has established long-term cooperative relationships with global customers. The company continuously upgrades technological capabilities, focusing on delivering stable, high-performance PCB and PCBA solutions that meet diverse high-end automotive application demands.

Rancangan PCBA sistem kawalan kereta

Lapisan PCB: hingga 12 lapisan

Substrate: TG dan tg170 dalam FR-4 / TG tinggi

Perubahan permukaan: HASL bebas lead / Immersion Gold

Lebar emas : 2U-5U

Penjual melawan: hijau, mengikut keperluan anda

Lebar tembaga: 0.5oz-6oz, 0.5oz-5oz

Warna PCB : Hijau, Hitam, Putih, Merah, Biru

Ujian PCB : Ya

Ujian PCBA : Ya

Aplikasi: produk kereta dan elektronik
