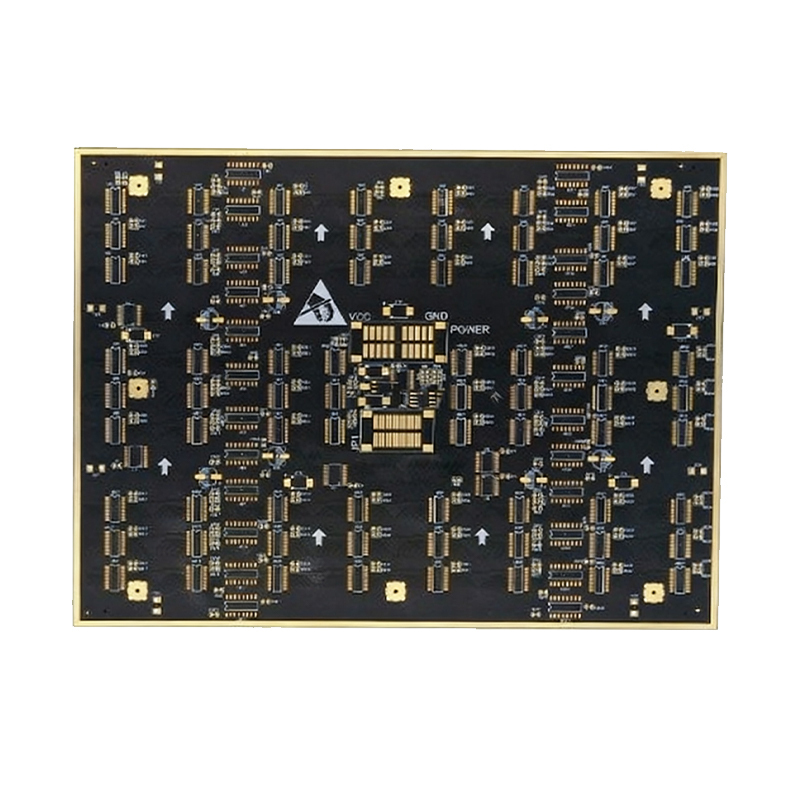

P2.9 led printed circuit board manufacturing

Name: P2.9 led printed circuit board manufacturing
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Product Model: P2.9 LED Display PCB

Base Material: SY1000‑2 FR‑4 Laminate (TG170)

Layer Configuration: 6 Layers

Solder Mask Color: Black / White

Finished Board Thickness: 1.0 mm

Copper Cladding Weight: 1 oz (35 μm)

Surface Finish: Electroless Nickel Immersion Gold (ENIG)

Minimum Trace Width: 4 mil (0.1 mm)

Minimum Trace Spacing: 4 mil (0.1 mm)

Key Features: High-density pad layout and fine-pitch design

Primary Application: Specialized PCB for P2.9 LED display modules

Get The Latest Quote

Description
Data Sheet

Driven by ongoing advancements in electronic technology, the printed circuit board (PCB) has become a foundational component in modern electronic systems. As a core interconnection carrier, the PCB integrates conductive copper traces to establish electrical connections between electronic components while providing reliable mechanical support.

This structural design enables significant savings in layout space and material consumption, supporting the development of highly integrated and large-scale circuit architectures. With continuous technological evolution, PCBs have facilitated the widespread implementation of compact, high-density circuit designs, driving the entire electronics industry toward higher integration and greater functional complexity.

Maxipcb Circuits Limited (Maxipcb®.com) is a high-tech enterprise specializing in the R&D and manufacturing of high-end printed circuit boards. The company has independently developed an industry-leading automated PCB quotation and ordering system. Committed to the Internet Plus model and Industry 4.0 standards, Maxipcb strives to build an intelligent PCB manufacturing base, providing global customers with professional technical support and efficient, reliable production services.

Model : P2.9 led printed circuit board

Material : SY1000-2 TG170 FR4

Layer : 6Layers

Color : Black/White

Finished Thickness : 1.0mm

Copper Thickness : 1OZ

Surface Treatment : Immersion Gold

Min Trace : 4mil(0.1mm)

Min Space : 4mil(0.1mm)

characteristic : More pads with small spacing

Application : P2.9 led printed circuit board
