Multilayer PCB Vehicle Mainboard

Name: Multilayer PCB Vehicle Mainboard
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

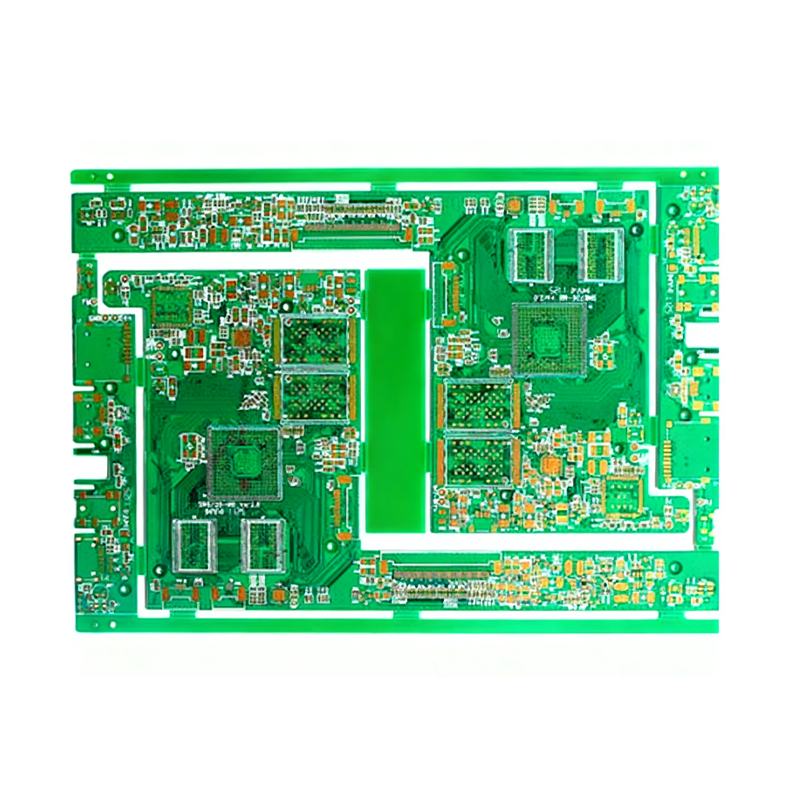

Product Model: 6-Layer Multilayer PCB for Automotive Mainboard

Base Material: KB high-performance FR-4 glass epoxy laminate

Layer Structure: 6-layer multilayer PCB

Solder Mask & Silkscreen: Green solder mask matched with white legend

Finished Board Thickness: 1.2 mm

Copper Weight: 1 oz for inner and outer layers

Surface Finish: OSP (Organic Solderability Preservative)

Minimum Design Rule: 3 mil (0.075 mm) trace width and 3 mil (0.075 mm) trace spacing in BGA area

Key Characteristic: Automotive-grade design, fully compliant with IATF 16949 quality management system specifications

Application: Automotive main control units and vehicle body control modules

Get The Latest Quote

Description
Data Sheet

The rapid evolution of the electronics industry has accelerated the intelligent transformation of the automotive sector. Electronic systems have become core to modern vehicle development, extending far beyond the conventional focus on mechanical, powertrain, hydraulic and transmission technologies. Today’s automotive industry increasingly depends on electronic control, sensing, signal transmission and data processing, all of which are highly dependent on high-performance printed circuit boards.

Against the background of automotive intelligence, digitization and higher consumer requirements for safety, comfort and operational convenience, PCBs are extensively applied in automotive electronic systems. These range from basic single-sided and double-sided boards to high-layer-count multilayer PCBs and high-density interconnect (HDI) structures with blind vias, multi-layer stacking and high-precision interconnection architectures.

Maxipcb Quality Management & Automotive-Grade Control System

Maxipcb is committed to providing highly reliable and safety-compliant automotive PCBs, with strict quality systems fully aligned with automotive industry requirements.

Adopts IATF/ISO/TS16949 automotive quality management system, fully qualified for automotive supply chain requirements.
Maintains international certifications including ISO9001 and CQC, with standardized and consistent quality control.
Conducts full-process control in strict accordance with IPC industry standards and customer-specific requirements, with multi-point inspection to ensure outgoing quality.
Implements a continuous improvement mechanism based on the PDCA cycle, optimizing process capability and product reliability systematically.

Model :Multilayer PCB Vehicle Mainboard

Material: KB FR-4

Layer : 6Layers Multilayer PCB

Color : Green/White

Finished Thickness: 1.2mm

Copper Thickness:1OZ

Surface Treatment: OSP PCB

Min Trace : BGA 3mil(0.075mm)

Min Space : BGA 3mil(0.075mm)

Characteristic :Automobile products meet TS16949 certifcation

Application : Multilayer PCB vehicle mainboard

Multilayer PCB Vehicle Mainboard

Description

Data Sheet

Maxipcb Quality Management & Automotive-Grade Control System
