Name: Multi-layer Rigid Flex Circuit Boards for Digital products
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Enterprise Overview & Strategic Positioning

Maxipcb is a high-tech enterprise specializing in the R&D and mass production of high-end printed circuit boards (PCB). The company has independently developed an industry-leading automatic PCB quotation and ordering system, and is committed to building an Industry 4.0 smart PCB factory under the "Internet +" strategy, providing global customers with professional PCB technical support and integrated one-stop production services.

2. Core Product Series

Maxipcb’s product portfolio covers a full range of high-end PCB products, including radio frequency (RF)/microwave/hybrid high-frequency boards, conventional FR4 double-sided and multilayer boards, 1~3+N+3 HDI boards, anylayer HDI, rigid-flex composite boards (R-FPCB), blind & buried hole boards, blind slot boards, backdrilled boards, IC carrier boards and heavy copper PCBs. These products are widely applied in Industry 4.0, communication equipment, industrial control, digital products, power modules, computers, automotive electronics, medical devices, aerospace, precision instruments, military equipment and IoT fields.

3. Material System

3.1 RF/Microwave PCB Materials

For RF/microwave PCB production, Maxipcb adopts high-performance specialized materials, including Rogers series (RO4350B, RO3003, RO4003, RO3006, RT/Duroid 5880, RT5870), as well as Arlon, Isola, Taconic, PTFE F4BM and Teflon materials, to ensure excellent high-frequency signal transmission performance and structural reliability.

3.2 Hybrid PCB Materials (Mixed Dielectric/Laminate)

Maxipcb provides customized hybrid PCB solutions with mixed dielectric laminates, including common combinations such as Rogers RO4350B + FR4, RO4350B + IT180, RO4003C + FR4, RO3010 + FR4 and RO3003 + FR4, effectively balancing high-frequency performance and cost control for diverse application scenarios.

4. Surface Finishing Solutions

To meet the diverse reliability and soldering requirements of different products, Maxipcb offers a full range of surface finishing options, including OSP, ENIG (Electroless Nickel Immersion Gold), lead-free HASL (Hot Air Solder Leveling), full-plate gold plating, flash gold, immersion tin, immersion silver and electrolytic gold.

5. Key Manufacturing Capabilities

Maxipcb boasts comprehensive high-precision processing capabilities, covering golden finger fabrication, heavy copper circuit production, blind/buried via processing, precision impedance control, resin plug hole, carbon ink printing, backdrilling, countersink hole, depth-controlled drilling, half-plated hole, press-fit hole, peelable blue mask, peelable solder stop, thick copper manufacturing and oversized PCB production, fully supporting the customization needs of high-end PCB products.

6. Layer Configuration & Dielectric Constant (DK)

Layer coverage: 2L, 4L, 6L, 8L, 10L, 12L, 14L, 16L, 18L, 20L, 22L, 24L, 26L, 28L, 30L, supporting flexible customized layer design to adapt to high-density, high-frequency and miniaturized application requirements.

Customizable dielectric constant (DK): 2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15, 10.2, precisely matching the electrical performance requirements of RF/microwave PCB, hybrid PCB and other high-end products, ensuring stable signal transmission.

7. Application Scenarios

Maxipcb’s products, especially RF/microwave PCBs, are widely used in multiple high-end fields, including consumer electronics, military/space, high-power equipment, medical devices, automotive electronics, industrial control, antenna & communication systems, handheld cellular devices, WiFi antennas, telematics and infotainment, computing, radar and power amplifiers.

8. Enterprise Core Advantages

8.1 Quality Management & Production Strength

Maxipcb is equipped with a full set of advanced PCB production and precision testing equipment, supported by an experienced team of technicians and high-quality management personnel. The company implements Total Quality Management (TQM) and adheres to the quality philosophy of "Do it right the first time, prioritize prevention", establishing a full-process quality assurance system. It holds authoritative certifications including UL, ISO9001 quality management system and SGS RoHS environmental compliance certification, ensuring product standardization and reliability.

8.2 R-FPCB Specialized Advantages

For rigid-flex PCB (R-FPCB), Maxipcb adopts targeted material selection and process control: DuPont AP adhesive-free PI flexible substrates, PI resin rigid substrates matched with P95 prepregs, and No-flow prepregs for rigid-flex transition zones, all meeting RoHS compliance, high Tg and precision impedance control requirements. The inner layer pattern transfer adopts electrolytic cleaning technology (supporting 0.1mm~0.15mm line width/spacing), with OPE positioning and X-ray drilling for multi-layer alignment, ensuring product precision, flatness and signal stability.

8.3 Global Service & Intelligent Support

Maxipcb’s products are exported to major global markets including Germany, France, the United States, Australia and Sweden, providing one-stop services covering R&D, prototype verification, mass production and after-sales support. The independently developed automatic PCB online quotation and ordering platform integrates real-time quotation, order placement, payment and after-sales services, significantly shortening customer waiting time and optimizing product R&D and market launch cycles.

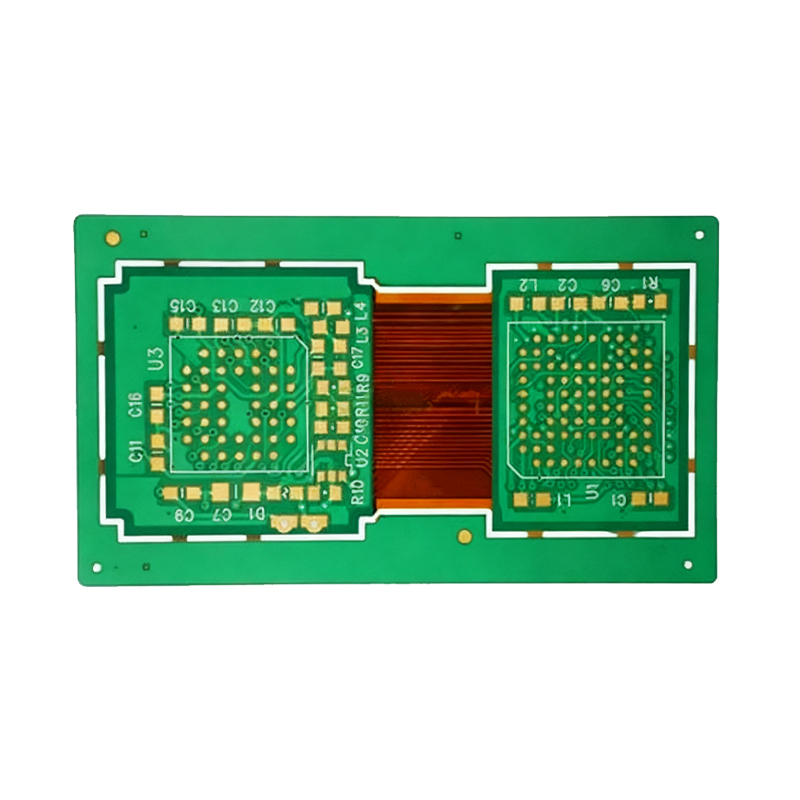

Model : Multi-layer Rigid Flex PCB

Material : FR-4 + PI

Layer : Rigid 4L / Flex 2L

Color : Green/White

Finished Thickness : 1.0mm +0.15mm

Copper Thickness : 1OZ

Surface Treatment : Immersion Gold

Min Trace / Space : 3mil/3mil

Application : Digital Product pcb
