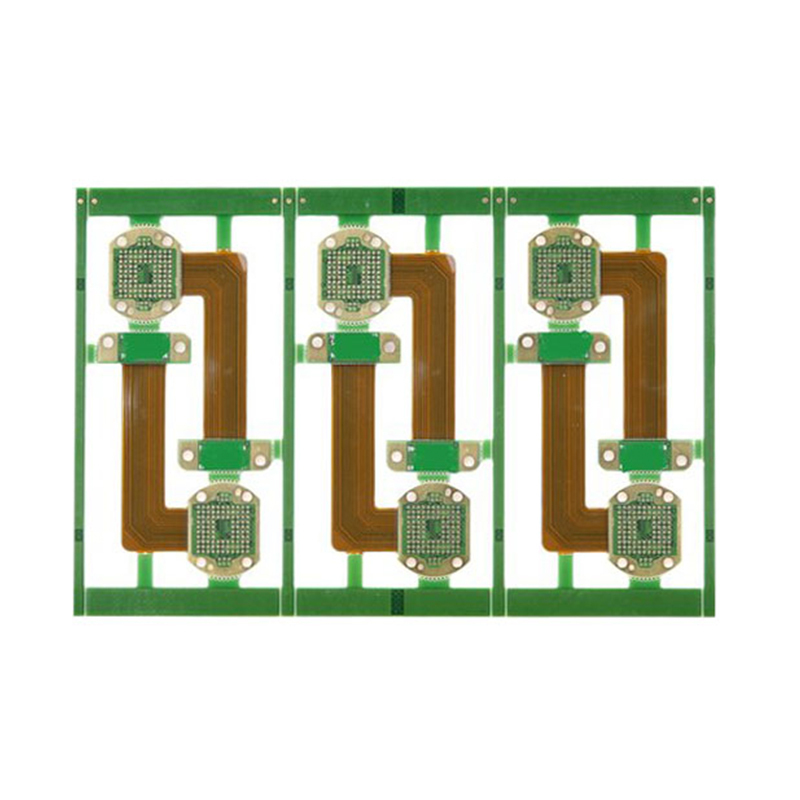

Module Rigid-Flex circuit board

Product Model: Module Rigid-Flex PCB

Material: FR4 + PI Composite Material

Construction: 4 FR4 rigid layers + 2 flexible layers

Finished Thickness: 0.15mm + 0.55mm

Copper Weight: 1oz for all layers

Solder Mask: Green / White

Surface Finish: Immersion Gold

Min. Trace / Space: 4mil/4mil

Application: Electronic Module Equipment

Description
Data Sheet

Industrial, Military and Medical Fields

Rigid-flex circuit boards are widely adopted in industrial automated equipment, defense facilities and high-end medical devices. Such application scenarios impose strict requirements on operational accuracy, structural safety and environmental durability.

Featuring high structural stability, ultra-precision fabrication, low impedance attenuation, complete signal integrity and long service life, rigid-flex PCBs fully meet the rigorous operating standards of high-reliability industrial equipment. Due to compound stacking structure and sophisticated manufacturing workflows, the production process is highly complex, resulting in low mass output and relatively high unit cost.

Mobile Communication Devices

In smart mobile terminals, especially foldable smartphones, rigid-flex boards are commonly applied to core functional modules including folding hinge components, camera assemblies, key units and RF circuits.

This composite board solution realizes highly integrated internal component layout, and replaces the traditional assembly structure of discrete connectors and flexible circuits. It greatly enhances the bending resistance and long-term operational stability of folding areas. Meanwhile, it adapts to the growing high-speed signal transmission demand brought by multi-media integration, high-definition imaging and wireless communication upgrading, and supports modular miniaturization design for consumer mobile products.

Consumer Electronic Devices

For portable consumer hardware such as digital cameras and video recording equipment, rigid-flex PCB serves as the core interconnection carrier for structural and performance optimization.

With three-dimensional spatial wiring capability, it connects multiple rigid circuit units and electronic components in an integrated manner. Under the same wiring density, it expands effective circuit layout area, improves overall current-carrying performance, and reduces contact signal attenuation and assembly tolerance errors. Benefiting from ultra-thin, lightweight and bendable characteristics, it effectively reduces product overall size and weight, and significantly optimizes internal space utilization of compact consumer electronics.

Automotive Electronic Systems

Rigid-flex PCBs are extensively applied to mainstream vehicle electronic systems, covering steering wheel key signal connection, on-board display and control panel interconnection, door audio and function control modules, reversing visual radar systems, multi-functional vehicle sensors, vehicle communication modules, satellite navigation units, front and rear seat controller connection circuits and vehicle external detection equipment. It delivers stable flexible connection performance and strong environmental adaptability to cope with complex and variable in-vehicle working conditions.

Model: Module Rigid-Flex circuit board

Material : FR4 + PI

Construction : FR4 4L+FLEX 2L

Finished Thickness: 0.15mm+0.55mm

Copper Thickness: 1/1/1/1/1/1OZ

Color: Green /White

Surface Treatment: Immersion Gold

Min Trace / Space: 4mil/4mil

Application: Module
