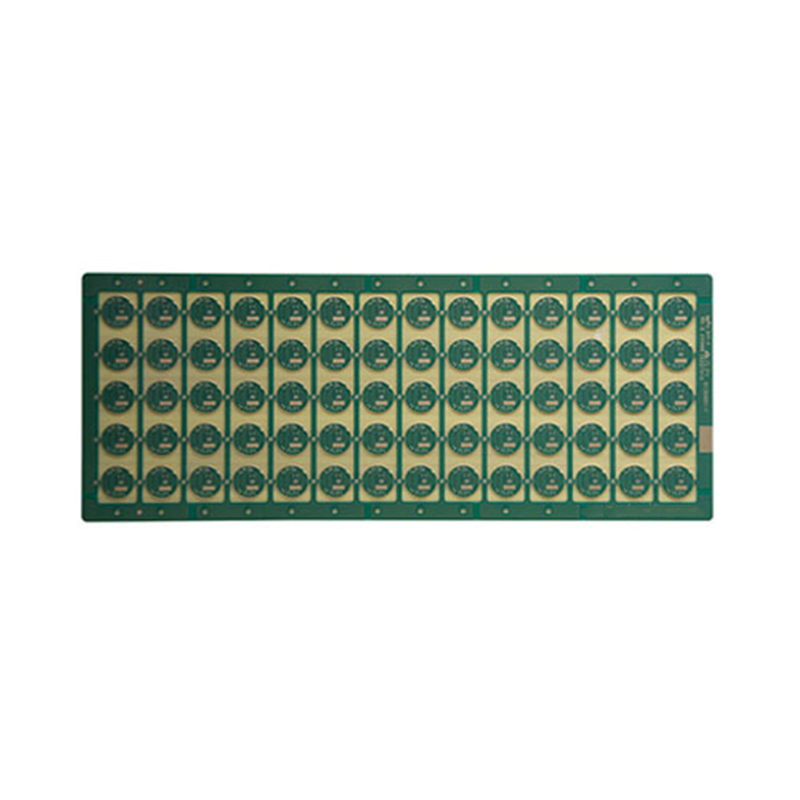

Micro PCB,Ultra small size PCB

Name: Micro PCB,Ultra small size PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Product Model: Micro PCB, Ultra Small Size PCB

Base Material: FR-4

PCB Layers: 4 Layers

Solder Mask Color: Green / White

Finished Thickness: 0.6mm

Copper Thickness: 1OZ

Minimum Trace Width: 6mil (0.15mm)

Minimum Spacing: 6mil (0.15mm)

Surface Treatment: Gold Plating

Gold Layer Thickness: 0.2μm (8μ")

Production Capacity: Minimum finished board dimension: 0.5mm × 1.0mm

Get The Latest Quote

Description
Data Sheet

Maxipcb provides full-range customized PCB manufacturing solutions, covering single-sided, double-sided and multilayer circuit boards. Our product lineup also includes high TG FR-4 PCB, heavy copper PCB, impedance-controlled PCB, gold finger PCB and hard gold plating PCB. All product specifications can be tailored to personalized customer designs, and all finished products strictly comply with RoHS environmental protection regulations.

We deliver high-standard and application-oriented PCB fabrication services to support multiple industry segments, including telecommunications, medical devices, military defense, computers and consumer electronics, automotive electronics, LED lighting and other professional fields.

Equipped with complete professional departments and technical teams, we offer integrated one-stop services as below:

Professional PCB design development
Custom PCB production (supported with PCB files or Gerber files)
PCB PCBA processing and SMT patch assembly (BOM list required)
Electronic hardware and circuit design
Centralized electronic component procurement
Performance testing and quality inspection for PCB & PCBA finished goods
Reliable mass production delivery
Reverse engineering: PCB copying, circuit cloning and IC decoding
Custom contract production and OEM manufacturing
Confidential guarantee with NDA signing service

For detailed technical parameters and processing capacity of double-sided and multilayer PCB, please refer to our technical specification documents.

Model : Micro PCB,Ultra small size PCB

Material : FR-4

Layer : 4Layers

Color : Green/White

Finished Thickness : 0.6mm

Copper Thickness : 1OZ

Min Trace : 6mil(0.15mm)

Mim Space : 6mil(0.15mm)

Surface Treatment : Gold-plating

Gold thick : 0.2μm(8U)

Maxipcb Capacity min finish board size : 0.5mm*1.0mm
