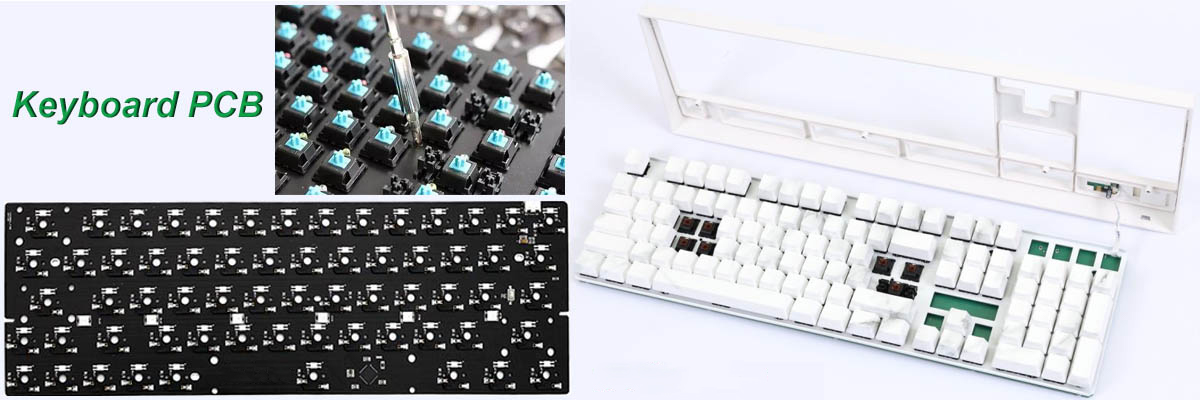

Keyboard PCB

Basic Composition & Working Principle

Product Advantages

Optimized Structural Design for Diverse Keyboard Architectures

The product’s architecture incorporates variable base material options including FR-4, PI, and aluminum, allowing adaptation to specific thermal and mechanical requirements. The 2-layer circuit board design with configurable solder mask colors meets precise layout specifications demanded by a custom keyboard pcb manufacturer. The embedded controller supports a variety of mapping schemes and interfaces, facilitating modular design and compatibility with multiple keyboard types, including membrane keyboard pcb and mechanical builds. This approach simplifies system integration, reduces rework, and accelerates product development cycles through improved design flexibility.

Superior Performance Delivering Reliability and Integration Efficiency

With minimum trace widths and line spacing engineered to 6 mil, the board ensures high fidelity in data transmission and robust signal processing. The inclusion of an advanced on-board controller with ROM enhances scanning speed and accuracy, reducing latency across complex key matrices. This reliable mechanical keyboard pcb supplier solution supports seamless interfacing with USB and wireless modules like Bluetooth, enabling end-users and manufacturers to leverage fast and energy-efficient connectivity. These optimizations improve overall device responsiveness and extend operational life, providing substantial value for OEMs focused on performance and product longevity.

Two Key Sensing Principles

1. Conductive Contact Sensing

   A small conductive contact pad is arranged under each key. Pressing the key connects the PCB circuit, and the controller captures the key position signal. It then matches the preset code table in ROM to output corresponding character commands. This solution is widely used in membrane and mechanical keyboards.
2. Capacitive Sensing

   Also defined as capacitive keyboard solution, stable electrical signals continuously circulate on the complete keyboard circuit matrix. Each key is equipped with an induction plate; pressing changes the electrode distance and ambient capacitance, causing real-time current fluctuation. The controller captures capacitance changes to identify key actions, featuring contactless triggering and low wear.

Keyboard Classification by Coding Mode

Full-Coding Keyboard

Non-Coding Keyboard

Keyboard Main Program Logic

1. The main program calls the scanning module to traverse the row-column key matrix and obtain key coordinate scanning codes;
2. Transmit valid scanning codes to the host interface circuit;
3. Complete data decoding and convert scanning codes into standard character codes;
4. The interface module uploads the final encoded information to the terminal host.

Classification by Connection Interface

• Wired: PS/2 round port, USB interface
• Wireless: 2.4G receiver, Bluetooth wireless mode

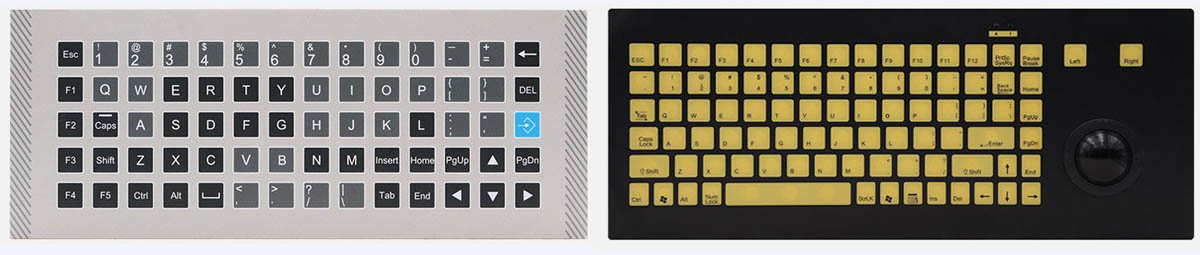

Common Keyboard Types & Structural Differences

Mechanical Keyboard

Each key is equipped with an independent mechanical switch (mechanical shaft), adopting metal contact conduction.

Advantages: Clear typing feedback, unchanged hand feel after long-term use, strong durability (single-key life up to 50 million strokes), full-key anti-ghosting support, customizable keycaps and DIY modification; suitable for office typing and gaming scenarios.

Disadvantages: High noise, high cost and complex assembly.

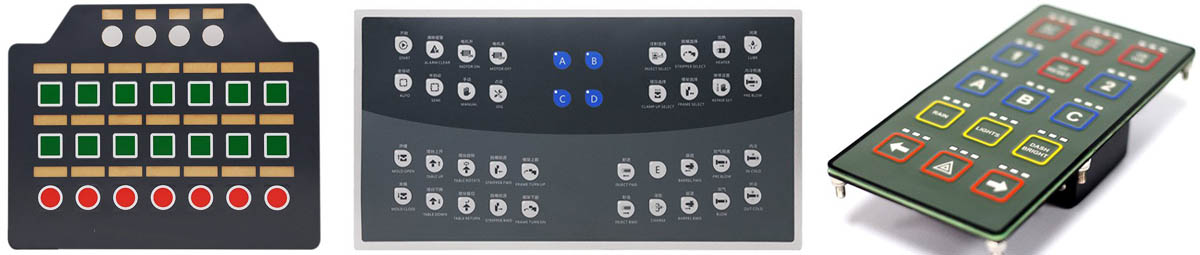

Membrane Keyboard

Multi-layer plastic film integrated structure with conductive rubber contact design, no mechanical shaft wear.

Advantages: Low noise, low cost, soft pressing feel, good durability and high cost performance; dominating the civilian keyboard market.

Disadvantages: The pressing feel will degrade after long-term compression, and the anti-ghosting capability is weak.

Capacitive Keyboard

High-end contactless solution, triggering by capacitance change between electrodes.

Advantages: Ultra-light pressing feel, sensitive response, zero mechanical wear, excellent sealing and dustproof performance;

Disadvantages: Expensive, low market popularity, mainly produced by a few professional manufacturers.

Conductive Rubber Keyboard

A transitional product between mechanical and membrane keyboards, adopting convex conductive rubber for contact conduction. It has been gradually phased out in the consumer market.

Professional Keyboard PCB Manufacturing | Maxipcb

Keyboard PCB requires stable circuit conductivity, dense line layout and long-term anti-fatigue performance.

Maxipcb provides one-stop services for keyboard PCB prototype proofing, small-batch trial production and mass production. We support FR4 rigid boards and FPC flexible boards, with mature processes for membrane keyboards, mechanical keyboards and capacitive keyboard circuit boards to meet customized design demands.

FAQ

What base materials are available for your keyboard PCBs?

We manufacture keyboard PCBs using FR-4, PI (polyimide), and aluminum base materials, allowing you to select according to your product’s performance and durability requirements. This flexibility supports a broad range of keyboard designs, from flexible to rigid structures.

Can I request a custom keyboard PCB prototype before mass production?

Yes, we offer custom keyboard PCB prototype services to help you validate your design before full-scale manufacturing. Our expertise ensures precise line layouts and compatibility with various mechanical, membrane, or capacitive keyboard types.

Are your keyboard circuit boards compatible with different connection interfaces?

Our keyboard PCBs support multiple connection options, including USB, PS/2, Bluetooth, and other wireless modules. This versatility allows integration with both wired and wireless devices to meet diverse application needs.

Do you provide support for mechanical keyboard PCB supply and customization?

We supply high-quality mechanical keyboard PCBs tailored to your design specifications. Whether for small batches or mass production, our services include solder mask color customization, layer options, and specific dimensions, ensuring your project requirements are fully met.

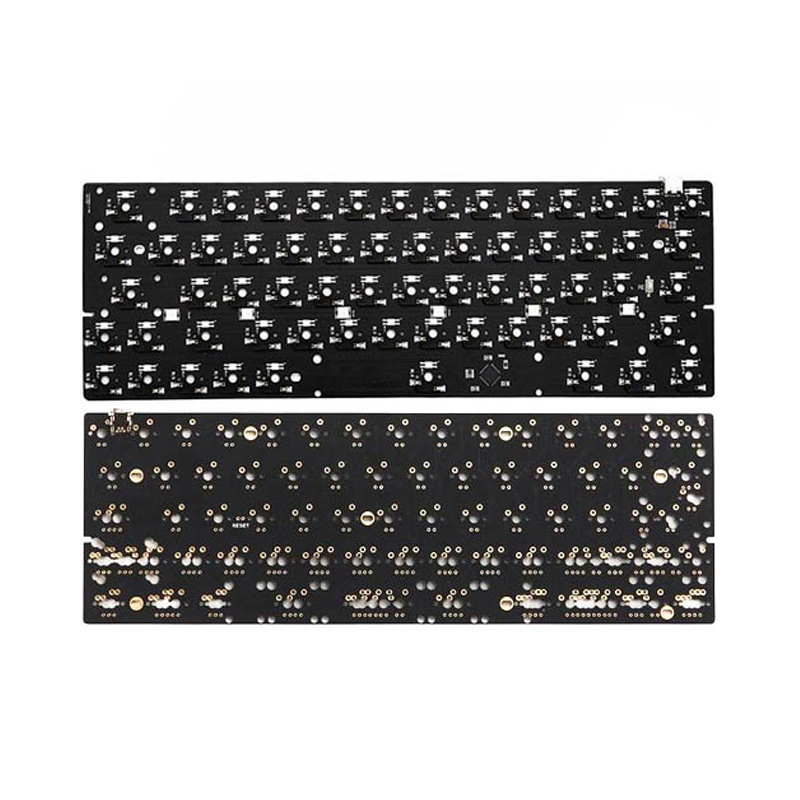

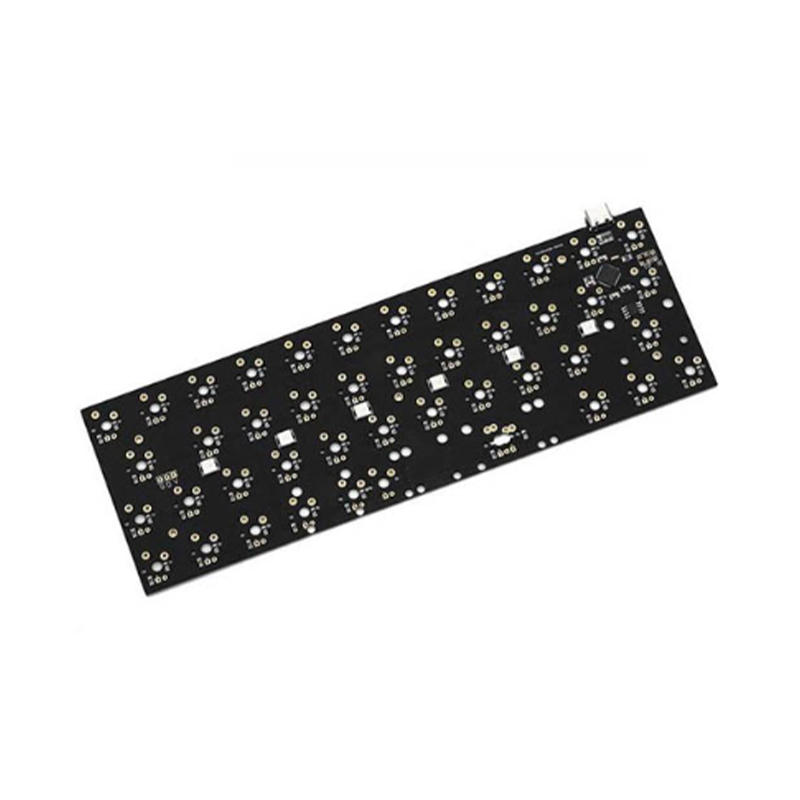

Model: Keyboard PCB

Material: FR-4, PI, Aluminum

Layer: 2Layer

Color: Blue/White/Black/Green

Finished Thickness: 1.0-1.2mm

Copper Thickness: 1OZ

Surface Treatment: OSP

Min Trace: 6mil

Min Space: 6mil

Application: Keyboard
