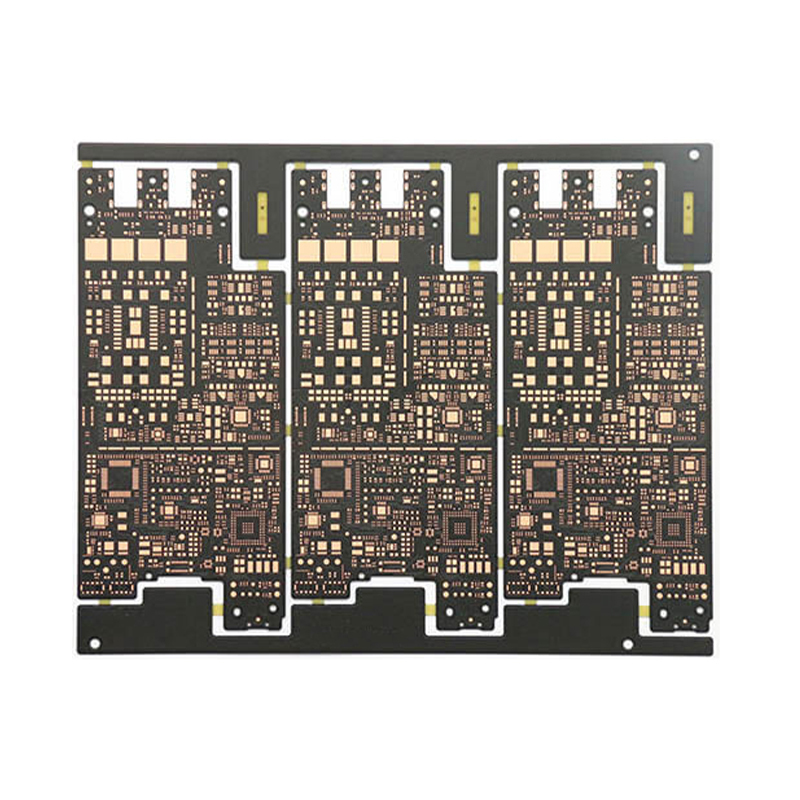

Industrial controller PCB

Name: Industrial controller PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Product Model: Industrial Control PCB

Base Material: EM-82 Substrate

Layers: 4 Layers

Solder Mask Color: Black / White

Finished Board Thickness: 1.6 mm

Copper Weight: 1 oz (35 μm)

Surface Finish: Electroless Nickel Immersion Gold (ENIG)

Minimum Trace Width: 6 mil (0.15 mm)

Minimum Trace Spacing: 6 mil (0.15 mm)

Key Characteristic: Hole wall copper thickness ≥ 25 μm

Application: Industrial control equipment

Get The Latest Quote

Description
Data Sheet

Maxipcb boasts a premium technical team and extensive proven expertise in the development and manufacturing of industrial-grade printed circuit boards.

Backed by a professional PCB engineering team of 500 members with over 10 years of industry experience, we deliver high-precision industrial PCB solutions tailored to customer requirements.

Our strong R&D capability is supported by 3 invention patents and 68 utility model patents, which continuously optimize product structure and enhance board performance.

Maxipcb possesses industry-leading PCB processing capabilities to fulfill demanding technical requirements for industrial applications.

We achieve a minimum trace width and spacing of 1.5mil/1.5mil with a dimensional tolerance controlled within ±5%.

Equipped with state-of-the-art automated production and precision inspection systems, Maxipcb has invested nearly one billion yuan in high-end equipment including Cosmos VCP plating lines, German Burkle laminating presses, Mitsubishi laser drilling machines, Hitachi mechanical drilling machines, automatic screen exposure machines, LDI direct imaging systems and Japanese AOI inspection equipment.

We maintain a full range of in-house surface treatment capabilities — including immersion gold, immersion silver, immersion tin, OSP, hot air solder leveling, gold plating, thick gold plating, tin plating and silver plating — a configuration rarely seen in the PCB industry, effectively eliminating quality risks associated with outsourced processing.

A stringent quality management system is implemented throughout production to ensure 100% on-time delivery quality compliance.

All PCBs are manufactured and inspected in strict accordance with IPC standards, guaranteeing zero-defect shipment quality.

Quality verification is reinforced with precision instruments including the American Dionex ICS-900 system and thermal cycle testing equipment.

Committed to green and environmentally friendly manufacturing practices, Maxipcb stands as a reliable and trusted partner for renowned brands in the PCB sector.

Model : Industrial controller PCB

Material : EM-82

Layer : 4Layers

Color : Black/White

Finished Thickness : 1.6mm

Copper Thickness : 1OZ

Surface Treatment : Immersion Gold

Min Trace : 6mil(0.15mm)

Min Space : 6mil(0.15mm)

Characteristic : Hole copper is larger than 25um

Application : Industrial controller PCB
