Name: IC Chip Test PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

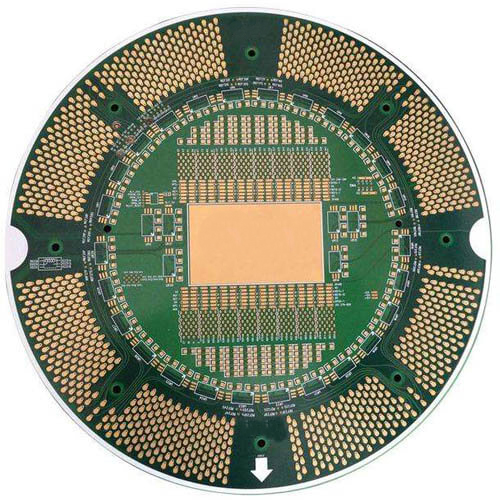

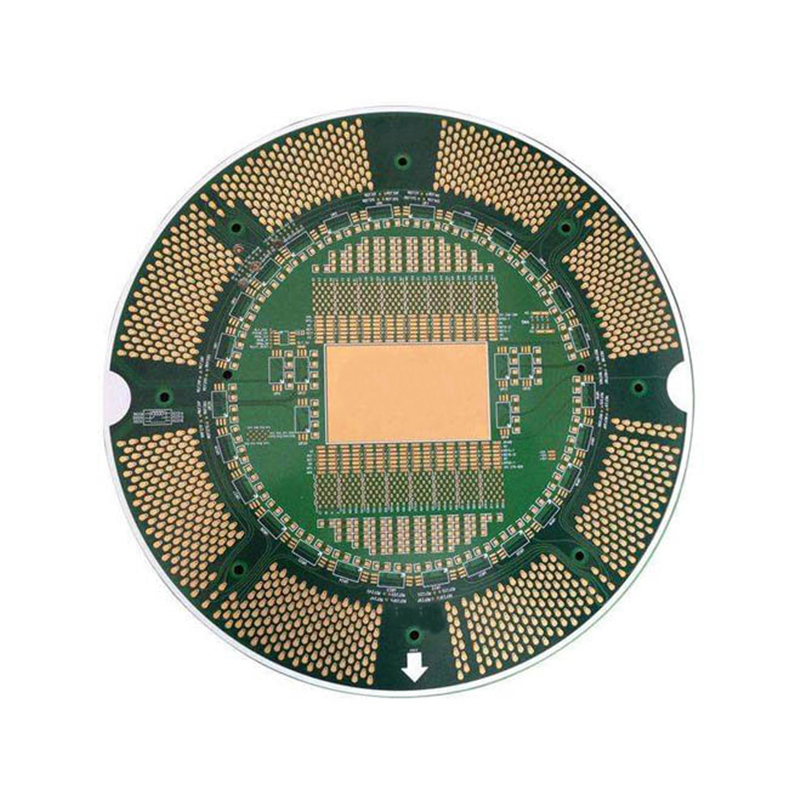

IC Chip Test PCB

Product Model: IC Chip Test PCB

Base Material: TU872SLS

PCB Layers: 20 Layers

Color Configuration: Green solder mask, white silkscreen

Finished Thickness: 2.0mm

Copper Thickness: 1OZ

Surface Treatment: Immersion Gold, deposited gold ≥ 3μm

Application: Integrated Circuit Chip Testing

Description
Data Sheet

IC (integrated circuit) chips must pass a complete series of strict performance, function and reliability tests before mass shipment and customer delivery. According to the package type, pin definition, electrical characteristics and test standards of different ICs, customized IC chip test PCB is developed and produced.

The chip under test is firmly fixed on the designated test area of the IC test PCB through sockets, positioning frames or welding methods. Cooperating with ATE testing machines, probe cards and aging test equipment, the IC test PCB serves as a professional and dedicated test platform for semiconductor chip verification.

Core Functions of IC Chip Test PCB

Provide accurate one-to-one electrical connection between the chip and test equipment for power distribution, signal input, signal feedback and data transmission;
Carry out targeted circuit design for different test items, including DC parameter testing, AC timing testing, functional verification, high-temperature aging and load screening;
Isolate digital, analog and radio frequency signals, suppress crosstalk, bottom noise and interference, and ensure test accuracy and stability;
Adapt to complex test environments such as high temperature, high current and long-term power-on aging.

Application Scenarios

Covers the whole semiconductor testing process:

CP wafer probing test
FT final packaged chip test
HTOL high-temperature operation life burn-in test
HAST accelerated humidity resistance test
Electrical parameter screening and mass production quality inspection

Design & Material Features

Adopt high‑TG, high‑temperature resistant FR4 or high‑speed low‑loss substrate materials to adapt to long‑term aging tests;
Support high‑density fine pitch wiring, independent power isolation and overcurrent protection design;
Reasonable ground division for digital, analog and RF circuits;
Reserved impedance matching design for high‑speed signals and complete decoupling capacitor layout to optimize PDN performance;
Meet high‑precision dimensional tolerance and stable plug‑in durability for repeated chip loading and unloading.

Industry Value

IC chip test PCB is an indispensable key carrier in the semiconductor testing industry. It standardizes test flows, improves detection efficiency, effectively screens defective chips, reduces subsequent packaging costs, and guarantees the consistency, stability and service life of finished integrated circuit products.

Maxipcb provides one-stop customized production of various IC chip test PCBs, meeting the high-precision, high-reliability and special environmental resistance requirements of semiconductor testing factories, IC design companies and packaging and testing manufacturers.
