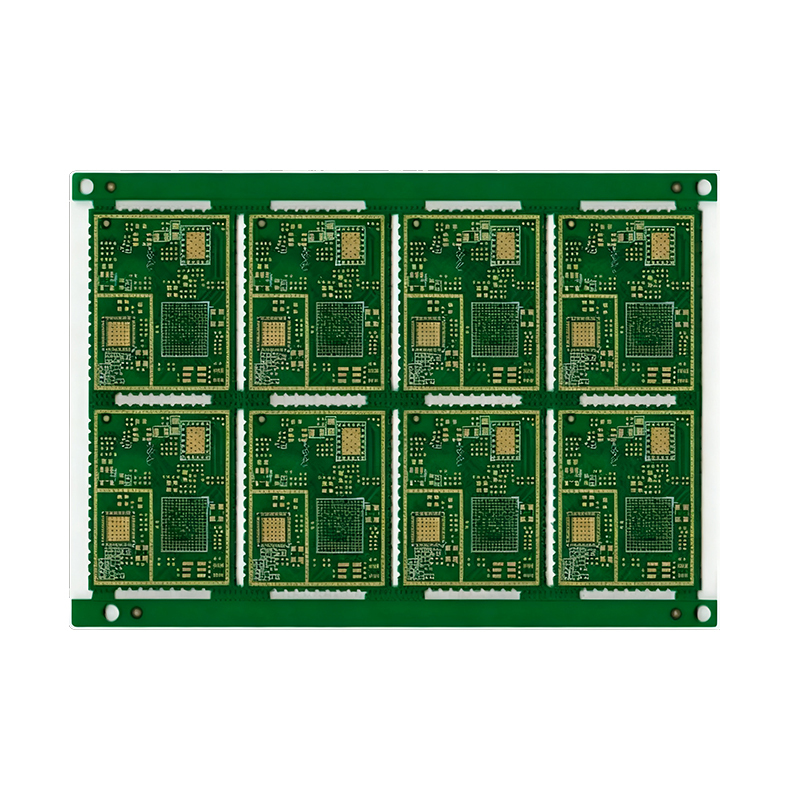

Half plated hole multilayer pcb for GPS Antenna module

Name: Half plated hole multilayer pcb for GPS Antenna module
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Product Model: Half-Plated Hole Multilayer PCB for GPS Antenna Module

Material: FR-4 Glass Epoxy Laminate

Layers: 2 Layers

Solder Mask Color: Green / White

Finished Board Thickness: 1.0 mm

Base Copper Thickness: 1 oz (35 μm)

Surface Finish: ENIG (Immersion Gold)

Minimum Trace Width: 4 mil (0.1 mm)

Minimum Trace Spacing: 4 mil (0.1 mm)

Product Feature: Adopts half-plated hole structural design

Application: GPS antenna module dedicated PCB

Get The Latest Quote

Description
Data Sheet

The automotive GPS communication terminal integrates a GSM/GPRS module, supporting connection with various manufacturers' G-Mouse via RS-232 interface. It features built-in Bluetooth and RFID interfaces, with the two modules designed as independent optional accessories for flexible configuration. Specifically applied to automotive scenarios, it ensures stable communication and strong adaptability to vehicle working environments.

Maxipcb is a high-tech enterprise specializing in R&D and production of high-end PCBs. As an industry forerunner, it independently launched the first automatic PCB quotation and ordering system, aiming to build an Industry 4.0 smart PCB factory via "Internet +" and provide professional, efficient integrated PCB technical and production services.

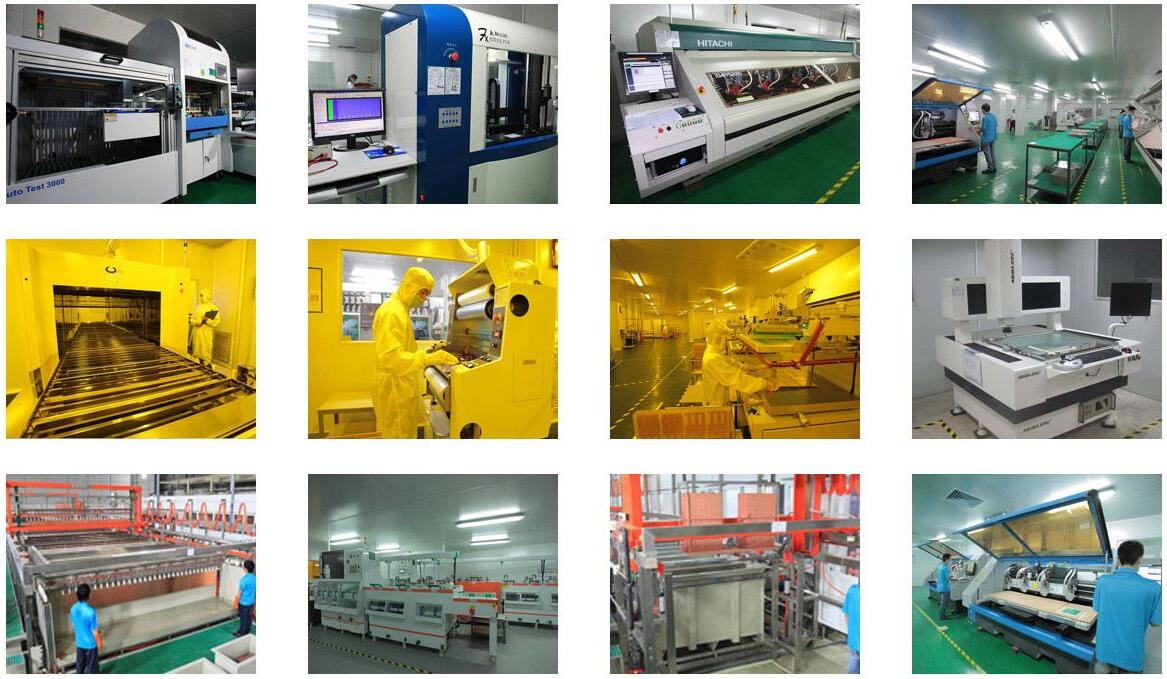

Maxipcb boasts comprehensive manufacturing capabilities, covering single-layer, double-layer, multilayer, high-TG FR-4, heavy copper, impedance-controlled, gold finger, gold-plated and customized PCBs. Its automotive-grade PCBs meet industry standards: high-TG FR-4 (TG≥150℃) for high-temperature resistance, 1oz-4oz copper thickness for heavy current transmission, 3mil/3mil minimum trace width/spacing for miniaturization, ENIG (≥2.5μm) for corrosion resistance, and strict temperature cycle (-40℃~125℃) & vibration testing, complying with IPC-6012 and AEC-Q100. All products are RoHS-compliant and environmentally friendly.

Maxipcb provides advanced PCB manufacturing services meeting the strict requirements of industries including Telecommunications, Medical, Military & Defense, Computer & Consumer Electronics, Automotive and LED Lighting, delivering high-quality PCB solutions for core equipment.

Model : Half plated hole multilayer pcb for GPS Antenna module

Material : FR4

Layer : 2Layers

Color : Green/White

Finished Thickness : 1.0mm

Copper Thickness : 1OZ

Surface Treatment : Immersion Gold

Min Trace : 4mil(0.1mm)

Min Space : 4mil(0.1mm)

characteristic : Half hole PCB

Application : GPS Antenna module pcb
