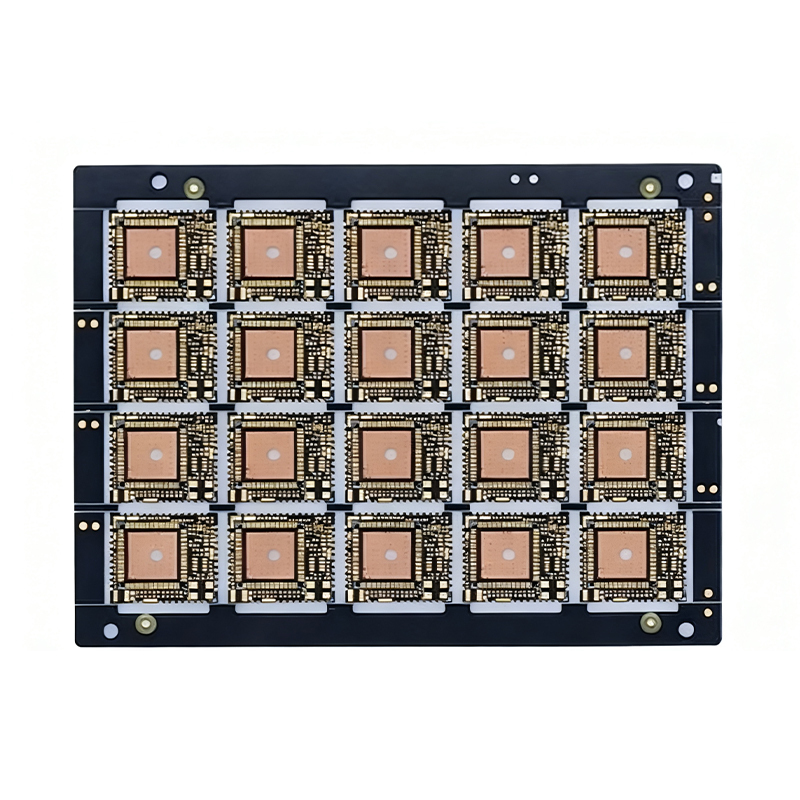

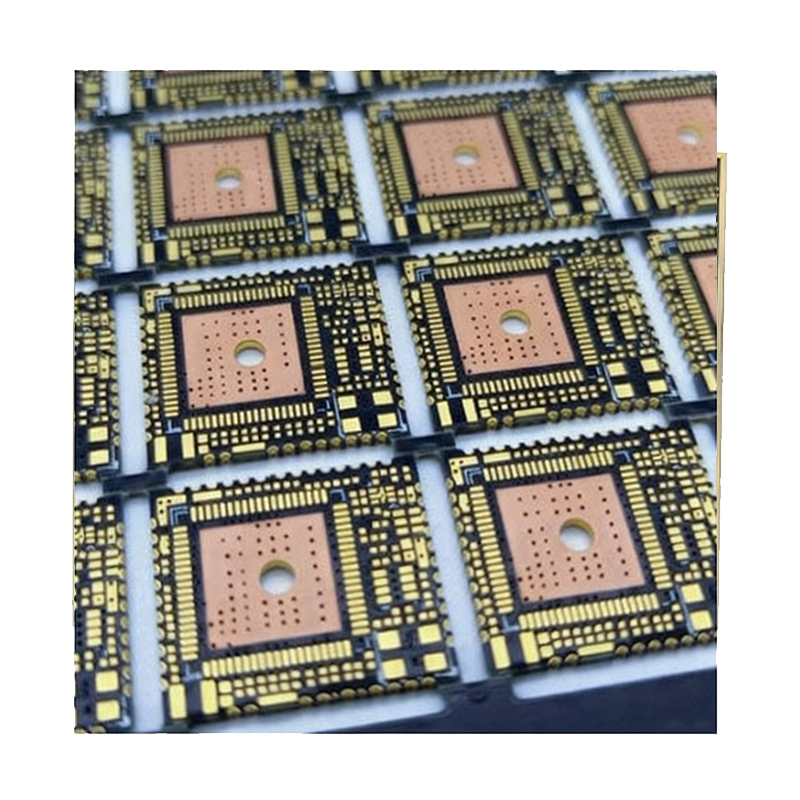

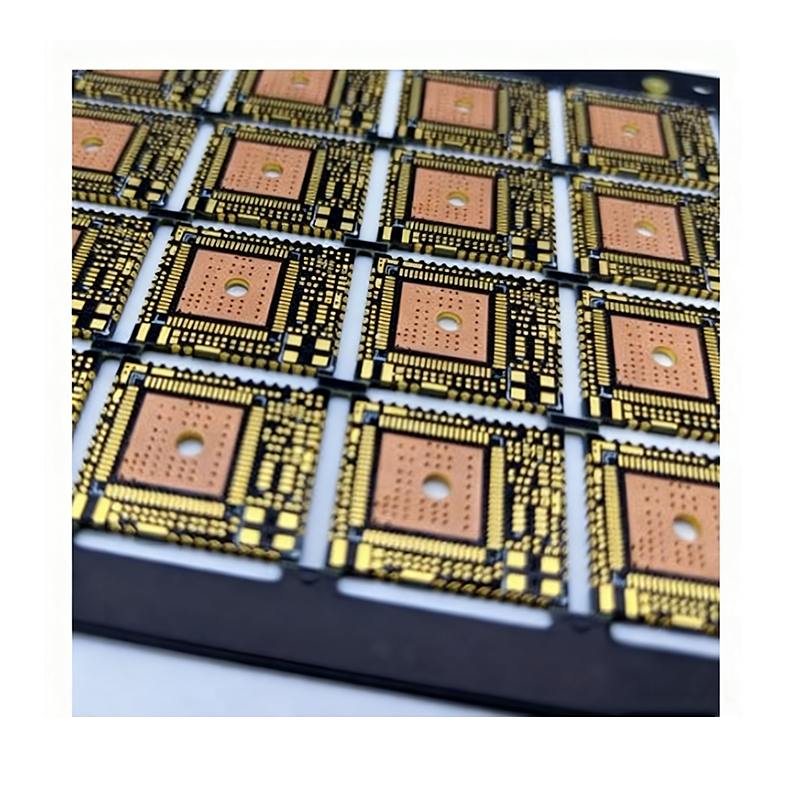

Half hole WiFi Module PCB

Name: Half hole WiFi Module PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Product Model: Half-Hole WiFi Module PCB

Base Material: Standard FR-4 Laminate

Layer Count: 4 Layers

Solder Mask Color: Black / White (Dual Optional)

Final Board Thickness: 1.0 mm

Copper Weight: 1 oz (35 μm)

Surface Finish: Electroless Nickel Immersion Gold (ENIG)

Minimum Trace Width: 4 mil (0.1 mm)

Minimum Trace Spacing: 4 mil (0.1 mm)

Core Feature: Features integrated plated half-hole structure, which guarantees stable and reliable electrical interconnection for WiFi module assembly

Target Application: Custom PCB assembly for 7668 project WiFi module

Get The Latest Quote

Description
Data Sheet

The WiFi module, often referred to as a serial UART WiFi module, resides within the IoT transmission layer. It is designed to convert serial or TTL level signals into embedded modules compliant with standard WiFi wireless communication protocols, integrating the IEEE 802.11b/g/n radio protocol stack and the TCP/IP protocol suite.

By embedding such WiFi modules, conventional hardware devices can achieve direct internet connectivity via wireless LAN, forming a key enabling component for wireless smart home, M2M communication, and various industrial IoT applications.

PCB designs supporting WiFi modules are typically categorized into three major architectures:

General-purpose WiFi Module PCBs
Represented by PCBs used in mobile phones, laptops, and tablets, these designs support USB or SDIO interface modules. The WiFi protocol stack and related drivers operate under operating systems such as Android, Windows, and iOS, relying on high-performance CPUs to fulfill application processing requirements.
Router-platform WiFi Module PCBs
Typically applied in residential gateway and router products, this scheme leverages chips equipped with high-capacity Flash and RAM resources, supported by the Linux operating system to run WiFi protocols and driver firmware.
Embedded WiFi Module PCBs
Based on 32-bit single-chip microcontroller architecture, these PCBs integrate onboard WiFi drivers and protocol stacks, with standard MCU interfaces including UART for external control. This type is widely adaptable to a diverse range of smart home and intelligent hardware products.

Maxipcb is a professional manufacturer focusing on high-precision PCB and PCBA solutions for IoT, wireless communication, and smart hardware applications. With rich experience in WiFi module PCB manufacturing, the company supports half-hole structure, impedance control, miniaturized routing, and high-density pad design to meet the electrical performance and assembly reliability requirements of different WiFi module architectures.

Adhering to strict quality standards and Industry 4.0 intelligent production, Maxipcb provides customized R&D, prototyping, and mass production services, delivering stable and reliable PCB products for smart home, M2M, communication modules and other IoT terminal applications.

Model : Half hole WiFi Module PCB

Material : FR4

Layer : 4Layers

Color : Black/White

Finished Thickness : 1.0mm

Copper Thickness : 1OZ

Surface Treatment : Immersion Gold

Min Trace : 4mil(0.1mm)

Min Space : 4mil(0.1mm)

characteristic : Half hole PCB

Application : 7668 project wifi module pcb
