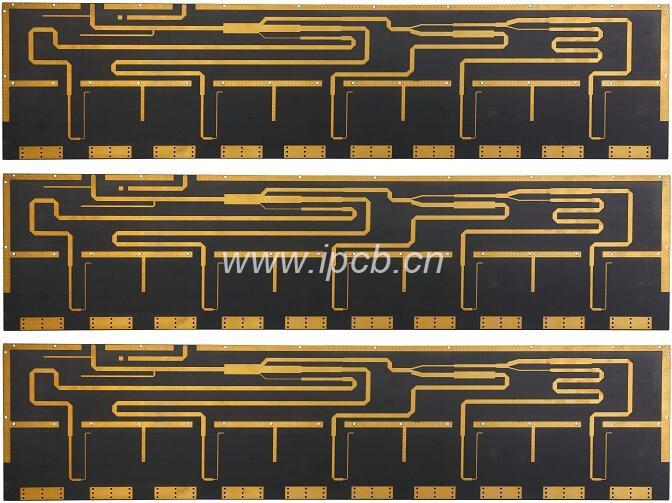

F4BM-2 PTFE Microwave Printed Circuit Board

For more technical information about F4BM, please visit: F4BM Technical Specifications

Dimensions (mm):12''x10''(300x250mm), 14''x15''(350x380mm), 17''x22''(440x550mm), 18''x24''(460x610mm), 20''x20''(500x500mm), 20''x24''(500x600mm), 33''x33''(840x840mm), 24''x36''(610x914mm)

Special dimension can be customized according to customer’s requirement.

Dielectric constant(@ 10GHz): 2.2, 2.55, 2.65,3.0

ipcb Company introduction

ipcb company specialized with the RFPCB manufacturingfor more than 17 years in China. We know how much the proper RF material would affect to the performance of the board .The parameters such as RF microwave energy levels,operating frequency, operating temperature range,current and voltage are of great importance when choosing the suitable material for the high frequency PCB fabricating. Getting familiar with those RF PCB material is one of our job,Check below material listing for refer. We have enough of them in stock to ensure the fast delivery.The confidence towards our product quality is from our experiences engineers / production team, They cooperate closely with our QA department to provide a qualified product, We didn’t expect to achieve a big thumb from our customers, But more and more repeat orders speak out the satisfaction of them. Quality is the core value of our company, We know the importance of quality for a long-term business, Thanks very much to our customers that accompany with us to developed / improved our capacity and technical field for the past 17 years.

RF/Microwave PCB material:

Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and etc.

Arlon / Isola / Taconic / PTFE F4BM / Teflon material also shouldn’t be forgotten.

Hybrid PCB material (Mixed dielectric / Laminate)

Rogers RO4350B + FR4 / RO4350B + IT180 / RO4003C + FR4 / RO3010 + FR4 / RO3003 + FR4 / RO3010 + FR4 etc.

Radio Frequency (RF) microwave PCB application

RF Microwaves PCBs (printed circuit board) are used in various of fields, Such as Consumer Electronics / Military/Space / High power / Medical / Automotive / Industrial ect.
