Dark Blue 2 layer PCB Fabricating

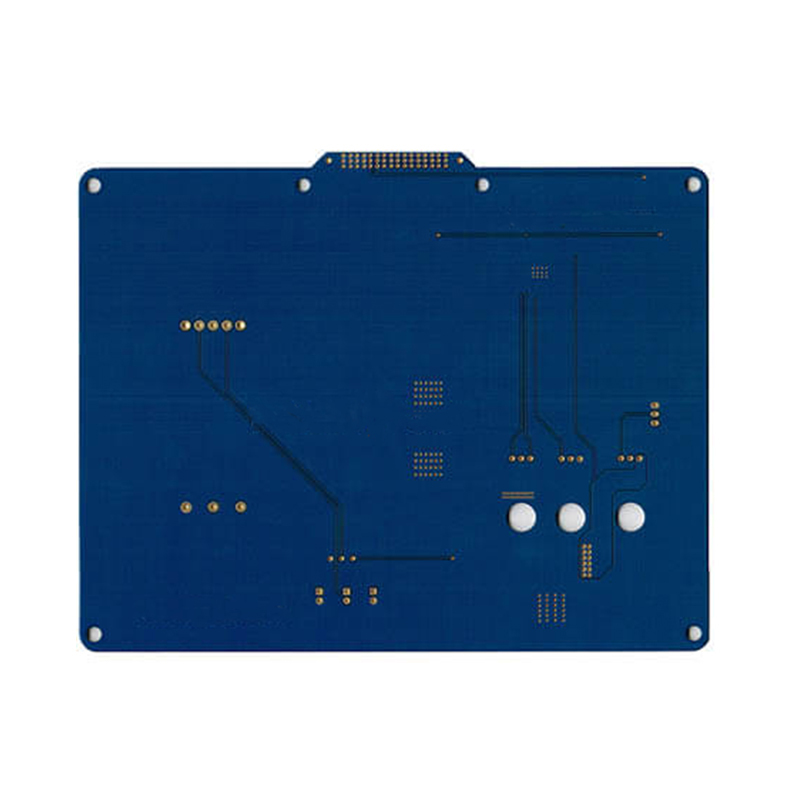

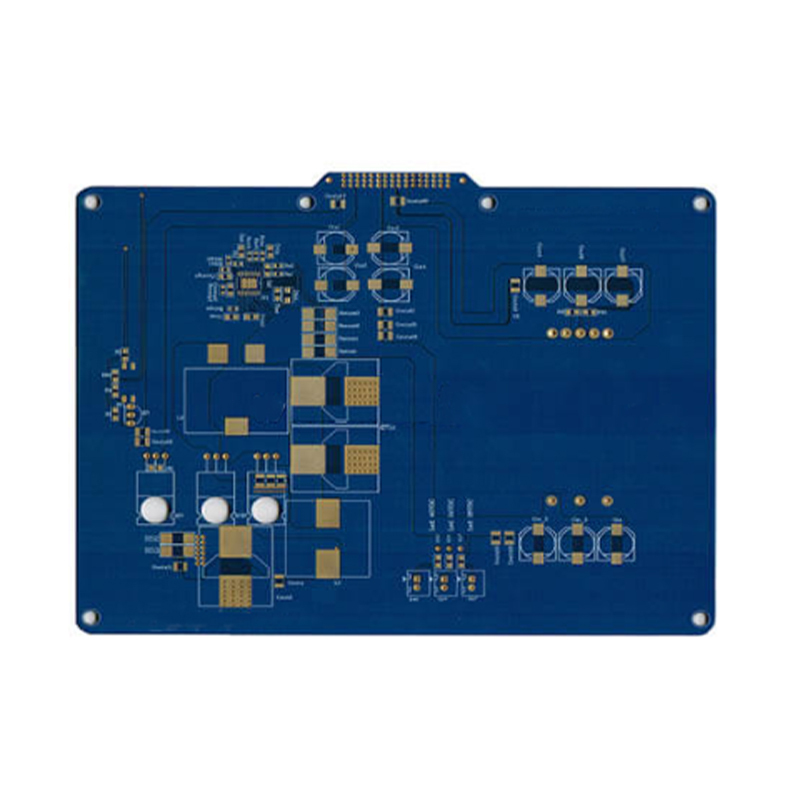

Product Model: Dark Blue 2-Layer PCB
Base Material: FR4
PCB Layers: 2 Layers
Solder Mask Color: Dark Blue / White
Finished Thickness: 1.2mm
Copper Thickness: 1oz
Surface Treatment: Immersion Gold
Min. Trace Width: 4mil (0.1mm)
Min. Line Spacing: 4mil (0.1mm)
Application: Digital Circuit PCB

  • Dark Blue 2 layer PCB Fabricating
  • Dark Blue 2 layer PCB Fabricating
  • Description

  • Data Sheet

Maxipcb is a professional PCB manufacturer based in China, focusing on dark blue 2-layer PCB fabrication and high-frequency RF PCB mass production for more than 17 years. We deeply recognize that high-performance raw materials are the core premise of stable RF circuit operation. Key indicators including microwave power rating, operating frequency, temperature resistance range, rated current and voltage must be fully evaluated during high-frequency substrate selection, to ensure overall RF signal performance and product stability.
We maintain sufficient inventory of mainstream high-frequency dielectric materials to support rapid prototyping and short lead-time mass delivery. Our technical strength relies on experienced R&D engineers and refined production teams, who cooperate closely with the professional QA system to implement full-process quality control. Stable product quality and reliable delivery have won continuous recognition from global clients, reflected by growing repeat orders and long-term strategic cooperation. Adhering to quality-oriented operation philosophy, Maxipcb keeps optimizing manufacturing processes and technical capabilities, with 17 years of industry accumulation to support diversified high-frequency PCB customized demands.

Comprehensive Manufacturing Capabilities

Surface Finishing Options

OSP, ENIG, lead-free HASL, hard gold plating, flash gold, immersion tin, immersion silver and electrolytic gold plating.

Process Support

Golden finger processing, heavy copper circuit, blind & buried via fabrication, impedance control, resin hole filling, carbon ink printing, backdrilling, countersink, depth-controlled drilling, half-plated holes, press-fit holes, peelable blue solder mask, thick copper PCB and oversized board customization.

High-Frequency RF Substrate Materials

Rogers series:RO4350B、RO3003、RO4003、RO3006、RT/Duroid 5880、RT5870
Arlon, Isola, Taconic, PTFE F4BM and Teflon high-performance dielectric materials.

Available Layer Count

2L–30L multilayer PCB mass production and prototyping.

Common Dielectric Constant (DK)

2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2



Core Application Fields

Consumer electronics, aerospace & military equipment, antenna communication systems, high-power devices, medical equipment, automotive electronics, industrial control terminals, cellular handheld devices, Wi-Fi antenna modules, vehicle infotainment, radar systems and power amplifier hardware.

Core Advantages of Printed Circuit Boards

The wide application of PCBs stems from multiple unique structural and technical strengths:
  1. High Density Integration
    Keeps pace with advanced IC integration and SMT mounting technology, realizing ultra-fine circuit layout and high-density interconnection.
  2. Long-Term Reliability
    Strict aging tests, electrical performance detection and reliability verification ensure stable service life up to 20 years.
  3. Customized Design Flexibility
    Targeted design for electrical, physical, chemical and mechanical requirements, supporting standardized and personalized development with short R&D cycles.
  4. Scalable Manufacturability
    Adopt standardized automated production and modern management to guarantee consistent quality for mass orders.
  5. Complete Test & Verification System
    Equipped with professional testing equipment and unified inspection standards to conduct comprehensive eligibility evaluation and life cycle detection.
  6. High Assembly Compatibility
    Suitable for automatic assembly and large-scale batch production, supporting modular combination to realize complete system integration.
  7. Convenient Maintenance
    Standardized component and circuit design enables rapid replacement and quick fault recovery for terminal equipment.
In addition, PCBs feature lightweight, miniaturized structure and excellent high-speed signal transmission performance, fully adapting to the upgrading trend of modern electronic products.
Maxipcb provides cost-effective customized production services for dark blue 2-layer PCB in large volumes, combining competitive pricing, strict quality control and efficient after-sales service to meet diverse customer production demands.

Model :  Dark Blue  2 layer PCB Fabricating

Material :  FR4

Layer :  2Layers

Color : Dark blue/White

Finished Thickness :  1.2mm

Copper Thickness :  1OZ

Surface Treatment :  Immersion Gold

Min Trace :  4mil(0.1mm)

Min Space :  4mil(0.1mm)

Application : Digital pcb
