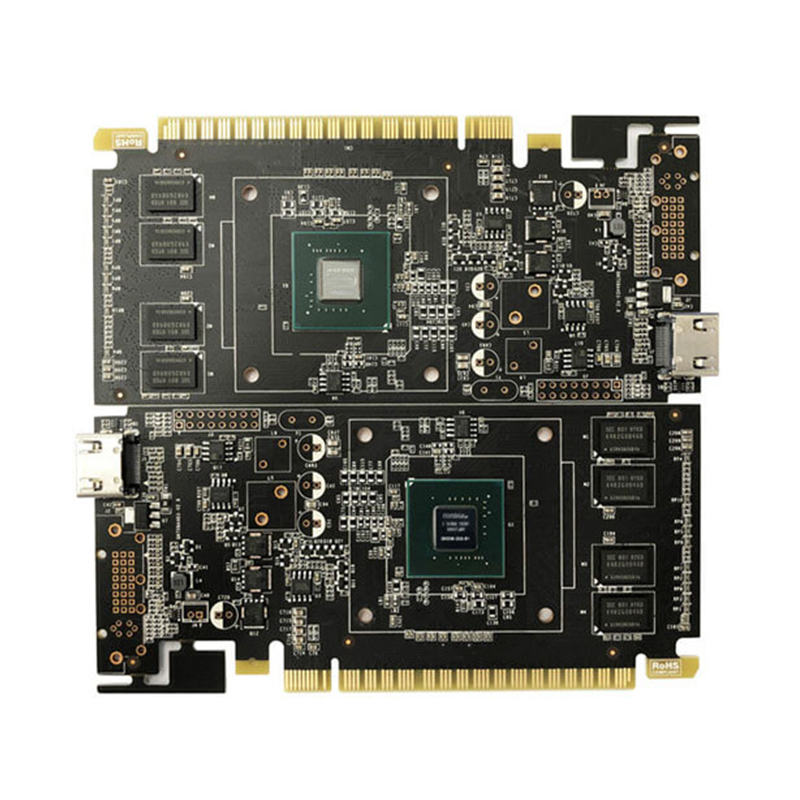

Name: Computer Graphics PCBA
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

PCBA is a systematic engineering solution that integrates circuit design, bare board fabrication, component selection and precision assembly. It serves as the core component carrier and signal transmission hub of electronic equipment, whose overall quality directly governs the stability, durability and operational performance of end products. Driven by high-density circuit miniaturization and global lead-free, halogen-free environmental mandates, modern PCBA manufacturing faces common quality risks including insufficient soldering wetting, substrate blistering, board delamination and conductive anodic filament (CAF) failure. Systematic research on failure mechanisms enables standardized process optimization, effectively avoiding recurring defects and stabilizing mass production quality.

Maxipcb supports multi-process customized assembly to meet diverse industrial demands. Our technical coverage includes SMT surface mount processing, conventional THT wave soldering, hybrid SMT&THT combined assembly, and advanced THR through-hole reflow technology. Flexible soldering options cover both lead-containing and RoHS-compliant lead-free processes. We also provide full-lifecycle component procurement services via centralized supply chain advantages, helping clients simplify project coordination and control comprehensive costs.

Core PCBA Service Portfolio

24-hour expedited assembly for rapid prototyping
Full turn-key, partial turn-key and consignment manufacturing
BOM sorting, technical document arrangement and data customization
Cost-optimized component sourcing and supply chain management
AOI automated optical inspection for SMD soldering quality verification
High-precision assembly for fine-pitch devices (BGA, QFN, QFP, MicroSpeed connectors)
Standardized professional handling for MSL ≥ 3 moisture-sensitive components
Full RoHS-compliant lead-free assembly solutions
Dual-process support for leaded and lead-free production
Manufacturing and full conformance testing per IPC-A610 Class 2
High-precision SMD production equipment for high-density circuit processing

Application Scenarios

Graphics Hardware R&D & Prototype Validation

In computer graphics hardware research and development, high-reliability PCBA is essential for prototype testing and technical verification. Supported by high-layer high-density PCB fabrication and precision prototype processing, our assembly solution adapts to compact high-performance graphics circuits with fine-pitch components. Combined with automated inspection and multi-stage functional testing, it accelerates R&D iteration, quickly locates design defects, and shortens the development cycle of graphics computing products.

High-Density Graphics Card & Multimedia Mass Production

Our PCBA solutions are widely applied to high-density graphics cards and intelligent multimedia devices, where space compression and long-term operational reliability are critical. Adaptable to complex assembly requirements such as moisture-sensitive component management and mixed soldering processes, all production strictly complies with IPC industrial specifications and RoHS environmental regulations. Matched with flexible quick-turn production and standardized material procurement mechanisms, it ensures stable mass production efficiency, complete product traceability, and consistent operational stability for high-load computing and visual display equipment.

FAQ

Q1: What comprehensive assembly solutions do you provide for graphics hardware PCBA?

We offer full-process customized services covering SMT, THT and THR technologies for complex multilayer boards, including prototype proofing, turn-key mass production, automated quality inspection and one-stop component procurement, to deliver high-stability graphics-dedicated PCBA products.

Q2: Is fine-pitch component customized assembly available?

Yes. We support precision placement and soldering of high-density chips such as BGA, QFN and QFP, with standardized management of moisture-sensitive components. All processes comply with IPC-A610 Class 2 industrial specifications to ensure assembly accuracy.

Q3: What quality systems and testing measures guarantee product reliability?

All production follows ISO9001 and IPC-A610 Class 2 management standards. AOI visual inspection and functional testing are implemented throughout the process. Customized testing procedures and video-based quality records are also acceptable to meet personalized verification requirements.

Q4: How to ensure environmental compliance in assembly production?

All assembly lines implement strict RoHS compliance control. Dual soldering configurations of lead-free environmental protection and traditional leaded processes are optional, meeting global hazardous substance restriction standards while maintaining industrial-grade circuit reliability.

With rich practical experience in PCBA quality assessment and failure analysis, our professional engineering team provides targeted technical support and rapid defect resolution for customers, helping enterprises reduce R&D risks and seize market opportunities.

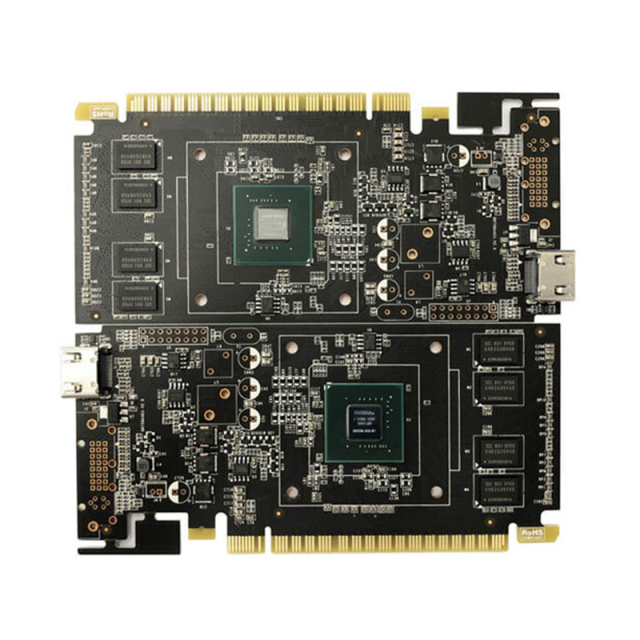

Computer Graphics PCBA

Layers: 6Layers

Surface Process: Immersion Gold

Black Solder mask

PCB Testing : Yes

PCBA Testing : Yes

Provide PCB Manufacturing : Yes

Maxipcb Provide full electronic components.

PCBA Testing : Yes ( Customer Provide testing step with video )

RoHS compliant lead-free assembly
