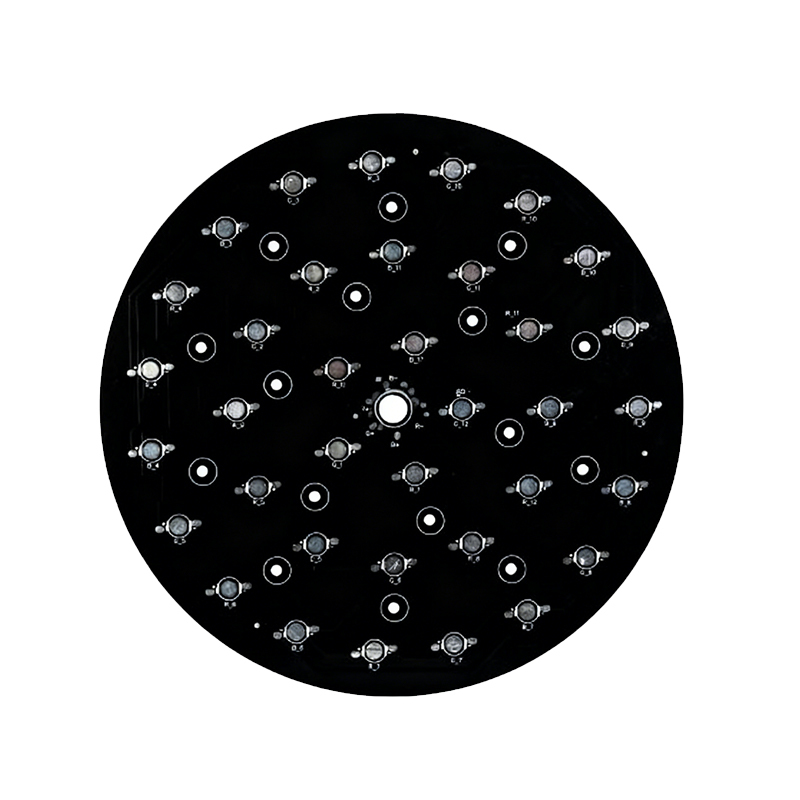

Name: Black color single side aluminium PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

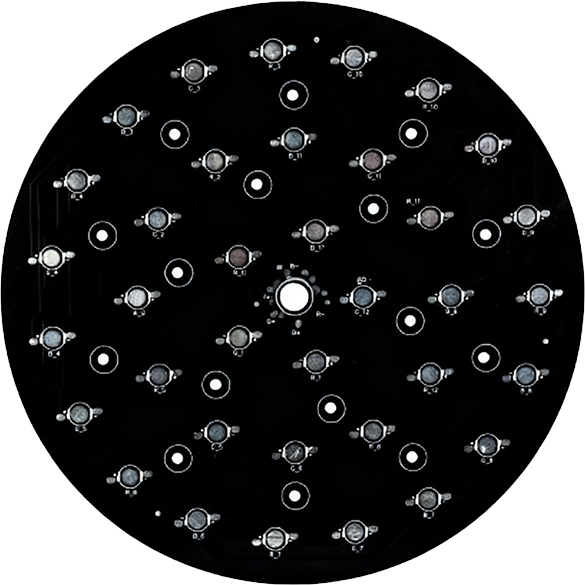

Black color single side aluminium PCB

Product Model: Black Color Single-sided Aluminium PCB

Base Material: Aluminum Substrate

PCB Layers: 1 Layer

Solder Mask Color: Black / White

Finished Thickness: 1.2mm

Copper Thickness: 1OZ

Surface Treatment: Lead-free HASL

Thermal Conductivity: 1.0 W/m·k

Application: LED desk lamp PCB

Description
Data Sheet

Aluminum based PCB is a typical metal base circuit board with excellent thermal dissipation performance. The conventional single-sided structure is composed of three laminated layers: patterned copper foil circuit layer, intermediate insulating medium layer and metal base layer. This substrate is highly prevalent in LED lighting applications. It adopts dual-side differentiated design: the white coated surface is reserved for LED pin soldering, and the reverse side retains natural aluminum metal texture. In practical assembly, thermal grease is applied on the aluminum base to closely connect with heat dissipation structures and realize efficient heat transfer. In addition, ceramic substrate PCB is also available as a high-performance alternative for high-temperature working conditions.

LED-specific aluminum substrate is a customized printed circuit board with aluminum alloy as the base material. Traditional general electronic circuit boards mainly adopt glass fiber substrates. Given the high heat output of LED chips, aluminum substrates become the preferred solution for lamp products due to fast thermal conduction, while glass fiber boards are still widely used in ordinary electronic and electrical equipment.

LED aluminum substrate PCB

Operating Principle of Aluminum Based PCB

Power components are mounted on the surface circuit layer. When electronic devices operate continuously, the heat generated by core components is quickly transmitted to the metal base through the insulating layer. Relying on the high thermal conductivity of the aluminum base, heat is evenly diffused and exported, so as to realize continuous cooling and stable heat dissipation for components.

Production and Performance Characteristics

Compared with traditional FR-4 substrates, aluminum based PCB greatly reduces thermal resistance and achieves outstanding thermal conductivity. In contrast to thick-film ceramic circuits, it delivers more reliable mechanical properties and structural toughness.

Meanwhile, aluminum based PCB owns multiple distinctive strengths:

Comply with RoHS environmental protection standards;

Feature excellent adaptability to SMT surface mounting processes;

Optimize thermal diffusion through professional circuit design, reduce module operating temperature, extend service life, and improve power density and equipment reliability;

Simplify overall structure by reducing redundant radiators and thermal accessories, miniaturize product size, lower procurement and assembly costs, and support integrated layout of power and control circuits;

Replace fragile ceramic substrates to enhance mechanical impact resistance and long-term structural stability.

Application Range

Power hybrid integrated circuit (HIC)
Audio equipment: including input and output amplifiers, balanced amplifiers, preamplifiers and power amplifiers
Power supply equipment: switching regulators, DC/AC converters and switching power modules
Communication electronics: high-frequency amplifiers, filter components and signal transmitting circuits
Office automation equipment: motor drive modules
Automotive electronics: electronic regulators, igniters and power control units
Computer equipment: CPU boards, disk drives and built-in power supplies
Power electronic modules: converters, solid-state relays and rectifier bridges
Lighting industry: With the popularization of energy-saving products, various high-efficiency LED lamps have occupied a large market share, and LED aluminum substrates have achieved large-scale batch application in the lighting industry.

Model : Black color single side aluminium PCB

Material : aluminum base

Layer : 1Layers PCB

Color : Black/White

Finished Thickness : 1.2mm

Copper Thickness : 1OZ

Surface Treatment : Lead-free HASL

Thermal Conductivity : 1.0w/m.k

Application : LED desk lamp PCB
