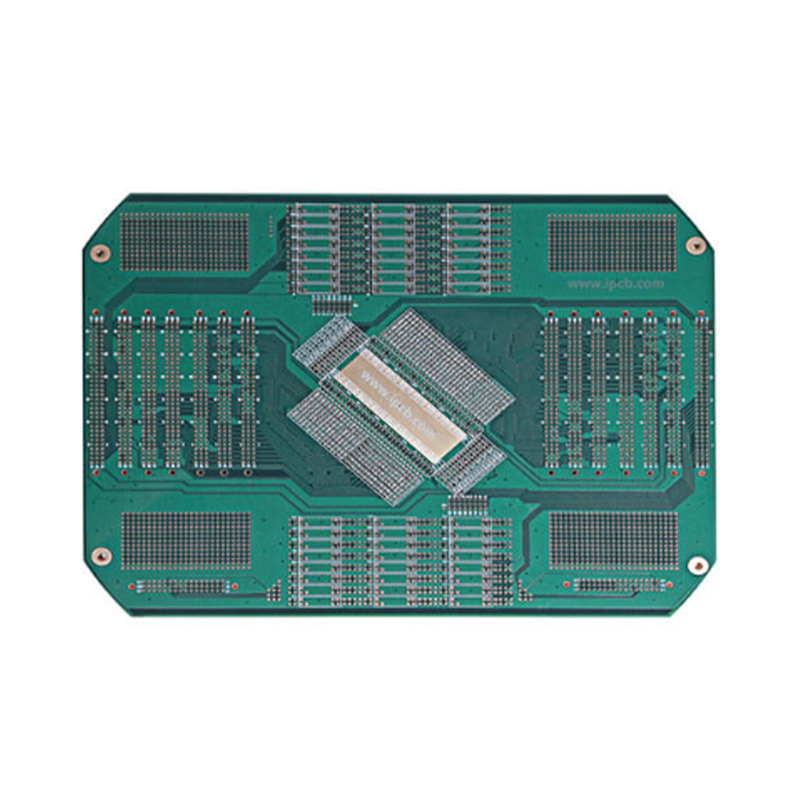

ATE chip test PCB

Product Model: ATE Test Chip PCB
Base Material: Isola 370HR
PCB Layers: 12 Layers
Solder Mask Color: Green
Board Thickness: 3.0mm
Surface Technology: Immersion Gold (5μm)
Copper Thickness: Inner Layer 2OZ, Outer Layer 1OZ
Application: ATE chip testing

  • ATE chip test PCB
  • Description

  • Data Sheet

ATE stands for Automatic Test Equipment, which is dedicated to IC chip testing. The dedicated circuit board matched with ATE equipment is defined as ATE test chip PCB.
ATE integrates massive semiconductor testing functions and is uniformly controlled by a host computer to complete comprehensive functional verification of semiconductor chips. It is a complete test system combining professional hardware and customized test software.

Product Advantages

Innovative Design for Integration and Flexibility

The structural design of this ate test board manufacturer product incorporates multiple layers finely tuned for electrical performance and mechanical stability. Its modular approach allows adaptation across diverse test environments supporting different chip types and configurations. By combining high-density routing with low-noise considerations, the board ensures precise functionality and compatibility with automatic test equipment pcb systems. Immersion Gold surface finishing enhances contact reliability, reducing wear during repeated probing cycles. The integration-focused architecture enables coherent system operation that supports complex test array implementations without compromising signal fidelity.

Optimized Testing Performance and Operational Efficiency

From a performance standpoint, the chip test pcb delivers consistent low electrical interference, a prerequisite for accurate semiconductor device characterization. Its robust construction and surface technology reduce signal degradation, improving test repeatability and data reliability. The multilayer layout also facilitates thermal management vital during high-current and high-frequency assessments. Additionally, the design supports straightforward installation and maintenance, minimizing downtime in production lines. By enabling comprehensive chip testing with precision, this solution advances overall yield management and accelerates product qualification processes, delivering clear industrial value to automatic test equipment pcb users.



Semiconductor Industry Complete Process

All semiconductor products go through three core industrial links:
  1. IC Design
  2. Wafer Manufacturing
  3. Chip Packaging

Two Core Test Nodes for All Chips

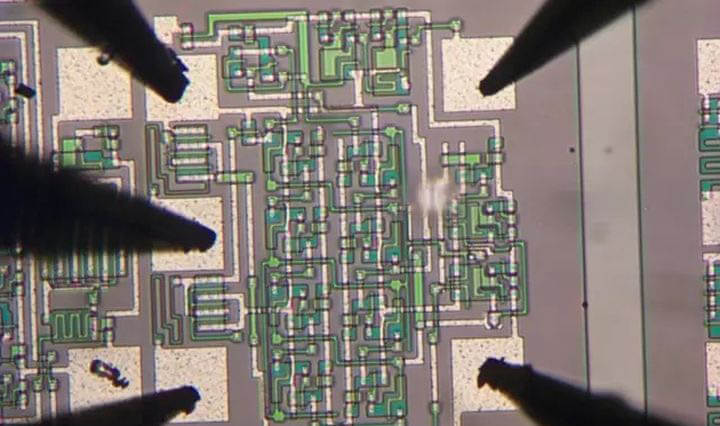

  1. CP (Chip Probing)
    Also known as the probe test stage, testing is performed on bare wafers before packaging.
  2. FT (Final Test)
    Finished product testing after chip packaging. Test methods and standards vary significantly according to different chip types.

Common Chip Classification

  1. Analog Chip
    Uses continuous analog signals as the core, serving as the perception interface for physical quantities such as sound, light, electricity and temperature in the physical world.
  2. Digital Chip
    Transmits data through discrete digital signals, represented by microprocessors, logic chips, etc.
  3. Mixed-Signal Chip
    Integrates analog circuit and digital circuit functions, such as DSP, SoC and mainstream composite control chips.
  4. Memory / High-Speed Bus Chip
    With complex test items and special high-frequency, high-speed and high-current customized test requirements.




CHIPTEST



Test chip

Composition of Chip Test System

  1. Tester (ATE host equipment)

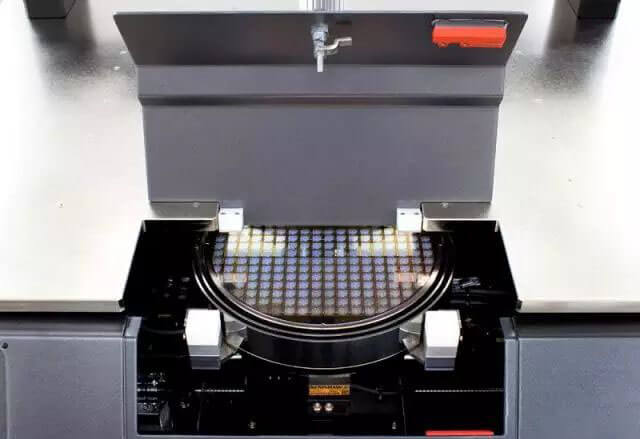

  2. DIB / Probe Card (interface board and probe fixture)
  3. Handler (automatic sorting and feeding equipment)
  4. Test Software (developed with exclusive languages and modules for different equipment platforms)

Working Principle of Chip Test System

  1. The ATE tester outputs standard excitation signals and test patterns according to the compiled test program, and inputs them into the DUT (device under test);
  2. The chip feeds back corresponding output signals according to inherent logic and functional characteristics;
  3. The test system compares the actual output data with the pre-set standard threshold;
  4. Products within the tolerance range are judged as qualified, and out-of-spec products are marked as failed;
  5. Graded Bin testing is implemented within the qualified error range to classify product performance;
  6. The full-coverage test is completed by adjusting parameters such as voltage, current and timing, to realize chip debugging, parameter characterization and mass screening.

Taking Memory IC as an Example: Standard Test Items

DC Parameter Test

Open/short circuit detection of signal pins and power pins, standby current, operating ICC current and leakage current testing.

AC Parameter Test

Core timing indicators such as TCAC (column access time).

Timing Test

Setup time, hold time, signal propagation delay and overall timing calibration.

Mainstream ATE Equipment by Chip Application

Memory IC Tester

ADVANTEST T55xx / T53xx series
Nextest Magnum series
Credence Kalos
Verigy V4000 / V5000 / V93000 HSM series
KingTiger KT2 / KT3

Digital / Mixed-Signal / SoC Chip Tester

Teradyne Tiger / Flex / J750 / Catalyst series
Credence Sapphire / Quarter / SC series
Schlumberger EXA 2X00 series
Verigy V93000 SoC series
Agilent 94000 series
ADVANTEST T2000 / T65xx / T67xx series

LCD Driver Chip Tester

Yokokawa TS67xx series
ADVANTEST T63xx series
Spea C3320

RF Chip Tester

Credence ASL-3000 series
LTx Fusion CX series
Agilent 84000 series
ADVANTEST T7611

Memory Chip Functional Test Items

Basic conventional tests:
  • Read Cycle
  • Write Cycle
  • Fast Page Mode / EDO Mode Verification
  • March Row / March Column Algorithm Test
Extended special test items:
Checkboard, Butterfly, Diagonals, Moving Inversion and other anti-interference & stability verification.

General Universal Test Items for All Chips

Whether for memory, analog, digital or RF chips, the core test modules are consistent:
  1. Contact & continuity test (open / short circuit)
  2. DC electrical parameter test
  3. AC timing & high-speed signal test
  4. Digital logic function test
  5. Mixed signal & analog performance test
Maxipcb specializes in high-precision ATE test board, DIB interface board and probe card matching PCB manufacturing, meeting the high-density, high-speed, low-noise and high-reliability production requirements of semiconductor testing industry.


FAQ

What materials do you use to manufacture the ATE Chip Test PCB?

We use Isola 370HR as the base material combined with advanced Immersion Gold surface technology for the ATE Chip Test PCB. This ensures high durability, excellent signal integrity, and reliable performance in demanding semiconductor testing environments.

Can you customize the ATE Chip Test PCB to fit specific Automatic Test Equipment requirements?

Yes, we provide tailored solutions for the Automatic Test Equipment PCB needs of our clients. Our multi-layer designs and precise circuit layouts can be adjusted to meet various custom testing protocols, ensuring seamless integration with your ATE system.

How do you ensure quality and reliability in your chip test PCBs?

Our production follows strict IPC standards and uses imported precision equipment. Supported by a highly skilled technical team, each chip test PCB undergoes rigorous quality checks to guarantee performance, low electrical noise, and consistent test accuracy.

What logistics and delivery options are available for international buyers?

We serve customers globally, including regions like Taiwan, South Korea, and the United States. We coordinate dependable shipping and provide tracking support to ensure timely delivery of your ATE Chip Test PCB and other PCB products. Contact us to discuss your specific shipping requirements.

Model :  ATE test chip PCB

Material :  isola 370hr

Layer :  12Layers

Color : Green

Board Thickness: 3.0mm

Surface technology: Immersion Gold(5U)

Copper thickness: inner layer 2OZ, outer layer 1OZ

Application : ATE chip test PCB
