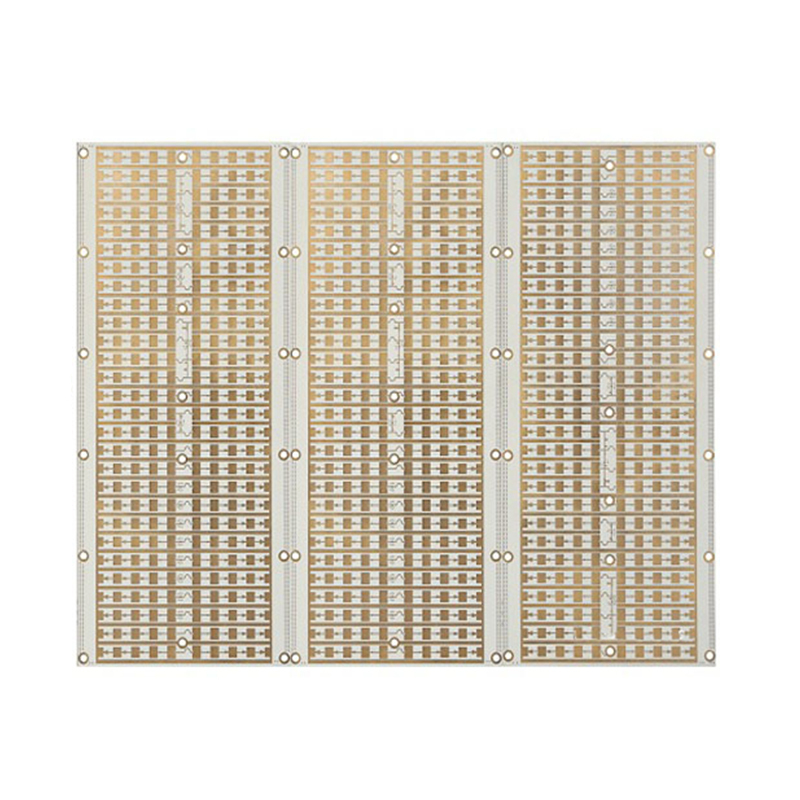

Name: 8 Layer RF PCB Rogers RO4350B + FR4 Hybrid Board
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

8 Layer RF PCB Rogers RO4350B + FR4 Hybrid Board

Product Model: RO4350B Ceramic-filled High-Frequency Hybrid PCB

Material System: Rogers RO4350B & FR4 Composite Laminate

Layer Structure: 8-layer printed circuit board

Dielectric Constant (Dk): 3.48

Finished Board Thickness: 2.5 mm

Base Dielectric Thickness: 0.338 mm

Copper Weight: 1 oz

Thermal Conductivity: 0.69 W/(m·K)

Flammability Rating: UL 94V-0

Surface Finish: Immersion Gold (ENIG)

Application: Communication instrumentation & RF equipment

Description
Data Sheet

PCBs manufactured by Maxipcb are extensively applied in aerospace systems, wireless communications, high-speed digital transmission circuits and other high-end sectors. Our products also serve a wide spectrum of end-use industries including computing equipment, industrial control, communication devices, automotive electronics and consumer appliances.

Company Introduction

Maxipcb is a professional manufacturer dedicated to RF and microwave PCB fabrication in China with more than 17 years of industrial expertise. We fully recognize the critical impact of high-performance RF substrate materials on the electrical performance and operational stability of finished circuit boards. During the development and production of high-frequency PCBs, key parameters including RF microwave power level, operating frequency band, temperature tolerance range, rated current and voltage endurance are comprehensively evaluated to select the optimal laminate material.

In-depth mastery of the performance characteristics of various RF microwave substrates is one of our core technical strengths. A complete range of high-frequency base materials is maintained in sufficient inventory to support efficient order fulfillment and prompt delivery. Our consistent product quality is guaranteed by an experienced engineering team and professional production personnel, who work closely with the quality assurance department to deliver reliable and compliant finished products.

Customer recognition is objectively reflected in continuous repeat orders, which we regard as the most valuable endorsement. Quality is the core value of our enterprise, as we understand that stable and reliable quality is the cornerstone of sustainable long-term business partnerships. We sincerely appreciate the trust and support from global customers over the past 17 years, which has continuously driven the upgrading of our manufacturing capacity and technical capabilities.

RF & Microwave PCB Laminate Materials

Rogers series: RO4350B, RO3003, RO4003, RO3006, RT/Duroid 5880, RT5870
Other high-performance microwave materials: Arlon, Isola, Taconic, PTFE F4BM, Teflon series substrates

Hybrid Mixed Dielectric PCB Materials

Rogers RO4350B + FR4, RO4350B + IT180, RO4003C + FR4, RO3010 + FR4, RO3003 + FR4 and other composite laminate structures

Application Fields of RF Microwave PCBs

RF and microwave printed circuit boards are widely deployed across diversified industries including consumer electronics, military & aerospace, high-power equipment, medical devices, automotive electronics and industrial control systems.

Surface Finishing Options

OSP, ENIG, lead-free HASL, electroplated hard gold, flash gold, immersion tin, immersion silver, electrolytic gold

Processing & Manufacturing Capabilities

Gold fingers, heavy copper circuits, blind and buried vias, controlled impedance, resin plugging, carbon ink printing, back drilling, countersinking, depth-controlled drilling, half-plated holes, press-fit holes, peelable blue mask, peelable solder mask, thick copper design, oversized board fabrication

Supported Layer Count

2L, 4L, 6L, 8L, 10L, 12L, 14L, 16L, 18L, 20L, 22L, 24L, 26L, 28L, 30L

Dielectric Constant (Dk) Range

2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15, 10.2

Typical End Applications

Consumer electronics, military & aerospace, antenna & communication systems, high-power modules, medical equipment, automotive electronics, industrial control, handheld communication terminals, cellular devices, Wi-Fi antennas, telematics & infotainment systems, network & computing equipment, radar systems, power amplifiers

Model: RO4350B Ceramic Hybrid High Frequency PCBMaterial: Rogers RO4350B+FR4 Mixing Press

Layer: 8L

D K:3.48

Finished Thickness :2.5MM

Copper Thickness :1OZ

Dielectric Thickness :0.338mm

Thermal Conductivity :0.69w'm.k

Flammability:94V-0

Surface Treatment: lmmersion Gold

Application: Communication Instrument
