Taconic PCB

Product Model: Taconic PCB

Material: TC350 high-frequency substrate

Quality Standard: Maxipcb6012 Class 2

Dielectric Constant: 3.5

Layers: 2-layer PCB

Board Thickness: 1.2mm

Copper Thickness: Finished copper 1oz

Surface Treatment: Immersion Gold

Application: High power amplifier

Description
Data Sheet

Taconic is a global leading manufacturer of Teflon PCB copper-clad sheets, with large-scale global production capacity. It holds patents for the uniform coating of Teflon on glass woven fabrics, making it one of the technological leaders in the Teflon microwave clad sheet industry. The dielectric constant of Taconic PCB microwave clad sheets ranges from 2.17 to 10.0, enabling it to occupy a significant share in the global antenna PCB market.

Taconic PCB high-performance insulating materials provide Teflon woven glass fabric sheets for the microwave, radio frequency (RF), and high-speed digital signal processing markets. These materials are widely applied in low-noise amplifiers (LNAs), low-noise blocks (LNBs), PCS/PCN antenna systems, Global Positioning System (GPS), Universal Mobile Telecommunications System (UMTS) antenna systems, power amplifiers, passive components, collision avoidance radar systems, airborne guidance and remote control technologies, and phased array radar systems.

Common Models of Taconic PCB

The commonly used models of Taconic PCB provided by manufacturers include TLY-5A, TLY-5, TLY-3, HT1.5, TLX-O, TLX-9, TLX-8, TLX-7, TLX-6, TLC-27, TLE-95, TLC-30, TPG-30, TLG-30, RF-30, TSM-30, TLC-32, TPG32, TLG-32, TLG-34, TPG35, TLG-35, RF-35, RF-35A, RF-35P, RF-41, RF-43, RF-45, RF-60A, and CER-10.

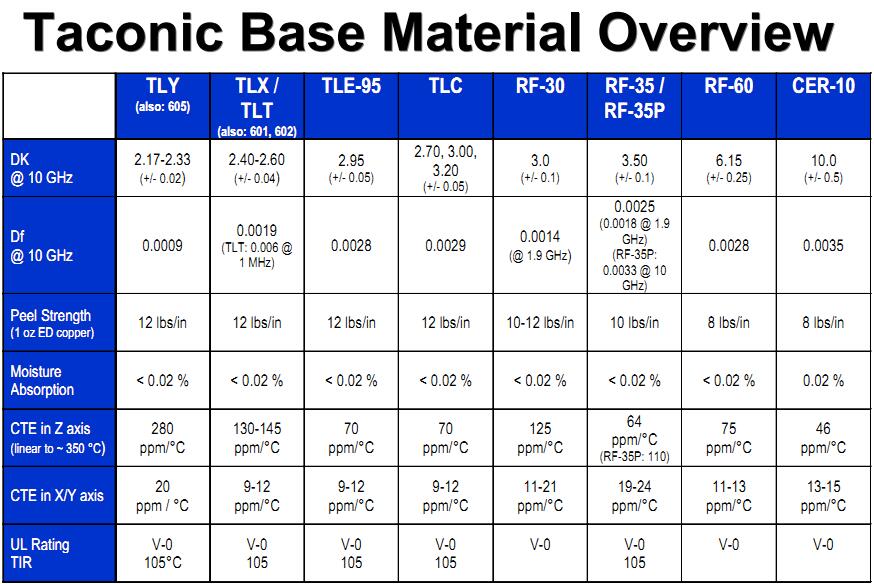

Overview of Taconic PCB Base Materials & Key Features

Taconic PCB materials boast outstanding performance, with the following core features:

Long antenna size, up to 102 inches (2591mm);
Low loss, with a dielectric loss of 0.0009 at 10GHz;
Stable dielectric constant, with a tolerance of ±0.02;
Excellent flatness of the copper surface, up to 0.0015mm;
Strong adhesion, over 10 lb/inch;
Adopting smooth copper sheets (rolled copper sheets);
Reverse copper cladding to improve and optimize Passive Intermodulation (PIM) performance;
Extremely low water absorption rate of the PCB;
Obtained NASA certification, with most products applicable to the aerospace level;
Cost-effective and fast delivery.

Taconic PCB Fabrication Capabilities of Maxipcb

As a professional Taconic PCB manufacturer, Maxipcb possesses mature fabrication capabilities, specifically including:

Number of layers: 1-48 layers;
Minimum line width/spacing: 3mil (0.075mm);
Minimum aperture: 4mil (0.1mm);
Board thickness: 0.1mm ~ 6.0mm;
Maximum board size: 2031.5 inches (500mm800mm);
Material coverage: Full range of Taconic PCB prototypes.

Delivery Time for Taconic PCB Samples

Double-sided Taconic PCB samples: 3 days, with expedited delivery available in 24 hours;
4-layer Taconic PCB samples: 6 days, with expedited delivery available in 48 hours;
6-layer Taconic PCB samples: 7 days, with expedited delivery available in 72 hours;
8-10 layer Taconic PCB samples: 9 days, with expedited delivery available in 96 hours.

Main Applications of Taconic PCB

Taconic PCB is widely used in polytetrafluoroethylene high-frequency PCBs, 3G smart antenna PCBs, power amplifier PCBs, low-noise amplifier PCBs, divider PCBs, duplexer PCBs, filter PCBs, coupler PCBs, RF communication products, 3G antennas, bridges, modules, couplers, sensors, electronic dogs, high-frequency heads, power dividers, and RF boards.

Maxipcb is a professional Taconic PCB manufacturer with rich experience in fabrication. If you need Taconic PCB fabrication services, please contact Maxipcb.
