Name: Super Mini Size small board Rogers RO4350B PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Super Mini Size small board Rogers RO4350B PCB

Product Model: Small Size PCB

Material: Rogers RO4350B

Layer Count: 2 Layers

Dielectric Constant (DK): 3.48

Board Dimension: 0.8mm × 1.4mm

Copper Thickness: 1OZ

Dielectric Thickness: 0.254mm

Finished Thickness: 0.3mm

Surface Treatment: Immersion Gold

Special Process: Laser routing outline

Application: 5G communication component PCB, SMD dielectric antenna PCB, interconnection device antenna PCB

Description
Data Sheet

1. Industry Development Trend & PCB Technical Requirements

With the continuous development of electronic information technology, most electronic products are moving towards miniaturization and compactness, which puts forward higher requirements for the performance and size of printed circuit boards (PCBs). In the era of high-density interconnection technology, the line width, line spacing, and overall board size of PCBs are inevitably developing towards miniaturization and ultra-compactness. To adapt to this development trend, PCB designers and manufacturers are constantly updating design schemes and optimizing production processes, striving to meet the increasingly strict application requirements.

2. Challenges of Traditional Processes in Miniaturized PCB Production

Along with the trend of miniaturization and compactness, there are more and more PCBs with smaller external dimensions. For small-size PCBs, traditional processing technologies can no longer meet the production needs, especially in the communication microelectronics processing and assembly industry. The growing demand for ultra-small and ultra-thin high-frequency PCBs has become a key challenge that needs to be addressed urgently.

Traditional PCB production processes fail to meet the technical requirements of ultra-thin and ultra-small high-frequency PCBs, such as an overall size of less than 3mm, a shape tolerance of ±0.1mm, a board thickness of less than 0.3mm, and a smooth, burr-free surface around the board.

3. Key Specifications & Application Scenarios of Small-Size & Ultra-Thin PCBs

For small-size PCBs, the minimum overall size can reach 1×1mm, with a minimum shape tolerance of ±0.05mm. Ultra-thin PCBs can have a thickness of less than 0.1mm, and the board contour is required to be smooth without burrs. These high-precision, miniaturized PCBs are widely used in 5G communication component PCBs, SMD dielectric antenna PCBs, 5GHz band on-board SMD antennas, and interconnection device antenna PCBs, providing reliable support for the miniaturization of high-frequency electronic products.

4. RF/Microwave PCB Production Capability Overview

The following table presents the core production capabilities of RF/microwave PCBs:

Capability Category	Specifications	Capability Category	Specifications
PCB Layers	1-32 Layers	Dielectric Constant	1-16
Mini PCB Board Size	--	Max Finished Board Size	0.5×1.0mm
PCB Material	Rogers, Arlon, Doosan, Isola, ITEQ, Nanya, NELCO, Panasonic, Polyflon, ROHM HRRS, Sytech, Taconic, TAIYO INK, Wanglin	Finished Copper Thickness	0.5oz-2oz
PCB Material		Material Copper Thickness	0.5oz-1oz
High-Frequency Hybrid Lamination	Rogers/Taconic/Arlon/Wanglin + FR-4	Min Core Thickness	4mil
Min PTFE Material Thickness Tolerance	0.35mm	Min Pattern Width Tolerance	±20μm
Min Pattern Width/Spacing	0.076mm	--	--

Super Mini Size small board Rogers RO4350B PCB

5. Real Project Display

Customer Location: USA

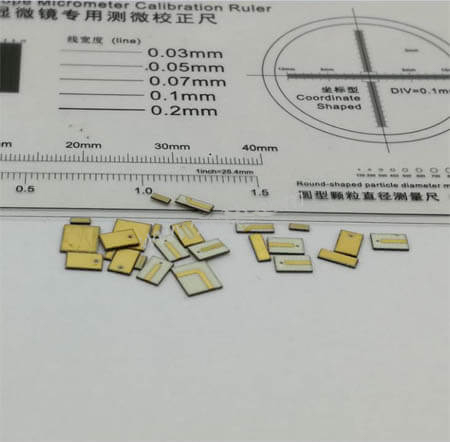

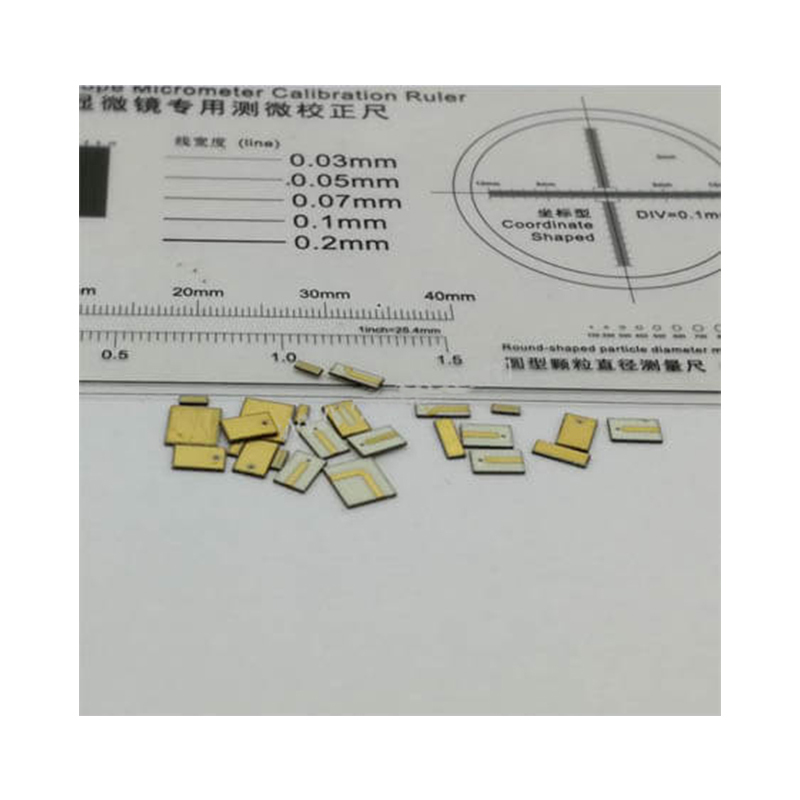

Product Photo: See below image

Material Used: Rogers RO4350B

6. Super Mini-Size Rogers RO4350B PCB

The project adopts Rogers RO4350B high-frequency material, which fully leverages the material's low RF loss, stable dielectric performance, and excellent processability. It successfully achieves the super mini-size design requirements, meeting the high-precision application needs of the customer's high-frequency electronic products.

Model : Small board PCB

Material : Rogers Ro4350B

Layer : 2Layers

DK : 3.48

Size : 0.8mm * 1.4mm

Copper Thickness : 1OZ

Dielectric Thickness : 0.254

Finished Thickness : 0.3mm

Surface Treatment : Immersion Gold

Specail Process : Outline by Laser Routing

Application : 5g communication components pcb, SMD dielectric antenna pcb, interconnection device antenna pcb
