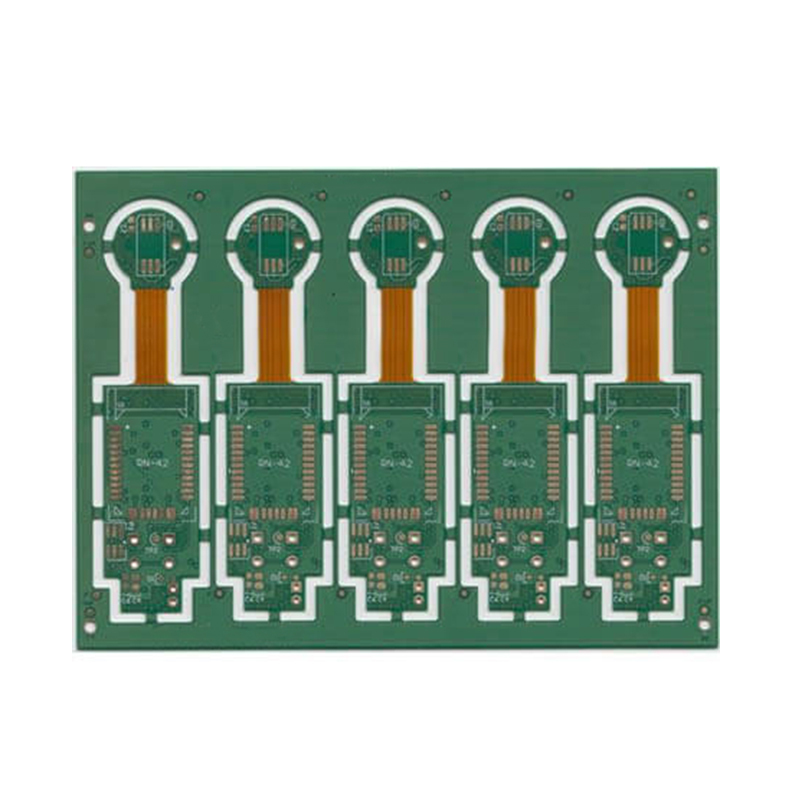

Semi Rigid-Flex PCB(R-FPCB) with Blind Via

Product Model: Semi Rigid-Flex PCB (R-FPCB)
Material: FR-4 + PI
Layer Structure: 6 Rigid Layers / 2 Flexible Layers
Solder Mask: Green / White
Finished Thickness: Rigid 0.8mm, Flex 0.15mm
Copper Thickness: 1oz
Surface Treatment: Immersion Gold
Min. Trace / Space: 2.5mil/2.5mil
Application: Communication PCB

  • Semi Rigid-Flex PCB(R-FPCB) with Blind Via
  • Description

  • Data Sheet

1. Enterprise Overview

Maxipcb®.com boasts over 17 years of experience in RF PCB manufacturing, committed to building an Industry 4.0 smart PCB factory under the "Internet +" strategy. The company has independently developed an industry-leading automatic PCB quotation and ordering system, implemented Total Quality Management (TQM), and holds UL, ISO9001 and SGS RoHS certifications, providing global customers with professional technical support and one-stop production services.

2. Core Product Portfolio

Maxipcb’s high-end PCB product lineup covers radio frequency (RF)/microwave/hybrid high-frequency boards, FR4 double-sided/multilayer boards, 1~3+N+3 HDI boards, anylayer HDI, rigid-flex composite boards (R-FPCB), blind & buried hole boards, blind slot boards, backdrilled boards, IC carrier boards and heavy copper PCBs. These products are widely applied in Industry 4.0, communication equipment, industrial control, digital products, power modules, computers, automotive electronics, medical devices, aerospace, precision instruments, military equipment and IoT fields.

3. Core Technical Capabilities

3.1 Surface Finishing Solutions

To meet the reliability and soldering requirements of high-end PCBs (including R-FPCB and RF/microwave PCB), Maxipcb offers a full range of surface finishing options: OSP, ENIG (Electroless Nickel Immersion Gold), lead-free HASL (Hot Air Solder Leveling), full-plate gold plating, flash gold, immersion tin, immersion silver and electrolytic gold.

3.2 Key Manufacturing Capabilities

The company possesses comprehensive high-precision processing capabilities, including golden finger fabrication, heavy copper production, blind/buried via processing, precision impedance control, resin plug hole, carbon ink printing, backdrilling, countersink hole, depth-controlled drilling, half-plated hole, press-fit hole, peelable blue mask, peelable solder stop, thick copper manufacturing and oversized PCB production, fully supporting high-end PCB customization needs.

3.3 Layer Configuration & Dielectric Constant (DK)

Layer coverage ranges from 2L to 30L, supporting flexible customized layer design for high-density, high-frequency and miniaturized scenarios. Customizable dielectric constant (DK) includes 2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15 and 10.2, precisely matching high-end PCB electrical performance requirements to ensure stable signal transmission.

4. Enterprise Advantages & Service Commitment

Backed by profound professional material expertise, sufficient core material inventory and strict full-process quality control, Maxipcb has established long-term cooperative relationships with global customers. The company continuously upgrades technological capabilities, focusing on delivering stable, high-performance PCB solutions that meet diverse high-end application demands.

Model : Semi Rigid-Flex PCB(R-FPCB)

Material : FR-4 + PI

Layer : Rigid 6L / Flex 2L

Color : Green/White

Finished Thickness : Rigid0.8mm, Flex 0.15mm

Copper Thickness  : 1OZ

Surface Treatment : Immersion Gold

Min Trace / Space  : 2.5mil/2.5mil

Application : Communication pcb
