Automotive PCB: Market Trends, Technical Requirements & Manufacturing Characteristics

Evolution of Automotive Electronics & PCB Market Overview

The automotive industry has undergone a profound transformation, evolving from a purely mechanical structure to a system integrated with sophisticated electronic components. As early as the 1970s, the average value of electronic components per vehicle was approximately $100. By 2000, this figure had risen to $1,500, and the global automotive electronics market exceeded $150 billion in 2013. Projections indicate that the market scale will surpass $240 billion by 2020.

Furthermore, it is estimated that the market value of automotive electronic systems, which stood at $191 billion, will surge to $314.4 billion by 2020, achieving a compound annual growth rate (CAGR) of 7.3%. High-end vehicles may be equipped with up to 150 electronic control units (ECUs), the majority of which are sensors and processors integrated in the cockpit. According to industry reports, 65% of the value of automotive electronic products is concentrated in power systems, vehicle bodies, and chassis—most of which are closely related to digital power supplies. Notably, the electronic component value ratio of electric vehicles (EVs) exceeds 70%.

Printed circuit boards (PCBs) are essential core components for all vehicles equipped with electronic systems. In 2014, the global automotive PCB market reached $4.6 billion, and it is anticipated to exceed $7 billion by 2020, driven by the rapid advancement of automotive electrification and intelligence.

Core Application Objectives of Automotive Electronic Systems

The integration of electronic systems in vehicles aims to enhance overall vehicle performance, primarily reflected in three key dimensions:

Environmental Sustainability & Energy Efficiency: Focused on fuel conservation and emission reduction, the industry is transitioning from traditional gasoline, natural gas, and biofuel-powered vehicles to hybrid electric vehicles (HEVs) and battery electric vehicles (BEVs), with EVs emerging as the dominant development trend.
Safety Enhancement: Targeted at reducing traffic accidents, the evolution ranges from basic airbag systems to advanced technologies such as radar monitoring, stereo cameras, night vision infrared monitoring, automatic collision avoidance, and autonomous driving. Industry forecasts suggest that autonomous vehicles will achieve commercialization within three years.
Comfort & Convenience: Evolving from vehicle-specific audio, video, and air conditioning systems to integrated solutions including in-vehicle computers, mobile communication, internet connectivity, navigation, and electronic charging—all designed to deliver greater convenience and user-friendliness.

Basic Technical Requirements for Automotive PCBs

Quality Assurance Standards

Automotive PCB manufacturers must comply with ISO 9001 quality management system requirements. Leading manufacturers fully adhere to ISO 9001:2008 and are committed to meeting the most stringent standards in the manufacturing and assembly processes.

Automotive products have unique quality requirements. In 1994, Ford, General Motors, and Chrysler jointly established the QS9000 quality control system for the automotive industry. In the early 21st century, aligned with the ISO 9001 standard, the ISO/IATF 16949 standard was released as the new global quality management system for the automotive industry.

ISO/IATF 16949 is a set of technical regulations tailored for the global automotive industry. Based on ISO 9001 and supplemented by automotive-specific requirements, it places significant emphasis on defect prevention, reduction of quality fluctuations, and waste minimization throughout the automotive supply chain. The effective implementation of ISO/IATF 16949 requires mastery of five core tools:

PPAP (Production Part Approval Process): Mandates customer approval for products prior to mass production or after design/process modifications.
APQP (Advanced Product Quality Planning): Requires quality planning and pre-production quality analysis, followed by FMEA (Failure Mode and Effects Analysis) to identify and prevent potential product failures.
MSA (Measurement System Analysis): Analyzes variations in measurement results to ensure measurement reliability.
SPC (Statistical Process Control): Monitors production processes using statistical techniques to maintain stable product quality.

Obtaining ISO/IATF 16949 certification is a prerequisite for PCB manufacturers to enter the automotive electronics market.

Performance Requirements

High Reliability

Automotive reliability is primarily determined by two factors: service life and environmental resistance. The former ensures stable operation throughout the vehicle’s service life, while the latter guarantees consistent PCB functionality under varying environmental conditions.

In the 1990s, the average service life of automobiles was 8–10 years; today, it has extended to 10–12 years—requiring automotive electronic systems and PCBs to maintain performance within this timeframe.

During operation, vehicles are exposed to extreme environmental conditions: from frigid winters to scorching summers, sunlight to rain, and temperature increases caused by internal operation. Consequently, automotive electronic systems and PCBs must withstand multiple environmental challenges, including temperature fluctuations, humidity, rain, acid mist, vibration, electromagnetic interference (EMI), and current surges. As PCBs are primarily installed inside the vehicle, temperature and humidity are the most significant environmental stressors.

Lightweight & Miniaturization

Vehicle lightweighting and miniaturization are critical for energy conservation, achieved by reducing the weight of individual components—for example, replacing metal parts with engineering plastics. Additionally, automotive electronic equipment and PCBs must be miniaturized. For instance, the volume of ECUs used in vehicles was approximately 1,200 cm³ around 2000; today, it has been reduced to less than 300 cm³, a fourfold decrease. Similarly, ignition systems have evolved from mechanical wired designs to electronic systems with internal PCBs and flexible wiring, achieving a more than tenfold reduction in volume and weight.

PCB lightweighting and miniaturization are enabled by increased circuit density, reduced board area, thinner profiles, and multilayer designs.

Classification & Reliability Requirements of Automotive PCBs

Automotive PCB Classification by Application

Modern automobiles integrate mechanical and electronic systems, combining traditional technologies with advanced innovations—from manual interior components to sophisticated GPS systems. Different positions in the vehicle house electronic devices with distinct functions, leading to the development of various PCB types tailored to specific applications.

Based on substrate materials, automotive PCBs are categorized into two main types:

Inorganic Ceramic-Based PCBs: Offer high-temperature resistance and excellent dimensional stability, making them suitable for high-temperature motor systems. However, their poor processability and high cost limit widespread application.
Organic Resin-Based PCBs: With advancements in resin substrate heat resistance, these PCBs are widely used in automobiles, with different resin materials selected based on the application position and performance requirements.

Typical PCB applications in automobiles include:

Common instruments (e.g., speedometers, odometers, air conditioning): Flexible PCBs (FPCs) and rigid PCBs.
In-vehicle audio and video entertainment systems: Double-layer/multilayer PCBs and FPCs.
Communication, wireless positioning, and safety control systems: Multilayer PCBs, HDI (High-Density Interconnect) PCBs, and FPCs.
Automotive motor control and power transmission systems: Specialized PCBs (e.g., metal-core PCBs, rigid-flex PCBs).
Micro-vehicles and high-density applications: Component-embedded PCBs (e.g., microprocessor chips embedded directly in power controller PCBs, navigation systems, and stereo imaging devices for advanced driver assistance systems).

Reliability Test Requirements for PCBs by Installation Position

As vehicles are classified as high-reliability products critical to public safety, automotive PCBs must pass rigorous reliability tests in addition to meeting general requirements for dimensions, mechanical properties, and electrical performance. Key tests include:

Thermal Cycle Test (TCT): PCB thermal cycle temperatures are classified into five grades based on vehicle installation positions, as summarized in Table 1.
Thermal Shock Test: With the increasing use of PCBs in high-temperature environments—especially thick-copper PCBs that handle external and self-generated heat—automotive PCBs require enhanced heat resistance.
Temperature-Humidity-Bias (THB) Test: Given the exposure of automotive PCBs to diverse environments (e.g., rainy or humid conditions), THB testing is essential. Test conditions include temperature (85°C), humidity (85% RH), and bias voltage (DC 24V, 50V, 250V, or 500V).

THB testing must account for Conductive Anodic Filament (CAF) migration, which typically occurs between adjacent vias, vias and traces, adjacent traces, or adjacent layers—leading to reduced insulation or short circuits. Insulation resistance depends on the spacing between vias, traces, and layers.

Table 1: PCB Thermal Cycle Temperature by Vehicle Installation Position

Grade	Installation Position	Thermal Cycle Range (°C)	Cycle Times	Typical Application
1	Cockpit (Interior, away from engine)	-40 ~ +85	1000	Instrument panel, in-vehicle entertainment system
2	Door, trunk (Semi-exterior)	-40 ~ +105	1000	Door control module, trunk electronic components
3	Engine compartment (Near engine, non-direct heat)	-40 ~ +125	1000	ECU, sensor connectors
4	Engine surface (Direct heat exposure)	-40 ~ +150	1000	Engine control sensor, ignition module
5	Exterior (Body surface, extreme environment)	-40 ~ +120	2000	External radar, lighting control module

Manufacturing Characteristics of Automotive PCBs

High-Frequency Substrates

Automotive collision avoidance and predictive braking systems function similarly to military radar equipment. As these systems transmit microwave high-frequency signals, PCBs must use low-dielectric-loss substrates such as PTFE (Polytetrafluoroethylene) alongside conventional substrates. Unlike FR4 materials, PTFE and similar high-frequency substrates require specialized drilling speeds and feed rates during the drilling process to ensure performance.

Thick-Copper PCBs

High-density, high-power, and hybrid power automotive electronic products generate significant heat. Electric vehicles, in particular, require advanced power transmission systems and enhanced electronic functions, placing higher demands on heat dissipation and high-current carrying capacity.

Manufacturing double-layer thick-copper PCBs is relatively straightforward, while multilayer thick-copper PCBs present greater challenges—primarily in thick-copper pattern etching and thickness gap filling.

Internal traces of multilayer thick-copper PCBs are all thick-copper, requiring thick photoresist films with high etching resistance. Thick-copper pattern etching requires extended time, with etching equipment and technical conditions optimized to ensure complete trace integrity. For external thick-copper traces, lamination of thick copper foil with patterned thick-copper layers is followed by gap etching, using thick anti-plating photoresist films.

The significant surface height difference between internal conductors and insulating substrates in multilayer thick-copper PCBs can lead to resin voids during standard lamination. To address this, high-resin-content thin prepregs are preferred. For PCBs with uneven internal copper thickness, different prepregs are used in areas with large or small copper thickness differences.

Component Embedding Technology

To increase assembly density and reduce component size, component-embedded PCBs—widely used in smartphones—are increasingly adopted in automotive electronic equipment. There are multiple manufacturing methods for component-embedded PCBs, with four main types used in automotive applications (as shown in Figure 1):

Excavation Type (Type A): Process flow includes cavity excavation, followed by SMD assembly via reflow soldering or conductive adhesive.
Lamination Type (Type B): Achieved by reflow soldering thin SMD components on internal circuits, suitable for thin-component manufacturing.
Ceramic Type (Type C): Involves thick-film assembly printed on ceramic substrates.
Module Type (Type D): Process flow includes SMD assembly via reflow soldering and resin encapsulation. This type offers high reliability, making it ideal for automotive requirements of heat resistance, moisture resistance, and vibration resistance.

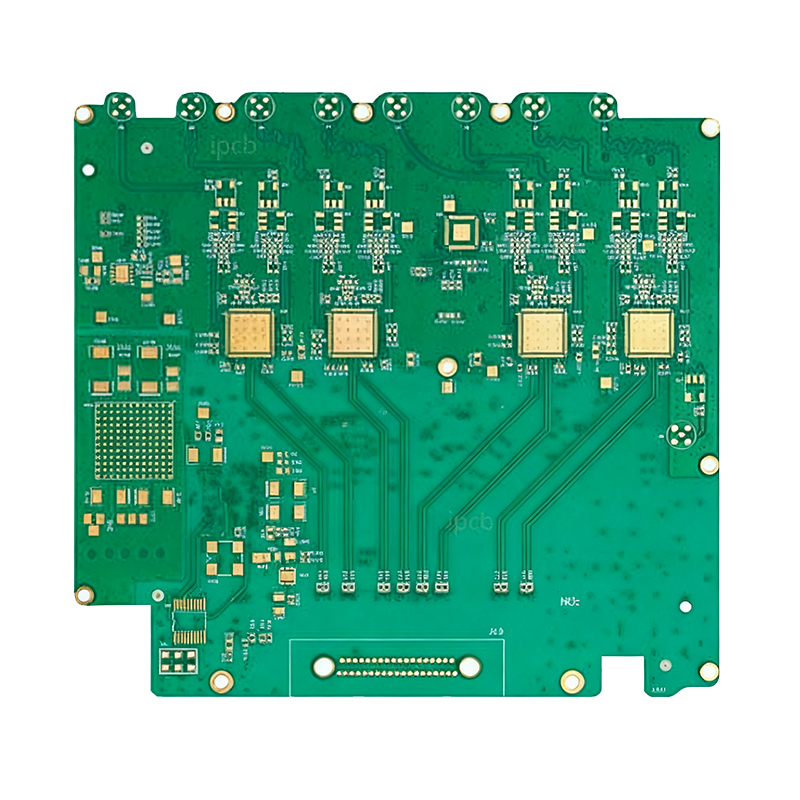

Model: Ro4350B Hybrid High Frequency PCBMaterial: Rogers RO4350B+FR4 Mixed dielectric

Layer: 10L

D K: 3.48

Finished Thickness:1.6MM

Copper Thickness:1OZ

Dielectric Thickness:0.127mm

Thermal Conductivity: 0.69w'm.k

Flammability: 94y-0

Surface Treatment: lmmersion Gold

Application: Radio Communication Instrument/Anti collision of cars

Rogers RO4350B PCB Board for Anti Collision of Cars
