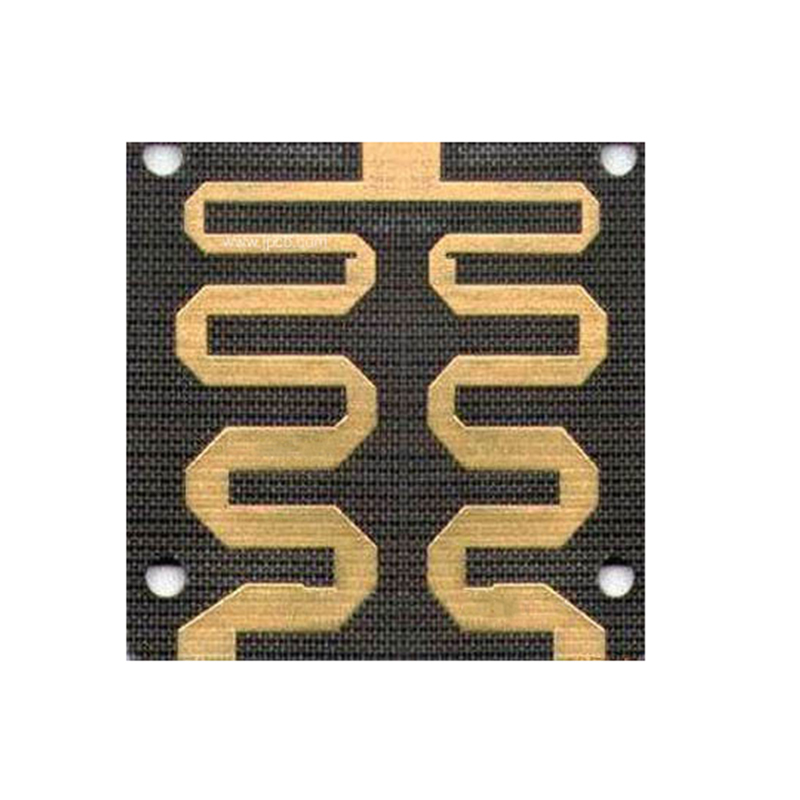

PTFE F4BM-300 RF High Frequency

Product Model: F4BM PTFE PCB

Material: F4BM-300

Layer Count: 2 Layers

Dielectric Constant (DK): 3.0

Dielectric Thickness: 0.5mm

Finished Thickness: 0.6mm

Thermal Conductivity: 0.3~0.5 W/m·K

Flammability Rating: UL 94-V0

Copper Thickness: 1oz

Surface Treatment: Immersion Gold

Application: Microwave Antenna PCB

Description
Data Sheet

1. Real Project Display of PTFE F4BM-300 Microwave PCB Board

In practical engineering projects, PTFE F4BM-300 microwave PCB boards exhibit excellent comprehensive electrical performance. Specifically, they feature a wider adjustable range of dielectric constant (DK), a lower tangential value of the dielectric loss (DF) angle, an increased resistance value, and overall more stable performance. These advantages make F4BM-300 highly suitable for high-frequency microwave applications requiring reliable signal transmission and stable operation, and its performance has been fully verified in real project applications.

2. RF/Microwave PCB Application Overview

Radio frequency (RF) printed circuit boards (PCBs) have become an increasingly indispensable technology in the PCB industry, with their application scope expanding rapidly alongside the development of new electronic technologies. They are classified based on operating frequency:

RF PCBs: Operate at frequencies above 100 MHz, suitable for a variety of high-frequency electronic devices and communication systems.
Microwave PCBs: Operate at frequencies above 2 GHz, mainly used in high-frequency communication, microwave equipment, and other scenarios that require high signal integrity.

RF PCBs are widely applied in various fields, including remote controls (wireless controls), security systems, smartphones, sensors, and other electronic products. The continuous advancement of new technologies such as 5G, IoT, and microwave communication has further increased the demand for RF applications, which in turn imposes higher requirements on PCB manufacturing quality standards and material selection.

Understanding the properties of various RF materials is crucial for PCB manufacturing. Choosing the right RF material is perhaps the most critical decision in the production process of RF PCBs, as it directly determines the performance, reliability, and cost-effectiveness of the final product.

3. PTFE F4BM-300 Technical Specifications

For more detailed technical parameters, performance data, and application guidelines of PTFE F4BM-300, please click: Radio frequency PCB material F4BM-1/2 Technical Specifications. It is worth noting that PTFE F4BM-300 is a high-performance microwave PCB material with a dielectric constant (DK) of 3.00±0.05 and a dielectric loss (DF) of 0.0013 at 10GHz, perfectly matching the performance advantages reflected in real projects.
