Name: Network pcba production for data transmission
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Definition of PCBA Production

PCBA production refers to the complete processing process of bare PCB (Printed Circuit Board) through a series of standardized manufacturing processes, ultimately forming finished PCBA electronic products that meet user application requirements. The entire production process involves multiple interrelated links, and any quality defect in any link will have a significant impact on the final product performance and reliability.

2. Core PCBA Processing Processes

According to the PCB structure (single-sided/double-sided) and component type (SMD/THD), Maxipcb adopts targeted processing processes to ensure production quality and efficiency. The main processes are as follows:

2.1 Single-Sided Surface Mounting Process

Process flow: Solder paste printing → SMD (Surface Mount Device) placement → Reflow soldering

2.2 Double-Sided Surface Mounting Process

Process flow: Solder paste printing on Side A → SMD placement on Side A → Reflow soldering → Board flipping → Solder paste printing on Side B → SMD placement on Side B → Reflow soldering

2.3 Single-Sided Mixed Mounting (SMD & THD on the Same Side)

Process flow: Solder paste printing → SMD placement → Reflow soldering → Manual THD (Through-Hole Device) insertion → Wave soldering

2.4 Single-Sided Mixed Packaging (SMD & THD on Both Sides of PCB)

Process flow: Red glue printing on Side B → SMD placement on Side B → Red glue curing → Board flipping → THD insertion on Side A → Wave soldering on Side B

2.5 Double-Sided Mixed Mounting (THD on Side A, SMD on Both Sides A & B)

Process flow: Solder paste printing on Side A → SMD placement on Side A → Reflow soldering → Board flipping → Red glue printing on Side B → SMD placement on Side B → Red glue curing → Board flipping → THD insertion on Side A → Wave soldering on Side B

2.6 Double-Sided Mixed Packaging (SMD & THD on Both Sides A & B)

Network PCBA production

3. PCBA Production Outsourcing Trend in the Electronic Industry

With the increasingly fierce competition in the global electronic industry, the sales market share is mainly occupied by well-known electronic brands, and other electronic manufacturers can only compete for the remaining market resources. Therefore, how to quickly produce products and launch them into the market has become a core issue for many enterprises to solve.

To focus on core businesses such as product design, marketing and after-sales service, many enterprises choose to outsource product production and assembly. Maxipcb provides a complete set of supporting services for enterprises with such assembly needs. Regardless of the product batch size or product category, Maxipcb strictly conducts software configuration and final performance testing in accordance with customer technical specifications, ensuring product consistency and reliability.

PCBA electronic product assembly and processing refers to electronic processing manufacturers undertaking processing projects entrusted by electronic clients, and completing the assembly of semi-finished and finished electronic products. The key difference between PCBA processing and finished product assembly lies in whether the products received by the entrusting party can be directly put into use.

This outsourcing model is widely popular in developed countries, as it completely saves electronic R&D companies from huge expenses such as factory rent and equipment purchase, reduces production costs, and improves product profitability. More and more forward-looking manufacturers with market insight are joining this model. However, a prerequisite is that the entrusting party must ensure that the processing party has sufficient production capacity and rich processing experience to guarantee correct production and on-time delivery, so as to seize market opportunities.

4. Maxipcb PCBA Production Capabilities & Core Advantages

Maxipcb Circuits Limited (Maxipcb®.com) specializes in providing a full range of electronic processing services, including PCBA production, PCBA processing and testing, SMT placement, DIP insertion, finished product assembly, aging testing, etc. The company is equipped with professional factories that meet international standards for production, has passed US UL certification and ISO9001 production standards, and the finished product qualification rate is as high as 99.8%.

With more than 10 years of professional processing experience, Maxipcb has won the trust of many listed companies and is worthy of customer recognition. As developed countries attach great importance to electronic processing quality, Maxipcb takes quality as the premise, relies on advanced production equipment and rich processing experience to provide reliable services. Up to now, Maxipcb has more than 4,000 cooperative customers around the world, which is a strong witness to the company's technical strength and service level.

5. Service Commitment & Consultation Guide

Maxipcb adheres to the core value of "quality first, customer-oriented", continuously optimizes the production process, improves production efficiency, and is committed to establishing long-term and stable cooperative relationships with new and old customers. The company provides professional technical support throughout the whole process, from product process consultation, BOM optimization to production process improvement, helping customers achieve product upgrading and enhance market competitiveness.

For more details about Maxipcb’s PCBA production, processing, testing, customization and quotation, welcome new and old customers to consult us at any time. Our professional team will provide you with tailored solutions and timely responses to meet your diverse production needs.

FAQ

What steps are included in your Network PCBA Production for Data Transmission service?
We provide comprehensive pcb assembly services covering design, fabrication, full component sourcing, surface mount and through-hole assembly, and both PCB and PCBA testing. Our process includes RoHS-compliant lead-free assembly and can integrate customer-supplied testing protocols with video documentation.

Can I request modifications to the standard 6-layer PCBA design or surface finish?
Our featured service focuses on a 6-layer PCBA with an immersion gold finish and red solder mask. However, we encourage you to contact us to discuss possible customization options for layer count, finishes, or other specific requirements in your printed circuit board assembly project.

How do you ensure the quality and reliability of your PCBA assemblies?
We implement rigorous in-house PCB and PCBA testing alongside RoHS-compliant lead-free assembly. Our production facilities meet international standards, maintain a 99.8% finished product qualification rate, and adhere to strict quality controls to deliver reliable pcb assembly solutions for demanding data transmission applications.

Do you handle logistics and component sourcing for the complete PCB assembly process?
Yes, we provide full electronic component sourcing and manage the entire PCB assembly process in-house. This approach ensures efficient production and quick turnarounds, making us a trusted pcb assembly house for business clients requiring fast, reliable delivery of ready-to-integrate network PCBA boards.

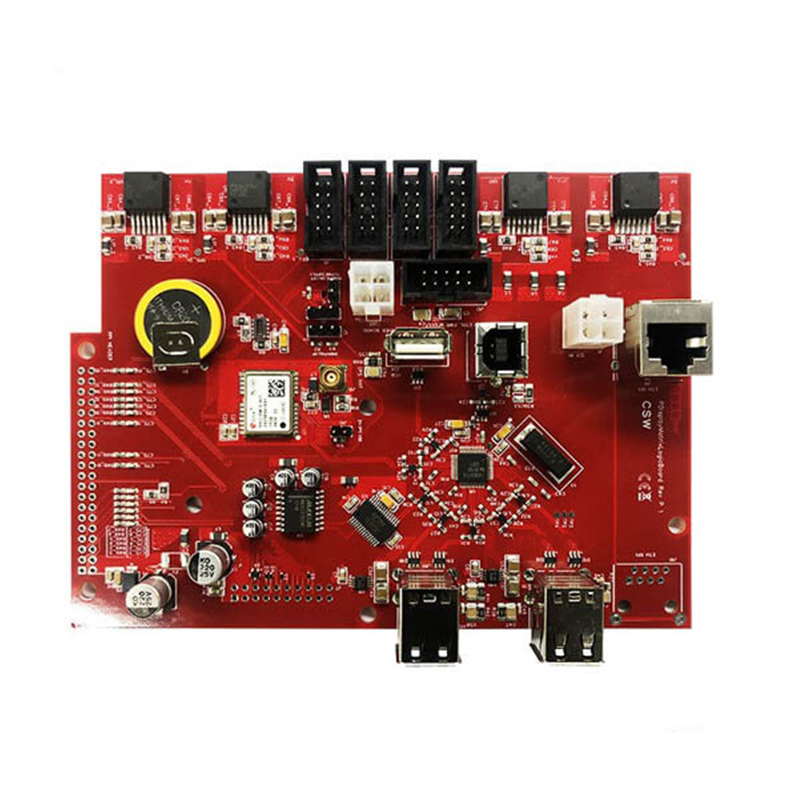

Network pcba production for data transmission

Layers : 6Layers

Surface Process : Immersion Gold

Gold thickness : 2U

PCB Color : Red solder mask

PCB Testing : Yes

PCBA Testing : Yes

Provide PCB production: Yes

Maxipcb company provide full electronic components.

PCBA Testing : Yes ( Customer provide testing step with video )

RoHS compliant lead-free assembly
