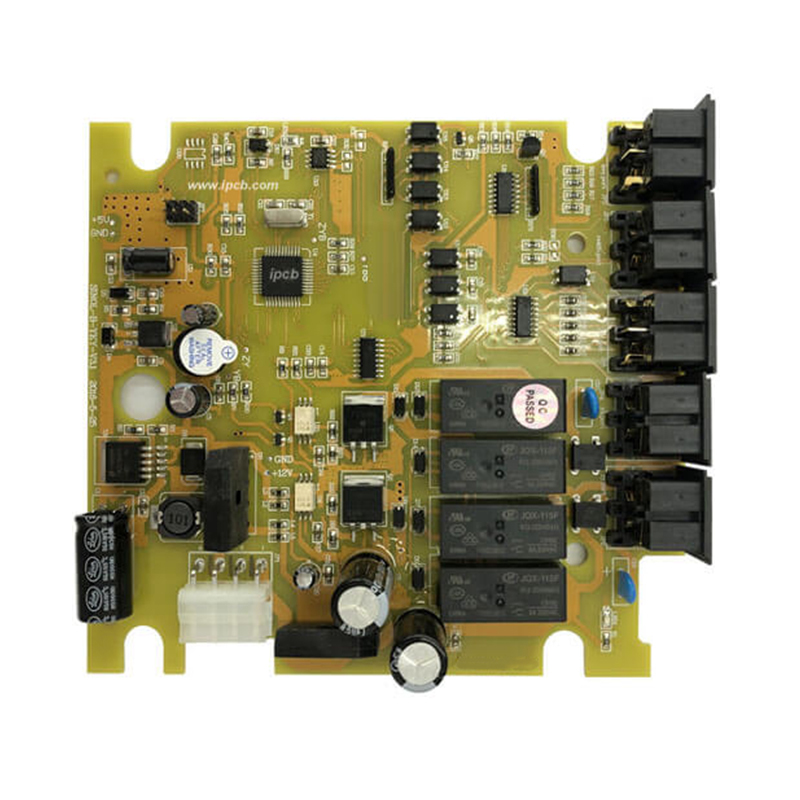

Name: Medical device control PCBA
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Overview of PCBA Services

PCBA is a comprehensive manufacturing process that requires in-depth expertise in PCB components, assembly technologies, PCB design, PCB fabrication, and a thorough understanding of the final product’s functional requirements. As a critical link in the electronic product manufacturing chain, high-quality PCBA processing is essential to ensuring the reliability and performance of the final product, delivering perfect results in the first production run.

2. Core PCBA Assembly Processes

Maxipcb provides flexible PCBA assembly solutions, covering multiple soldering technologies to meet diverse product requirements:

SMT (Surface Mount Technology) for surface mount component assembly;
Traditional THT (Through-Hole Technology) wave soldering for through-hole component assembly;
Hybrid assembly combining both SMT and THT processes;
Advanced THR (Through-Hole Reflow) process for high-reliability through-hole component soldering.

All soldering processes support both lead-free and lead-containing solders, complying with different industry standards and customer requirements. Additionally, Maxipcb offers full-service material procurement, leveraging professional supply chain capabilities to ensure high-quality components and cost efficiency.

3. Comprehensive PCBA Service Scope

Maxipcb provides a full range of PCBA assembly services, tailored to meet the diverse needs of prototype development, small-batch trial production and mass production:

Rapid prototype assembly with 24-hour quick-turn circuit board assembly service;
Turn-key assembly, partial turn-key assembly, and consignment assembly;
Parts list preparation and professional documentation services;
Cost-effective material procurement supported by Maxipcb’s purchasing synergies;
Automated Optical Inspection (AOI) for SMD assemblies to ensure soldering quality;
High-precision SMD assembly for fine-pitch components (e.g., BGA, QFN, QFP, MicroSpeed connectors);
Professional handling of moisture-sensitive components (Moisture Sensitive Level ≥ 3);
RoHS-compliant lead-free assembly;
Lead-containing and lead-free soldering processes;
Assembly production and inspection in accordance with IPC-A610 Class 2 standards.

4. PCBA Quality Control System

Maxipcb strictly adheres to the confidentiality of customers’ design documents and process flows. With over ten years of industry experience, the company has developed a mature PCBA process control plan, which is applicable not only to PCBA processing but also covers electronic manufacturing services, new product introduction, engineering changes, BGA repair and other maintenance services.

To ensure stable PCBA product quality, Maxipcb implements a full-process quality control system, including Incoming Quality Control (IQC), In-Process Quality Control (IPQC), and Outgoing Quality Assurance (OQA). Combined with PDCA cycle management and 6Sigma quality improvement methodologies, the company formulates hierarchical and standardized quality control documents, which are fully implemented in each electronic manufacturing post with clear responsibilities and efficient execution. This comprehensive system effectively guarantees quality standards in key links such as PCBA production, SMT placement, and ICT testing.

In line with IPC industry standards and the ISO9001 document management system, Maxipcb standardizes core electronic manufacturing links, formulates controlled documents, issues them to relevant posts, and establishes an effective supervision and continuous improvement mechanism. Moreover, the company has extensive experience in foreign customer audits, enabling strict compliance with international standards for manufacturing processes and quality control, and forming a complete PCBA placement process management system and standardized workflow.

5. PCBA Processing Supply Chain & Process Control

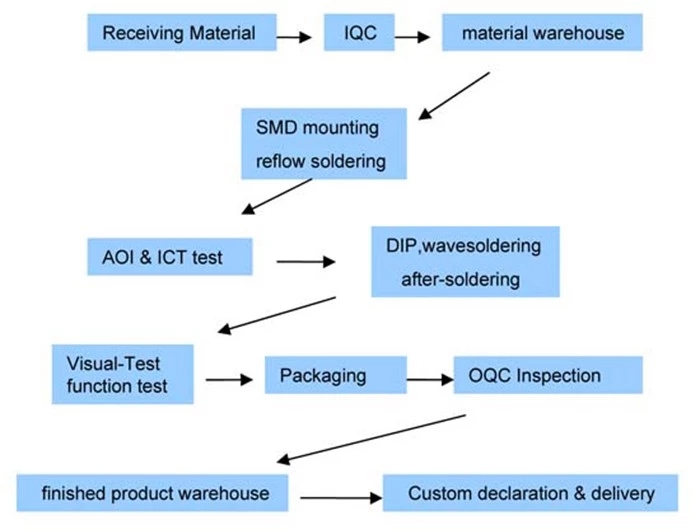

PCBA electronic product processing involves a complete industrial chain, including design document inspection, electronic component procurement, PCB production, SMT placement, through-hole insertion, PCBA testing, packaging and other links, all of which require professional full-process control.

Maxipcb leverages decades of experience in the PCB/PCBA field, adopting A+ grade PCB substrates, fully automated production processes, and 100% factory inspection. Equipped with high-end SMT production equipment and strict adherence to ISO standard operating guidelines, the company maintains obvious advantages in process flow and team professionalism during manufacturing, effectively ensuring the stability and reliability of each link in the supply chain.

6. Core Advantages of Maxipcb PCBA Processing Services

The PCBA industry demands strong overall technical strength, with process technology, quality control level and production management capability being crucial, requiring long-term practice and accumulation. Through years of development, Maxipcb has formed distinct core advantages in PCBA processing:

Production Capacity: Equipped with 8 fully automated SMT production lines and DIP production lines, featuring high production efficiency and high-precision processing capabilities to meet the diverse needs of small-batch, medium-batch and large-batch production.
Team Strength: Boasts a professional manufacturing team with years of industry experience, supported by regular technical training to ensure mastery of the latest process technologies and operating standards.
Cost Advantage: Adapts to high-end manufacturing needs, providing small and medium-sized enterprises with channels to produce high-end PCBA products, and helping customers save 20% of production costs compared with other processors.

7. Industry Position & Service Commitment

To reduce production costs and seek cost-effective, competent PCBA processing service providers, China has become the preferred global processing base. As a leader in the Shenzhen PCBA electronic product processing industry, Maxipcb not only helps customers save 20% of production costs but also provides 100% full-process testing to ensure product qualification.

The company formulates development and competition strategies aligned with its own development and industry status, focusing on technological innovation to stand out in fierce market competition. Adhering to the core value of "quality first, customer-oriented", Maxipcb provides professional technical support and one-stop processing services for global customers.

8. Consultation Guide

If you require PCBA processing services or professional technical support, please contact us at any time. For more details on Maxipcb’s PCBA customization, processing, testing and quotation, our professional team will provide tailored solutions and timely responses to meet your diverse application needs.

Layers : 2Layers

Surface Process : Lead-free HASL

PCB Color : yellow solder mask

PCB Testing : Yes

PCBA Testing : Yes

Provide PCB Manufacturing : Yes

ipcb Provide full electronic components.

PCBA Testing : Yes ( Customer Provide testing step with video )

RoHS compliant lead-free assembly

Looking for a experience PCB assembly manufacturer?

ipcb always live up to the promise, Email Bom to sales@ipcb.com , Get quote now !
