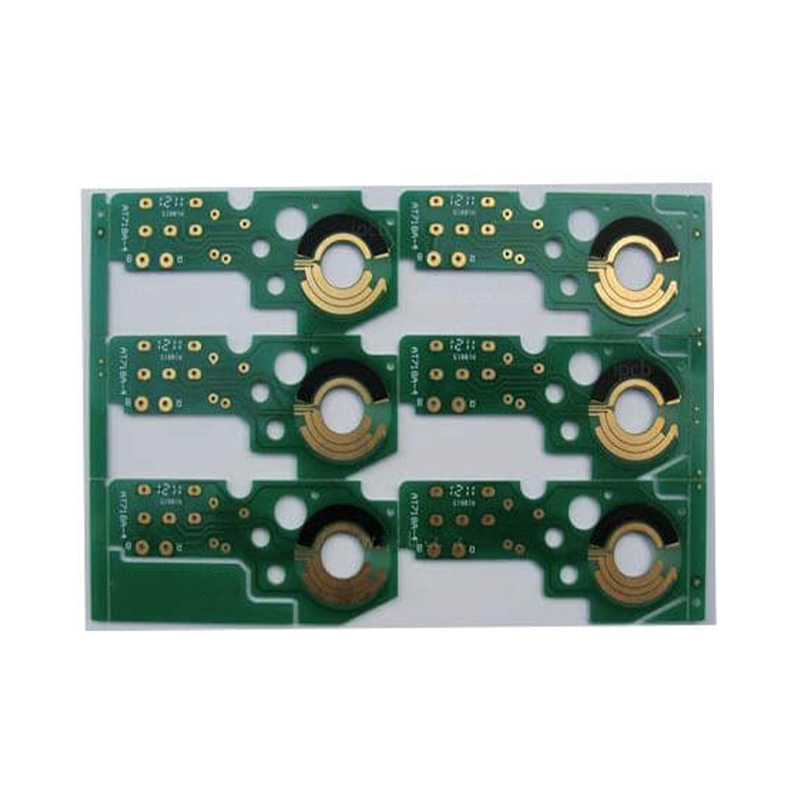

Laser repair of carbon film PCB

Name: Laser repair of carbon film PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Product Model: Laser Repair Carbon Film PCB

Base Material: FR-4 + carbon film composite material

PCB Layers: 2 Layers

Copper Thickness: 1OZ

Finished Thickness: 1.0mm

Surface Treatment: Immersion Gold

Min Trace / Space: 6mil / 6mil

Minimum Aperture: 0.3mm (12mil)

Special Process: Carbon film printing, laser trimming for resistance calibration

Application: RF isolator, RF circulator, RF resistor, terminal load, attenuation chip, coaxial attenuator, filter, combiner, duplexer, power divider, waveguide series products, antenna and other RF components

Get The Latest Quote

Description
Data Sheet

Laser trimming equipment adopts highly focused micro laser beams with matched energy density to irradiate thick-film and thin-film resistor materials. The resistive body of chip resistors is gasified locally to adjust the effective cross-sectional area, so as to achieve precise resistance trimming. During the whole laser processing cycle, the integrated measurement system conducts real-time sampling and dynamic monitoring on chip resistance parameters. Once the measured resistance reaches the rated target value, the laser output will be cut off instantly to complete the automatic resistance calibration process. Laser resistor trimming technology features superior accuracy, high processing efficiency, long-term operational stability and cost-effective production performance.

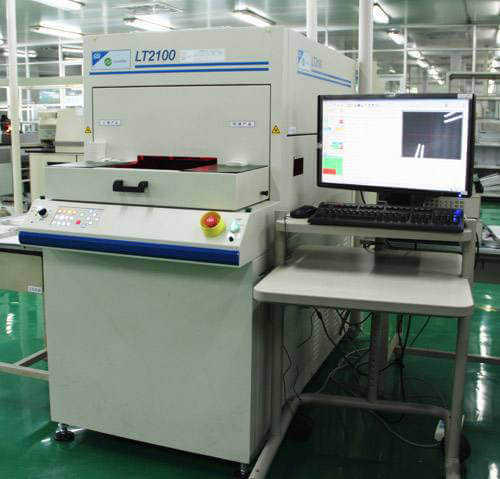

PCB laser resistance repair machine

As core precision processing equipment, the laser resistance trimmer is dedicated to thin-film and thick-film resistor carving and accurate resistance parameter calibration. It possesses remarkable application potential in the mass production and manufacturing of portable electronic devices.

This high-end processing equipment involves sophisticated core technologies, including semiconductor end-pumped laser solution, laser focusing control, real-time image monitoring, coaxial numerical control software, visual automatic recognition and positioning, as well as automatic test tooling (ATE) and other key integrated technologies, leading to high overall technical barriers.

Model : Laser repair of carbon film PCB

Material : FR-4+carbon film PCB

Layer : 2Layers

Copper Thickness : 1OZ

Finished Thickness : 1.0mm

Surface Treatment : Immersion Gold

Trace/Space : 6mil/6mil

Min Hole : 0.3mm(12mil)

Special process : printing carbon film, laser repair resistance value

Application : RF isolator PCB, RF circulator PCB, RF resistor PCB, terminal load PCB, attenuation chip PCB, coaxial attenuator PCB, filter PCB, combiner PCB, duplexer PCB, power divider PCB, waveguide series PCB, antenna PCB,attenuation chip PCB
