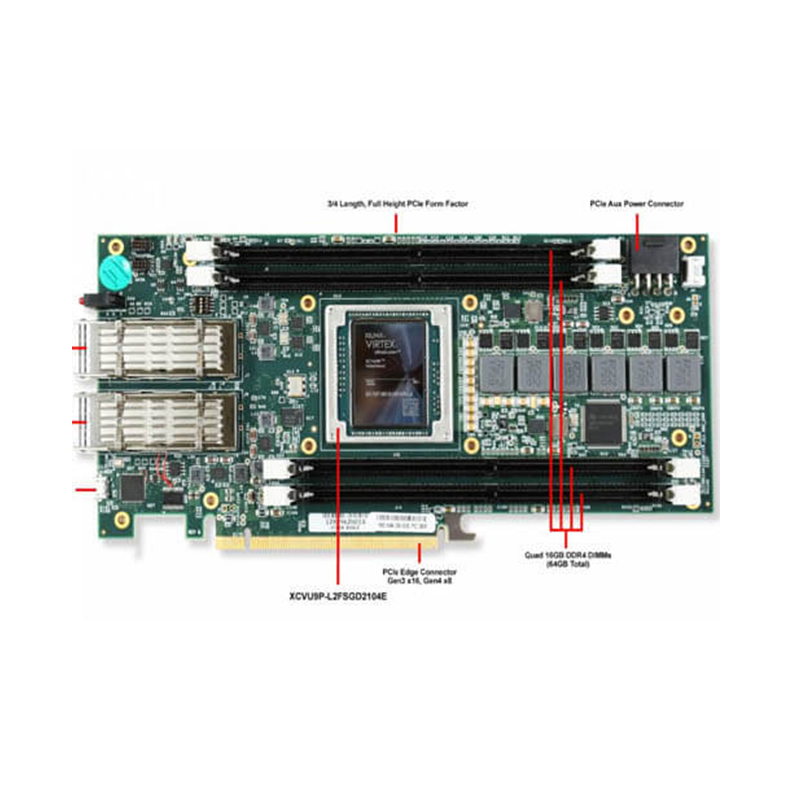

Name: FPGA multi data acquisition card PCBA
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Core Advantages of FPGA Multi-Data Acquisition Card PCBA

FPGA (Field Programmable Gate Array) has inherent technical advantages in high-speed data acquisition scenarios that are incomparable to DSP and MCU, thanks to its high clock frequency, minimal internal delay, high operating speed, efficient parallel computing capability, and flexible architecture configurability. These characteristics enable FPGA multi-data acquisition card PCBA to achieve high-precision, high-speed data collection and processing, adapting to complex industrial and scientific research application scenarios.

The data acquisition system of FPGA multi-data acquisition card PCBA adopts a modular design architecture, consisting of 4 functional modules. Each acquisition module supports interchangeability and flexible expansion, with modules connected via three-way connectors. Sensor signals and 422 serial signals are input to the corresponding modules, and the main control module implements unified framing control and data transmission to dual backup memory. This design scheme features high flexibility, easy operation and control, and strong practical application value in engineering projects.

Advantages of FPGA multi data acquisition card PCBA

2. System PCBA Hardware Design

The FPGA multi-data acquisition and recording system is composed of one main control card and three data acquisition cards, with clear division of functions and close coordination to ensure stable and efficient data acquisition and storage.

2.1 Main Control Card Design

The main control card serves as the core of the entire data acquisition system, undertaking key functions including long-line communication with the ground measurement and control station, data transmission control of each data acquisition card, data forwarding, and memory control. It realizes unified management and scheduling of the entire system, ensuring the synchronization and reliability of data transmission between modules.

2.2 Data Acquisition Card Design

The three data acquisition cards are responsible for analog signal collection, with a total acquisition capability of 72 analog signals (24 signals per acquisition card). The FPGA chip in each data acquisition card controls the multi-channel switch of the control module according to the address jumper module, selecting one of the 24 analog signals to be converted into a digital signal by a 16-bit A/D converter.

After the signal acquisition of each channel is completed, the collected data is transmitted to the main control card through the three-way stackable internal bus in accordance with the receiving sequence and handshake signal. The FPGA main control module of the main control card then performs unified framing processing on the data, which is subsequently transmitted to the memory, completing the entire data acquisition and storage process.

2.3 Multi-Channel Analog Switch Selection & Design

The switching control of the multi-channel analog switch is a key link in the design of the data acquisition card. Each data acquisition card needs to simultaneously collect 24 analog signals with different frequency characteristics, which requires high-precision and high-accuracy control of the sampling channel address switching and selection, putting forward strict requirements for the hardware and software design of the PCBA.

In the hardware design of the PCBA, the ADG706 analog switch chip is adopted. This chip supports 16-channel signal selection; since each acquisition card needs to cover 24 channels, two ADG706 chips are configured per acquisition card, providing a total switching capacity of 16×2=32 channels, which fully meets the PCB design requirements of 24-channel acquisition and ensures stable and reliable channel switching.

3. Maxipcb FPGA Multi-Data Acquisition Card PCBA Customization & Manufacturing Advantages

Maxipcb Circuits Limited (Maxipcb®.com) specializes in the customized design, manufacturing and testing of FPGA multi-data acquisition card PCBA, combining rich PCB/PCBA processing experience with professional FPGA application technology to provide integrated solutions for customers.

The company is equipped with advanced production and testing equipment that meets international standards, has passed US UL certification and ISO9001 quality management system certification, and the finished product qualification rate is as high as 99.8%. For the high-precision requirements of FPGA multi-data acquisition card PCBA (such as signal integrity, channel switching accuracy, and A/D conversion stability), Maxipcb adopts targeted process measures, including high-precision SMT placement, strict impedance control, and full-process quality inspection, ensuring the performance and reliability of the product.

With more than 10 years of professional processing experience and cooperation with over 4,000 customers worldwide, Maxipcb has rich experience in FPGA-based high-speed data acquisition card PCBA design and manufacturing, and can provide customized services according to customer-specific requirements (such as channel quantity, signal type, acquisition accuracy, and module expansion), supporting prototype proofing, small-batch trial production and large-batch mass production.

4. Service Commitment & Consultation Guide

Maxipcb adheres to the core value of "quality first, customer-oriented", and provides professional technical support throughout the entire process of FPGA multi-data acquisition card PCBA design, manufacturing and testing, including BOM optimization, process improvement, and performance testing. We are committed to helping customers achieve product upgrading and enhance market competitiveness.

For more details about Maxipcb’s FPGA multi-data acquisition card PCBA customization, manufacturing, testing and quotation, welcome new and old customers to consult us at any time. Our professional team will provide you with tailored solutions and timely responses to meet your diverse application needs.

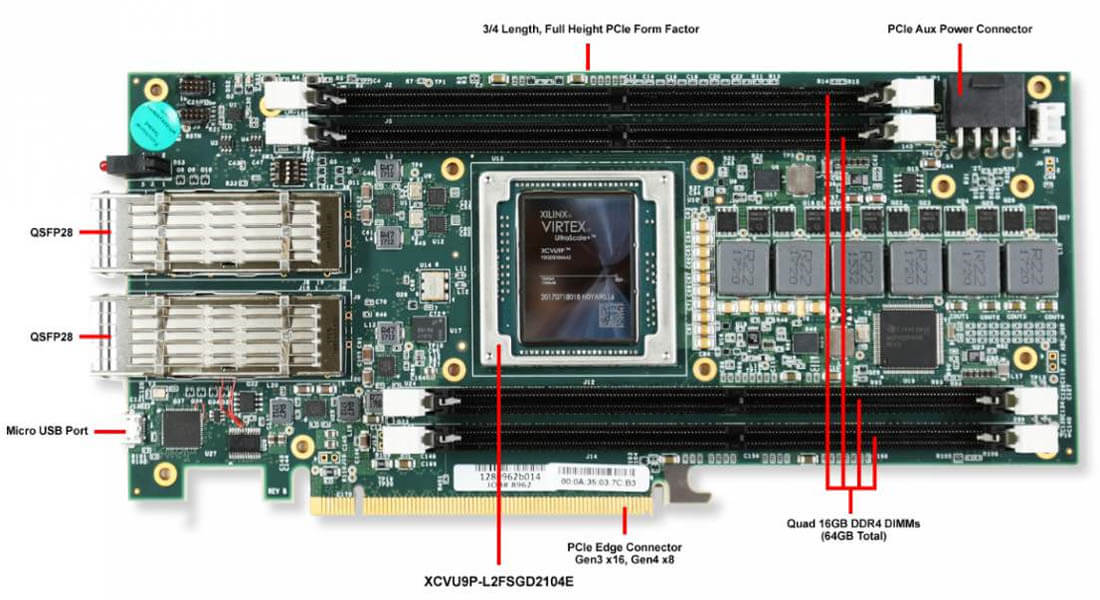

FPGA multi data acquisition card PCBA

Layers : 12Layers

Surface Process : Immersion Gold

Gold thickness : 2U

PCB Color : Green solder mask

PCB Testing : Yes

PCBA Testing : Yes

Provide PCB Manufacturing : Yes

Maxipcb company provide full electronic components.

PCBA Testing : Yes ( Customer provide testing step with video )

RoHS compliant lead-free assembly

FPGA multi data acquisition card PCBA
