Name: Copper based printed circuit board
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Copper based printed circuit board

Product Model: Copper Based Printed Circuit Board

Base Material: Copper substrate

PCB Layers: 1 Layer

Solder Mask Color: Green / White

Finished Thickness: 4.0mm

Copper Thickness: 3OZ

Surface Treatment: OSP

Special Process: Step hole fabrication

Application: High-end communication power supply PCB

Description
Data Sheet

Metal core PCB series mainly covers aluminum-based, copper-based and iron-based circuit boards. Among them, aluminum substrate stands out with prominent cost competitiveness and has become the mainstream material widely adopted in the LED lighting industry.

Metal core printed circuit board (MCPCB) refers to a special substrate solution that takes metal materials as the base core, instead of conventional FR4, CEM1, CEM3 and other organic dielectric materials. At present, professional MCPCB manufacturers mainly adopt aluminum, copper and steel alloy as core base materials. Aluminum alloy delivers balanced heat conduction and heat dissipation performance with cost-effective pricing; copper substrate features superior thermal management performance yet higher material cost; steel materials include carbon steel and stainless steel grades, which provide higher mechanical hardness than aluminum and copper, while showing relatively weak thermal conductivity. In actual project development, customers can select targeted metal core materials according to differentiated application scenarios and performance indicators.

Key Advantages of Metal Core PCB

Effectively lower operating temperature of electronic components
Realize miniaturized PCB layout and compact product design
Boost power density of high-power modules
Prolong the service life of core chips and sensitive components
Optimize overall thermal stability and mechanical structural performance
Support integrated layout of power circuits and control circuits
Enhance environmental adaptability and long-term durability of end products
Fully compatible with SMT surface mounting process for automated production
Simplify structural assembly by reducing auxiliary parts such as independent heat sinks

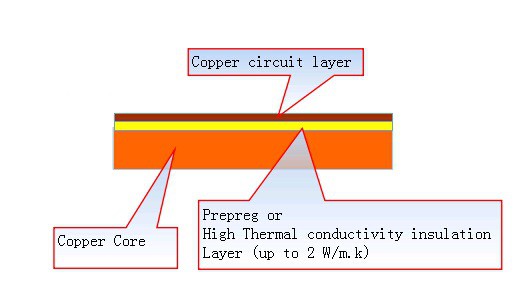

Copper core PCB stack

Copper core PCB adopts a three-layer composite structure consisting of copper metal base, intermediate insulating dielectric layer and surface copper circuit foil, also universally named copper substrate PCB, copper-based PCB and copper-clad metal core board. As a professional MCPCB supplier, Maxipcb provides customized R&D and mass production services of various specifications of copper core PCB to meet diversified customer demands in multiple industries.

Model : Copper based printed circuit board

Material : Copper base

Layer : 1Layers

Color : Green/White

Finished Thickness : 4.0mm

Copper Thickness : 3OZ

Surface Treatment : osp

Special Process : Step hole pcb

Application : High end communication power supply pcb

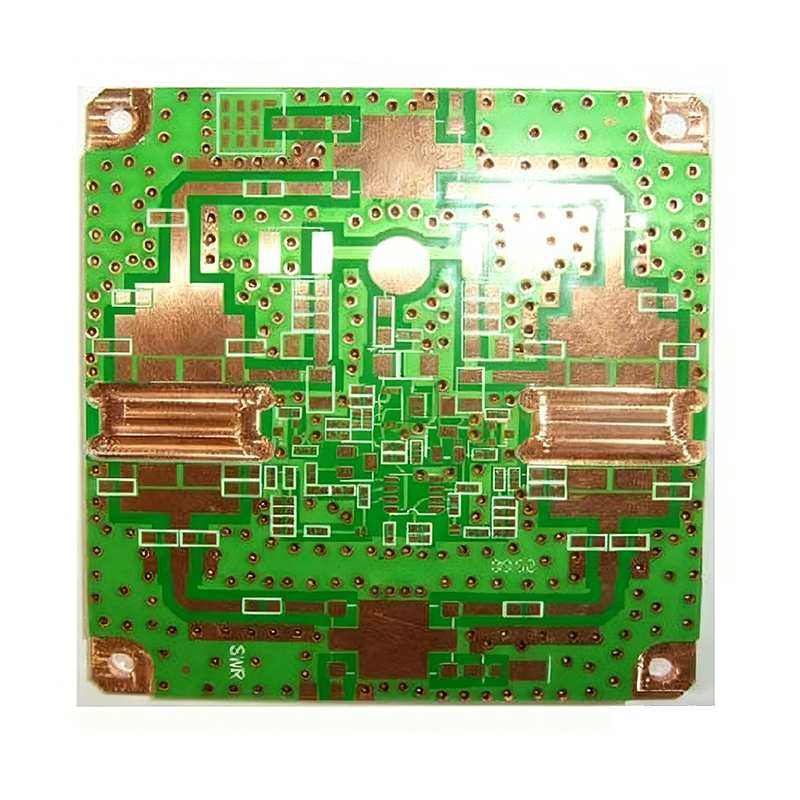

Copper based printed circuit board
