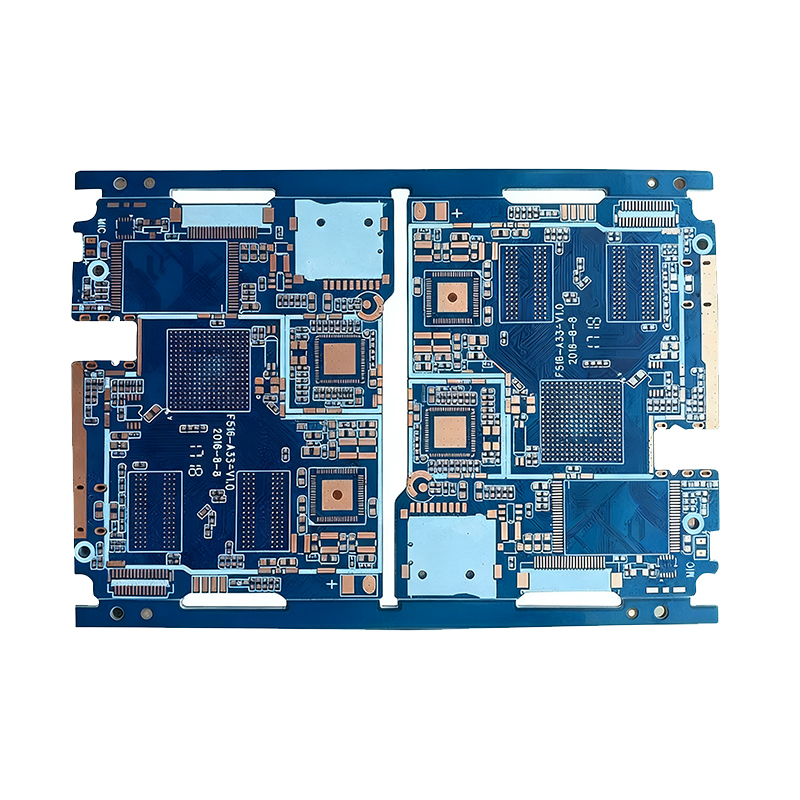

China 12L 2+N+2 HDI PCB Supplier

Product Model: 12L 2+N+2 HDI PCB

Material: ITEQ FR-4 Laminate

Layer: 12L, 2+N+2 HDI Stackup

Solder Mask: Blue / White

Finished Thickness: 1.6mm

Copper Thickness: Inner 1oz, Outer 0.5oz

Surface Finish: ENIG + OSP

Min. Trace / Space: 3mil/3mil

Min. Aperture: 0.2mm mechanical hole, 0.1mm laser microvia

Application: Intelligent Digital Products

Description
Data Sheet

Maxipcb is a high-tech enterprise dedicated to the research and development (R&D), design, manufacturing, and technical services of high-end printed circuit boards (PCBs). With a professional R&D team composed of senior engineers with extensive industry experience and a standardized intelligent production base, we focus on delivering high-reliability, high-precision PCB solutions for global high-end electronic application fields.

As an innovator in the PCB manufacturing industry, we pioneered the independent development of an automatic PCB quotation and order management system—an industry-first solution integrating intelligent quotation, real-time order tracking, and intelligent production scheduling. This system optimizes the procurement process, shortens the quotation response time to within 15 minutes, and enables transparent order status inquiry, providing efficient and reliable services for global customers. Guided by the "Internet + Manufacturing" concept, our long-term strategic goal is to construct an Industry 4.0 smart PCB factory, realizing full-process digitalization and intelligence through the integration of advanced digital management, intelligent production equipment, and lean manufacturing processes.

Core Product Range

Maxipcb® offers a comprehensive portfolio of high-end PCB products to meet diverse application demands, including: Radio Frequency (RF) PCBs, Microwave PCBs, Hybrid High-Frequency PCBs, FR4 Double-Sided/Multi-Layer PCBs, 1~3+N+3 Staged HDI Boards, Anylayer HDI Boards, Rigid-Flex PCBs, Blind & Buried Hole PCBs, Blind Slot PCBs, Backdrilled PCBs, IC-Specific Substrates, and Heavy Copper PCBs.

Key Technical Specifications

1. Substrate Materials

We adopt globally renowned high-performance dielectric materials for high-end and high-frequency applications, including: Rogers series (RO4350B, RO3003, RO4003, RO3006, RT/Duroid 5880, RT5870), Arlon, Isola, Taconic, PTFE F4BM, and Teflon-based low-loss laminates.

2. Layer Configuration

Flexible layer design is available with configurable layer counts: 2L, 4L, 6L, 8L, 10L, 12L, 14L, 16L, 18L, 20L, 22L, 24L, 26L, 28L, 30L, catering to diverse high-density and high-speed design requirements.

3. Dielectric Constant (DK)

A full range of DK options are available to optimize high-frequency signal transmission: 2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15, 10.2.

4. Surface Finishing Options

Diversified surface treatment solutions: OSP, ENIG, Lead-Free HASL, Plated Gold, Flash Gold, Immersion Tin, Immersion Silver, Electrolytic Gold (meeting welding, conductivity and environmental reliability needs).

Manufacturing Capabilities

Maxipcb® boasts strong high-precision and special process capabilities: Golden Finger Beveling, Heavy Copper Fabrication, Blind & Buried Via Processing, Precision Impedance Control, Resin-Filled Vias, Carbon Ink Printing, Backdrilling, Countersink Machining, Depth-Controlled Drilling, Half-Plated Holes, Press-Fit Holes, Peelable Blue Mask, Peelable Solder Stop, Thick Copper Circuitry, Oversized Board Customization.

Application Fields

Our high-end PCBs are widely used in high-tech and high-reliability fields: Consumer Electronics, Aerospace & Defense, Antenna & Communication Systems, High-Power Equipment, Medical Instruments, Automotive Electronics, Industrial Automation, Cellular Handheld Devices, WiFi Antennas, Automotive Telematics & Infotainment, WiFi/Computing Equipment, Radar Systems, Power Amplifiers, Industry 4.0, Digital Terminals, Power Supply Systems, Computer Hardware.

High-End PCB Core Advantages

•High-Density & High-Speed: Specializes in 1~3+N+3 staged/anylayer HDI, ultra-fine line/space, microvia, 56Gbps signal transmission and ±5% impedance control.

• High Reliability: Compliant with IPC-A-600 (Class 3), IPC-6012 (Class 3), ISO9001, ISO14001, IATF16949; full-process quality control ensures stable performance in harsh environments.

• Customization Flexibility: Supports customization of layer count, board thickness, surface finish and special processes to match customer needs.

• Environmental Compliance: Lead-free, RoHS compliant, adopting eco-friendly materials and processes.

Service Commitment

We offer one-stop PCB solutions (design optimization, technical consultation, prototyping, mass production, after-sales) and strive to be a trusted high-end PCB partner globally.

Model : 12L 2+N+2 HDI

Material：FR-4 ITEQ

Layer ：12L 2+N+2 HDI

Color ：Blue /White

Finished Thickness：1.6m

Copper Thickness ：inner1OZ outer0.5OZ

Surface Treatment ：Immersion Gold + OSP

Min Trace / Space ：3mil/3mil

Min Hole ：Mechanical hole 0.2mm，Laser Hole 0.1mm

Application ：Intelligent digital products
