Name: Camera Module Rigid flex PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Enterprise Overview

Maxipcb is a professional manufacturer with over 17 years of experience in RF PCB (Radio Frequency PCB) manufacturing in China. The company has in-depth insight into the critical impact of high-quality RF materials on PCB performance, and clearly understands that key parameters such as RF microwave energy levels, operating frequency, operating temperature range, current and voltage are decisive factors in selecting suitable materials for high-frequency PCB fabrication.

With profound expertise in RF PCB materials, Maxipcb maintains sufficient inventory of core materials to ensure fast delivery and meet customers’ urgent production needs. The company’s confidence in product quality stems from its experienced engineering and production teams, who cooperate closely with the QA department to strictly control each production process and deliver qualified, high-reliability RF PCB products. Customer satisfaction is evidenced by consistent repeat orders, and quality has always been the core value of Maxipcb—we fully recognize the significance of quality for long-term cooperative relationships. Over the past 17 years, we have continuously developed and improved our production capacity and technical capabilities with the support and companionship of our valued customers.

2. Core Material System

2.1 RF/Microwave PCB Materials

Maxipcb adopts high-performance specialized materials for RF/microwave PCB production, including Rogers series (RO4350B, RO3003, RO4003, RO3006, RT/Duroid 5880, RT5870), as well as Arlon, Isola, Taconic, PTFE F4BM and Teflon materials, ensuring excellent high-frequency signal transmission performance and structural stability.

2.2 Hybrid PCB Materials (Mixed Dielectric/Laminate)

To meet diverse application requirements, Maxipcb provides customized hybrid PCB solutions with mixed dielectric laminates, including common combinations such as Rogers RO4350B + FR4, RO4350B + IT180, RO4003C + FR4, RO3010 + FR4 and RO3003 + FR4, effectively balancing high-frequency performance and cost control for different project scenarios.

3. Surface Finishing Solutions

Maxipcb offers a full range of surface finishing options to meet the reliability and soldering requirements of RF/microwave PCBs and other high-end products, including OSP, ENIG (Electroless Nickel Immersion Gold), lead-free HASL (Hot Air Solder Leveling), full-plate gold plating, flash gold, immersion tin, immersion silver and electrolytic gold.

4. Key Manufacturing Capabilities

The company boasts comprehensive high-precision processing capabilities, covering golden finger fabrication, heavy copper circuit production, blind/buried via processing, precision impedance control, resin plug hole, carbon ink printing, backdrilling, countersink hole, depth-controlled drilling, half-plated hole, press-fit hole, peelable blue mask, peelable solder stop, thick copper manufacturing and oversized PCB production, fully supporting the customization needs of RF/microwave PCBs and other high-end PCB products.

5. Layer Configuration & Dielectric Constant (DK)

Layer coverage: 2L, 4L, 6L, 8L, 10L, 12L, 14L, 16L, 18L, 20L, 22L, 24L, 26L, 28L, 30L, supporting flexible customized layer design to adapt to high-density, high-frequency and miniaturized application requirements of RF/microwave PCBs.

Customizable dielectric constant (DK): 2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15, 10.2, precisely matching the electrical performance requirements of RF/microwave PCBs, ensuring stable and efficient high-frequency signal transmission.

6. Product Application Scenarios

Maxipcb’s RF/microwave PCBs and other high-end PCB products are widely applied in various high-end fields, including consumer electronics, military/space, high-power equipment, medical devices, automotive electronics, industrial control, antenna & communication systems, handheld cellular devices, WiFi antennas, telematics and infotainment, computing, radar and power amplifiers, fully meeting the high-reliability and high-frequency performance requirements of diverse application scenarios.

7. Core Advantages & Service Commitment

Maxipcb is committed to building an Industry 4.0 smart PCB factory under the "Internet +" strategy, and has independently developed an industry-leading automatic PCB quotation and ordering system, providing global customers with professional RF PCB technical support and integrated one-stop production services. The company implements Total Quality Management (TQM) and holds authoritative certifications including UL, ISO9001 quality management system and SGS RoHS environmental compliance certification, ensuring product standardization and reliability.

With over 17 years of RF PCB manufacturing experience, professional material expertise, sufficient inventory support, and strict quality control, Maxipcb has established long-term cooperative relationships with global customers. We will continue to focus on technological innovation and capacity improvement, providing customers with more stable, high-performance RF/microwave PCB solutions and satisfactory services.

Dielectric Constant (DK): 2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2

Application: Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers

Model : Rigid-Flex Camera Module PCB

Material : FR-4 + PI

Layer : Rigid 2L / Flex 2L

Color : Green/White

Finished Thickness : Rigid0.4mm, Flex 0.15mm

Copper Thickness : 1OZ

Surface Treatment : NiPdAu PCB

Min Trace / Space : 3mil/3mil

Application : Camera Module PCB

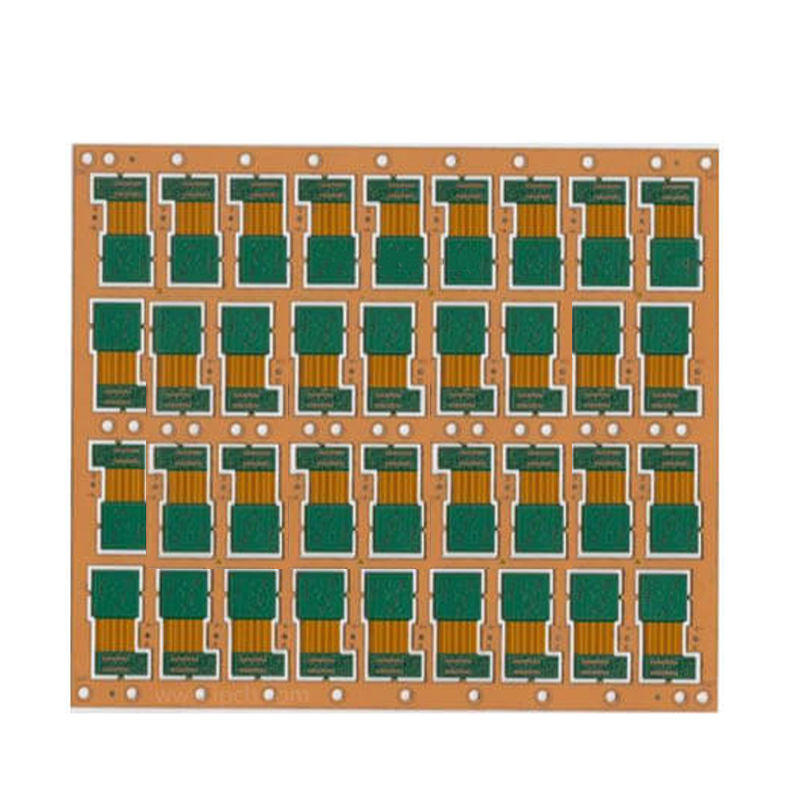

Camera Module Rigid flex PCB
