Arlon PCB delivers a full range of high-speed and high-frequency PCB electronic materials tailored for PCB manufacturers. Headquartered in the United States, Arlon specializes in thermosetting products crafted from high-performance materials such as polyimide and polymer resin, as well as advanced solutions based on PTFE (Polytetrafluoroethylene) and ceramic filling—all backed by decades of technical expertise.

With over 50 years of experience in PTFE-based microwave laminates and more than 30 years in polyimide laminates and special epoxy resin laminates, Arlon’s products outperform traditional standard FR-4 materials in professional electrical, thermal, and mechanical performance. As a trusted brand under Rogers Corporation—a global leader in high-frequency circuit materials—Arlon inherits Rogers’ world-class R&D resources and supply chain strength while retaining its own profound expertise in extreme-environment PCB applications. This powerful synergy strengthens Rogers’ position in the rapidly growing fields of communication infrastructure, automotive, aerospace, and national defense, making Arlon a reliable partner for high-performance PCB needs.

1. High-Frequency Microwave Circuit Board Materials (PTFE Series)

Struggling with signal loss and instability in high-frequency applications? Arlon’s PTFE-based high-frequency microwave circuit board materials offer a wide range of dielectric constants (2.2, 2.3, 2.45, 2.5, 2.55, 2.6, 2.65, 2.95, 3.0, 3.2, 3.38, 3.5, 4.1, 4.3, 4.5, 6.15, 10.0) and a ultra-low dielectric loss (≤ 0.0030). With stable performance even in harsh conditions, these materials are widely trusted in satellite communication, navigation, radar, antennas, power dividers, combiners, couplers, driver amplifiers, and other critical high-frequency products.

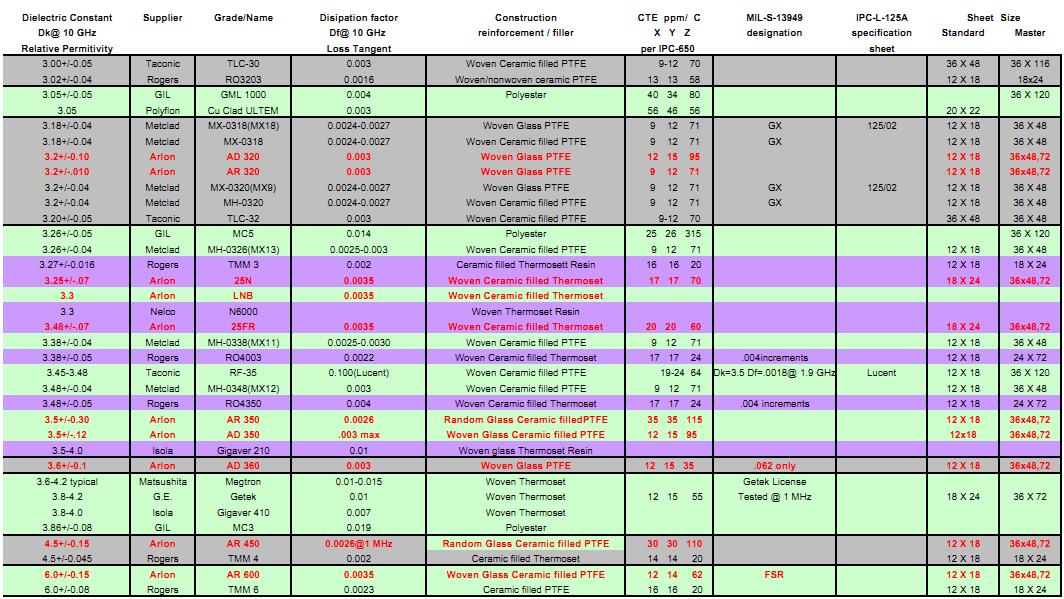

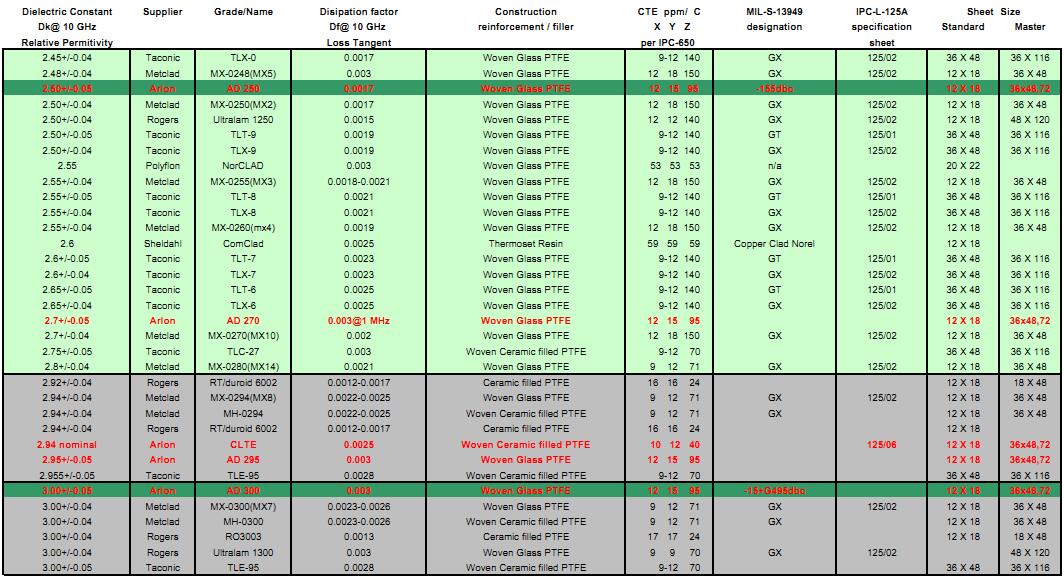

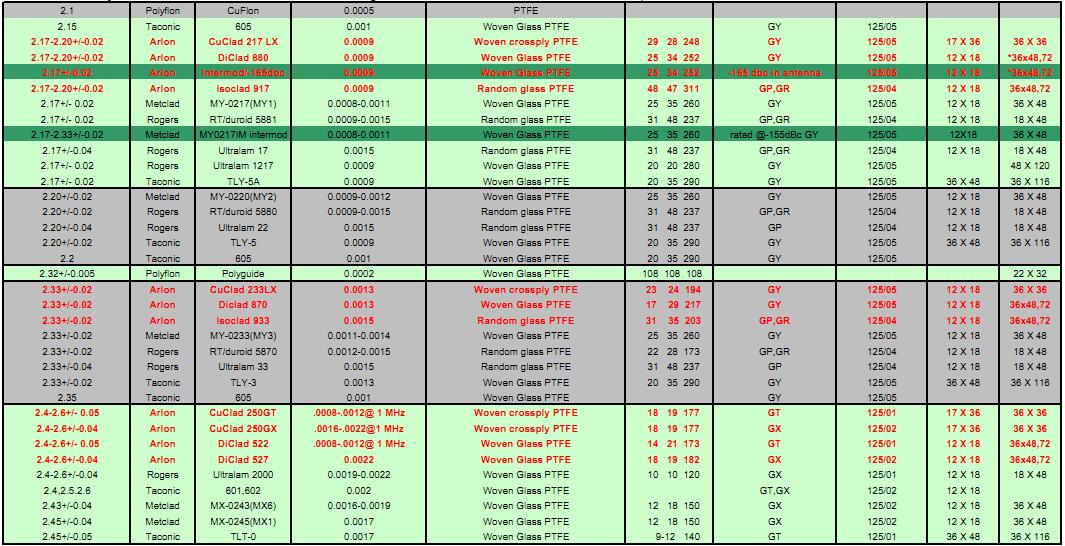

Comparison of Arlon, Taconic, Rogers PCB high frequency materials

2. Common Arlon PCB Material Models

Arlon offers a comprehensive portfolio of materials to meet diverse application needs, with commonly used models including: AD255, C03099, C06099, C04099, AD300, C03099, C04099, C06009, TC600, AD250, C02055C, TC350, MCG300CG, DCL220, CUCLAD 217LX, CUCLAD 250Gx, and ARLON 55NT.

3. Classification & Application of Arlon PCB Prototype Products

Arlon PCB prototype products are divided into two core categories, with each material engineered to solve specific customer pain points and meet strict application requirements:

3.1 High-Reliability Polyimide Materials (33N, 35N, 85N)

Need PCBs that can withstand extreme temperatures and harsh service environments? Arlon’s high-reliability polyimide materials are designed for scenarios like aerospace equipment control systems, semiconductor aging tests, oil drilling, and ultra-high-layer PCB processing. Boasting an industry-leading glass transition temperature (Tg 250°C) and decomposition temperature (TD 380°C), these materials ensure stable performance in the most demanding conditions—where failure is not an option.

3.2 Thermount Materials (55NT, 55ST, 55RT)

Facing challenges with bare chip packaging, high-density drilling, or weight constraints? Arlon’s Thermount materials deliver exceptional dimensional stability (Coefficient of Thermal Expansion, CTE) and are ideal for bare die packaging. Their non-woven resin fiber structure enables high-density laser drilling, anti-CAF (Conductive Anodic Filament) protection, and lightweight design—perfect for high-reliability electronic products with strict weight requirements, such as high-end packaging substrates, navigation systems, and ALIVH (Any Layer Interstitial Via Hole) processes.

3.3 No-Flow Series (47N, 49N, 99N)

For rigid-flex bonded boards and heat-dissipating cold plates in automotive and high-power applications, Arlon’s no-flow series offers unmatched performance. These materials are engineered to handle high temperatures and heavy loads, making them a go-to choice for industries where reliability and heat management are critical.

3.4 Thermal Conductivity Series (99N, 99ML)

Heat accumulation is a major challenge in LED and high-power power supply applications—and Arlon’s thermal conductivity series materials are the solution. With superior heat transfer performance, they boost device reliability, extend service life, and ensure stable operation even in high-power scenarios, making them a game-changer for LED and power supply manufacturers.

3.5 11N Material

Developed in recent years, Arlon’s 11N material (Tg 220°C, TD 310°C) is designed for high-speed backplanes, digital-analog hybrid microwave communication, semiconductor testing, and other cutting-edge applications. Its balanced performance and durability make it a promising choice for next-generation electronic products.

4. Arlon Microwave Materials

Arlon’s microwave materials cover a dielectric constant (DK) range of 2.2 to 10.2, with two main types tailored to diverse needs:

Pure PTFE: Equipped with different reinforcing materials (glass woven fabric, non-woven glass fiber) to balance performance and flexibility, meeting the unique requirements of various microwave applications.
CLTE Series: PTFE filled with ceramic powder, featuring exceptional temperature stability—DK remains unchanged with temperature, and CTE is extremely small. It can be manufactured into PCBs with up to 64 layers for global communication satellites. Other ceramic powder-filled PTFE materials offer a variety of dielectric constants, making them ideal for multi-layer microwave printed boards. These products are widely used in mobile phones, antennas, base station electronic systems, wireless broadband, and the Internet of Things (IoT).

4.1 FOAMCLAD Material (Arlon Exclusive)

Looking for a cost-effective solution for base station antennas and RFID applications? Arlon’s unique lightweight FOAMCLAD foam material is tailor-made for these scenarios, offering a one-of-a-kind combination of low cost, low signal loss, and minimal surface wave—advantages no competitor can match. It helps you balance performance and cost efficiency, without compromising on reliability.

4.2 TC350 Material (Key High-Performance Product)

Arlon’s TC350 is a glass fiber-reinforced, ceramic-filled PTFE composite PCB material—engineered to solve the most pressing challenges in high-power, high-frequency applications. Its core advantages include:

Enhanced Heat Transfer: Equipped with “best-in-class” thermal conductivity, it reduces dielectric loss and insertion loss while efficiently dissipating heat—eliminating hot spots and boosting equipment reliability.
Improved Power Handling Capacity: Superior thermal conductivity extends the service life of active components, reducing maintenance costs and improving overall system performance.
Complementary Thermal Management: Works seamlessly with heat sinks, radiators, or thermal vias, providing designers with additional flexibility to manage heat—even in scenarios with limited thermal management options.
Stable Dielectric Constant: Maintains ultra-stable performance across a wide temperature range, helping power amplifier and antenna designers maximize gain and eliminate dead-band bandwidth loss caused by dielectric drift—critical for phase and impedance-sensitive devices like power amplifier network transformers.
Reliable Plated Through Holes: Low Z-direction CTE matches copper, ensuring unparalleled reliability of plated through holes and long-term performance.
Stress Resistance: As a “soft substrate,” it is relatively insensitive to vibration-induced stress and impact from drop tests—ideal for rugged applications.
Low Insertion Loss: Uses microwave-grade low-profile copper with strong adhesion. Unlike ceramic hydrocarbons that require “toothed copper” for bonding, TC350 uses smooth copper, minimizing copper skin effect loss—especially critical at high RF and microwave frequencies.

5. Application Fields of Arlon PCB Materials

Arlon PCB materials are engineered for the most demanding industries and scenarios, providing tailored solutions that exceed industry standards:

Locomotive and rail transit, electric power, renewable energy, automotive body and chassis, lighting, equipment and inverter power supplies, national defense industrial equipment, on-board communication, on-board entertainment, Internet of Vehicles (IoV), industrial automation, industrial servo systems, indoor lighting, smart homes, industrial equipment control, mobile phone-related products, electric vehicle power systems, communication equipment, IoT, storage, security systems, power amplifiers, filters and couplers, tower mounted amplifiers (TMA) and tower mounted boosters (TMB), thermal loop antennas sensitive to dielectric drift, microwave combiners, and power dividers.

6. Maxipcb: Your Trusted Arlon PCB Manufacturer

As a professional Arlon PCB manufacturer, Maxipcb combines Arlon’s superior material performance with our mature fabrication expertise to deliver one-stop solutions. Our capabilities include:

Number of layers: 1-48 layers
Minimum Line Width/Spacing: 3mil (0.075mm)
Minimum aperture: 4mil (0.1mm)
Plate thickness: 0.1mm~6.0mm
Maximum board size: 20*31.5 inches (500mm*800mm)
Material coverage: Full range of Arlon PCB prototypes

We also offer fast sample delivery to accelerate your project timeline:

Double-sided Arlon PCB samples: 3 days, expedited delivery available in 24 hours
4-layer Arlon PCB samples: 6 days, expedited delivery available in 48 hours
6-layer Arlon PCB samples: 7 days, expedited delivery available in 72 hours
8-10 layer Arlon PCB samples: 9 days, expedited delivery available in 96 hours

Backed by Arlon’s NASA-certified aerospace-grade materials and Rogers’ global reputation, Maxipcb ensures your Arlon PCBs meet the strictest technical requirements and delivery timelines. If you need Arlon PCB manufacturing services, contact Maxipcb today for professional support and customized solutions.

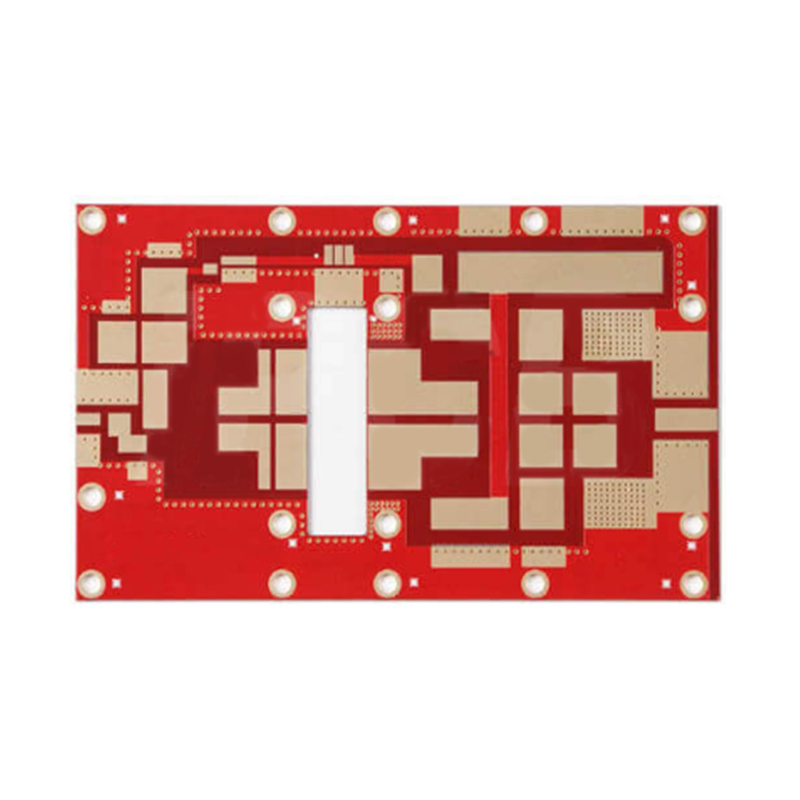

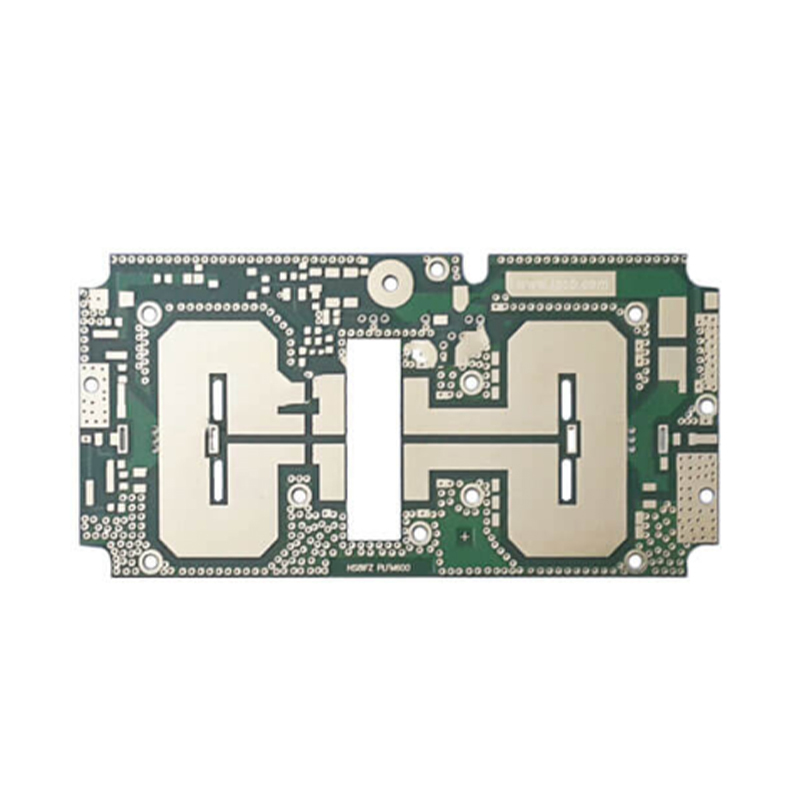

Product Name: Arlon pcb

Material: TC350

Quality standard: Maxipcb6012 Class2

Dielectric constant: 3.5

Layers: 2 Layer PCB

Thickness: 1.2mm

Copper thickness: finished copper thickness 1oz

Surface technology: Immersion Gold

Application: High power amplifier
