1. Definition of Backdrill Via

A backdrill via is a precision depth‑controlled secondary drilling process applied in multilayer PCB fabrication.

For high‑layer‑count boards requiring interconnection between non‑consecutive layers (e.g., Layer 1 to Layer 9 in a 12‑layer stack‑up), conventional plated through‑holes (PTH) form a full conductive path from top to bottom.

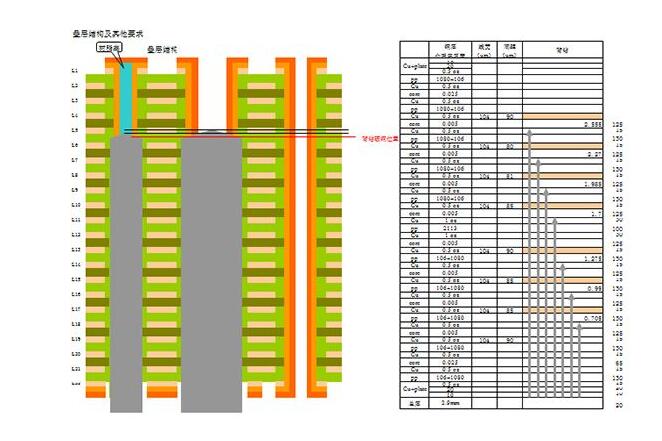

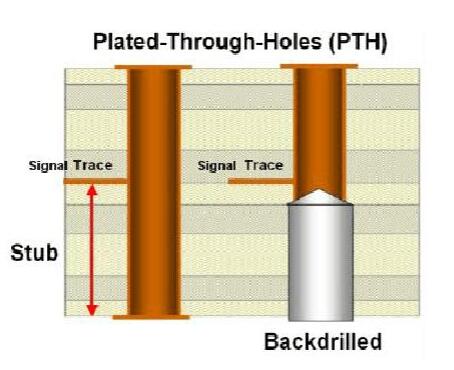

The unused plated via barrel extending beyond the functional connection layer creates a non‑functional conductive stub, which acts as a parasitic transmission branch.

This stub disrupts signal propagation paths and degrades signal integrity in high‑speed links.

Backdrilling removes such redundant stubs via controlled secondary drilling.

Due to process limitations including drill geometry and electrolytic copper adhesion, a minimal stub segment is intentionally retained, referred to as the B‑value.

Industry‑accepted B‑value control is typically 50–150 μm for optimal high‑speed performance.

2. Key Benefits of Backdrilling

Reduce common‑mode noise and crosstalk
Improve signal integrity and transmission quality
Enable robust implementation in thick, high‑layer‑count PCBs
Reduce dependency on buried and blind vias, simplifying manufacturing complexity

For PCBs with more than 4 layers, through‑hole interconnections between inner layers inherently generate residual plated stubs.

As signal frequency rises into the high‑speed domain, these stubs exhibit antenna‑like radiation characteristics, introducing EMI that impairs system stability.

Backdrilling eliminates such EMI effects by removing excess plated via sections.

3. Mechanism for Improving Signal Integrity

Backdrilling is performed after PTH formation, using a drill bit with a slightly larger diameter to precisely remove non‑functional stubs at a controlled depth.

Drilling depth is calibrated to approach the target functional layer without penetrating or damaging internal planes.

The ideal residual stub length is controlled to <10 mils.

Backdrill diameter is typically 8–10 mils larger than the original PTH to ensure sufficient anti‑pad and alignment clearance, preventing damage to adjacent planes or traces during secondary drilling.

4. Functional Purpose of Backdrill Vias

Backdrilling eliminates non‑functional via segments that provide no electrical or signal‑transmission utility.

This mitigates signal reflection, scattering, and propagation delay, thereby reducing waveform distortion in high‑speed channels.

Research indicates that system‑level signal integrity is strongly influenced by dielectric material, transmission line design, connectors, and device packaging.

Among these, via structures represent one of the most dominant factors.

5. Application Conditions for Backdrilling

When signal data rates exceed 5 Gbps, the influence of inner‑layer via stubs on signal quality becomes significant.

To minimize stub effects:

Optimize high‑speed routing to minimize stub length to a negligible value
Apply backdrilling to remove excessively long stubs, with awareness that this increases manufacturing cost

6. Standard Backdrill Manufacturing Flow

Prepare PCB core panels with precision tooling holes for registration
Perform through‑hole drilling and copper plating; seal tooling holes with dry film before plating
Define outer‑layer circuit patterns
Perform pattern plating; seal tooling holes with dry film prior to processing
Align panels using original drill targets and execute controlled backdrilling on designated vias
Conduct post‑drill cleaning to remove drill debris and contaminants

7. Technical Characteristics of Backdrill PCBs

Typically constructed on rigid PCB substrates
Layer count generally ranges from 8 to 50 layers
Board thickness ≥ 2.5 mm
High aspect‑ratio via structures
Commonly used in large‑format PCB designs
Minimum primary drill diameter ≥ 0.3 mm
Sparse outer‑layer routing, often with press‑fit hole arrays
Backdrill diameter enlarged by 0.2 mm relative to the original via
Depth tolerance controlled at ±0.05 mm
Minimum dielectric thickness between target layer M and M–1: 0.17 mm

8. Typical Applications

Backdrill‑processed PCBs are widely deployed in high‑reliability and high‑performance fields, including:

Telecommunication infrastructure equipment
Enterprise‑class servers and data center hardware
Medical electronic systems
Military and aerospace electronics
