Name: 2 Layer F4BM PTFE PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

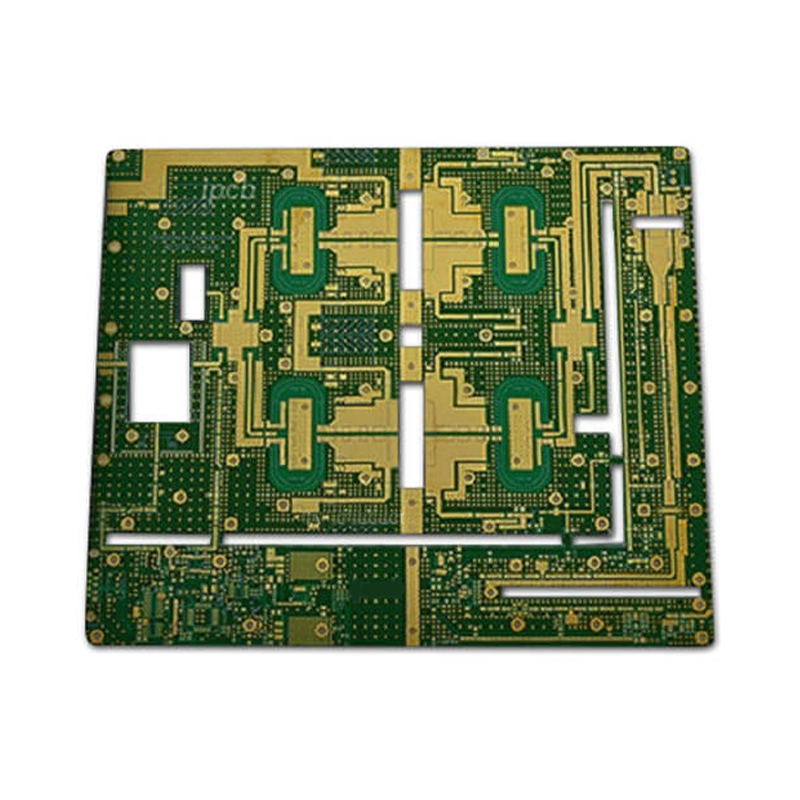

2 Layer F4BM PTFE PCB

Product Model: F4BM PTFE PCB

Dielectric Constant (DK): 2.65

Layer Count: 2 Layers

Dielectric Thickness: 0.9mm (60mil)

Finished Thickness: 1.0mm

Base Copper Spec: ½oz (17μm) HH/HH

Finished Copper Thickness: 1oz (35μm)

Surface Treatment: Immersion Gold

Application: Power divider PCB, power amplifier antenna PCB

Description
Data Sheet

1. F4BM-1/2 PTFE Laminate Manufacturing & Electrical Performance

F4BM-1/2 is manufactured by laminating woven glass fabric, bond film, polytetrafluoroethylene (PTFE) resin, and PTFE film via scientific formulation and strict laminating processes. As an upgraded product of the F4B series, it boasts superior electrical performance compared with the F4B series, including a wider dielectric constant range, lower dielectric loss tangent, higher insulation resistance, and more stable overall performance—enabling it to replace similar foreign products and adapt to more high-frequency application scenarios.

For more detailed technical parameters and specifications of F4BM, please refer to the professional technical documentation of F4BM series.

2. F4BM PTFE PCB Dimensions

Standard available dimensions (mm): 12''x10''(300x250mm), 14''x15''(350x380mm), 17''x22''(440x550mm), 18''x24''(460x610mm), 20''x20''(500x500mm), 20''x24''(500x600mm), 33''x33''(840x840mm), 24''x36''(610x914mm). Custom dimensions are also available to meet specific customer needs, providing flexible material solutions for diverse project requirements and effectively reducing material waste.

3. Dielectric Constant of F4BM PTFE PCB

Dielectric constant (@ 10GHz): 2.2, 2.55, 2.65, 3.0. These stable dielectric constant values ensure minimal signal delay and loss during high-frequency transmission, laying a solid foundation for the stable operation of F4BM PTFE PCB in high-frequency scenarios. The dielectric constant of F4BM can be precisely adjusted by modifying the ratio of PTFE to woven glass fabric, balancing low loss and dimensional stability.

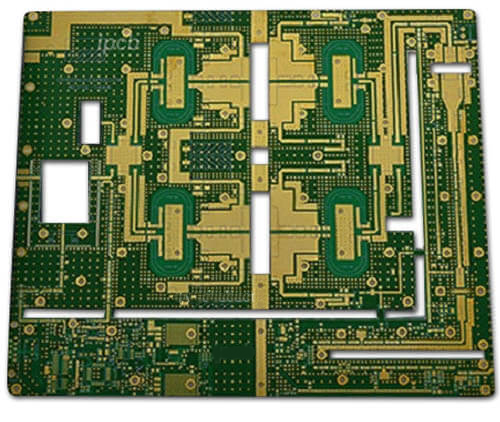

F4BM PTFE PCB

4. F4BM PTFE PCB Overview

As a high-performance PTFE-based high-frequency PCB substrate, F4BM PTFE PCB fully leverages the excellent electrical and mechanical properties of F4BM-1/2 laminate, making it widely applicable in radio frequency (RF) and microwave fields. It integrates the advantages of low loss, stable performance, and good processability, providing reliable material support for high-frequency electronic equipment.

5. RF/Microwave PCB Application Fields

Radio frequency (RF) and microwave PCBs are widely applied in a variety of fields, including consumer electronics, military/space, high-power equipment, medical devices, automotive, and industrial fields. F4BM PTFE PCB, with its superior electrical performance, provides reliable high-frequency signal transmission support for electronic products in these fields, and is especially suitable for microwave, radio frequency, radar, phase shifters, power dividers, and other devices.

Model：F4BM PTFE PCB
D K：2.65
Layer：2Layers
DielectricsThickness ：0.9mm(60mil)
Finished Thickness ：1.0mm
Material CoThickness ：½(17μm)HH/HH
Finished Co Thickness ：1OZ(35μm)
SurfaceTreatment ：Immersion Gold
Application ：Power divider pcb, power amplifier antenna PCB
