This article shares key knowledge about PCB pad design, including the definition of a pad, problems arising from incorrect pad sizes, pad classifications, dimension acquisition methods, and design/manufacturing standards. Incorrect pad size, alignment, or placement directly degrades electrical performance and manufacturing yield.
1. What is a Pad in PCB Design?

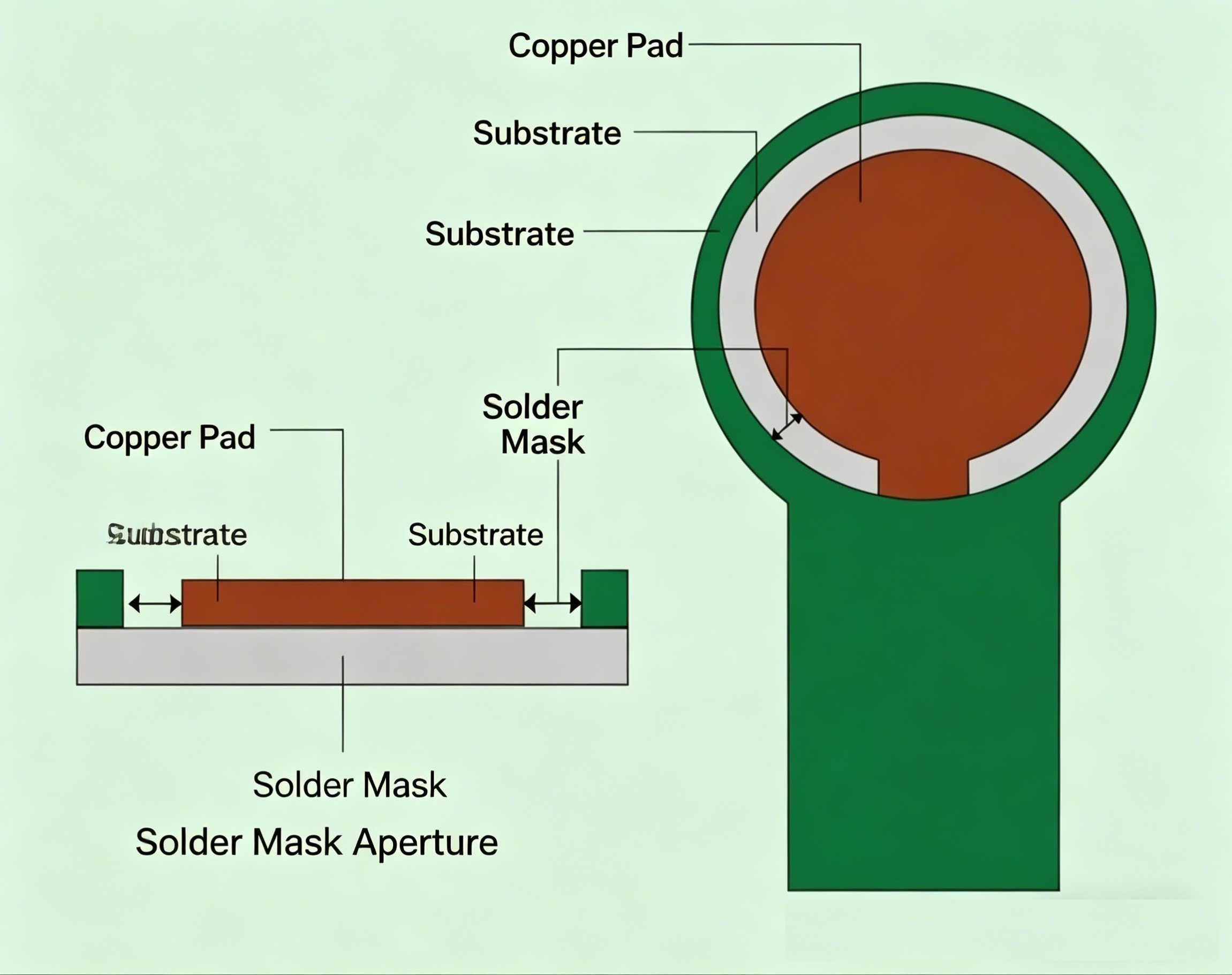

A pad is an exposed metal area on a printed circuit board (PCB) used to connect circuits on a die to the pins of a packaged chip. It serves as the foundational connection for component soldering and electrical conduction, much like the foundation of a building.
2. Problems Caused by Incorrect Pad Sizes in PCBs
Improper pad dimensions, shapes, or positions cause the following manufacturing and assembly defects:
- Component Floating: Oversized or misaligned pads cause chip shift during reflow, leading to solder bridging and insufficient component spacing.
- Incomplete Solder Joints: Undersized pads lack sufficient area to form a proper solder fillet, resulting in poor or open connections.
- Solder Bridging: Excessively large SMT pads induce component floating and short circuits; inadequate solder mask design also causes bridging.
- Tombstoning: Unequal pad sizes for small chip components (resistors/capacitors) create uneven heating, pulling the component upright.
- Solder Wicking: Oversized through-holes draw solder away from component leads; undersized holes hinder lead insertion.
- Through-Hole Breakout: Insufficient annular rings (metal between the drill and pad edge) cause broken circuits or unreliable solder joints due to drill wandering.
- Short Circuits: Oversized pads restrict routing; undersized pads place traces too close to components, risking metal-to-metal shorts.
3. Classification of PCB Pads
3.1 Surface-Mount Device (SMD) Pads
Pads for mounting surface-mount components, available in multiple shapes with specific applications:
- Square: Simple for DIY PCBs; used for large components.
- Round: Widely used for regularly arranged components on single/double-sided boards.
- Island: Combined pad structure for vertical irregular arrangements (e.g., tape recorders).
- Teardrop: Prevents pad peeling and trace breakage at connections; commonly used in high-frequency circuits.
- Polygon: Distinguishes pads with similar outer diameters but different hole sizes.

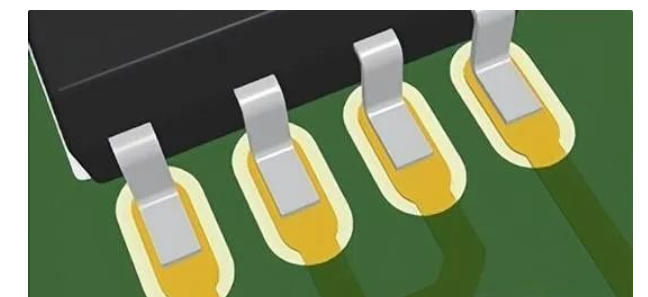

- Oval: Enhances peel resistance; used for dual in-line packages.
- Open: Prevents hole blockage after wave soldering.
Design elements include solder mask, solder paste, and pad numbering.

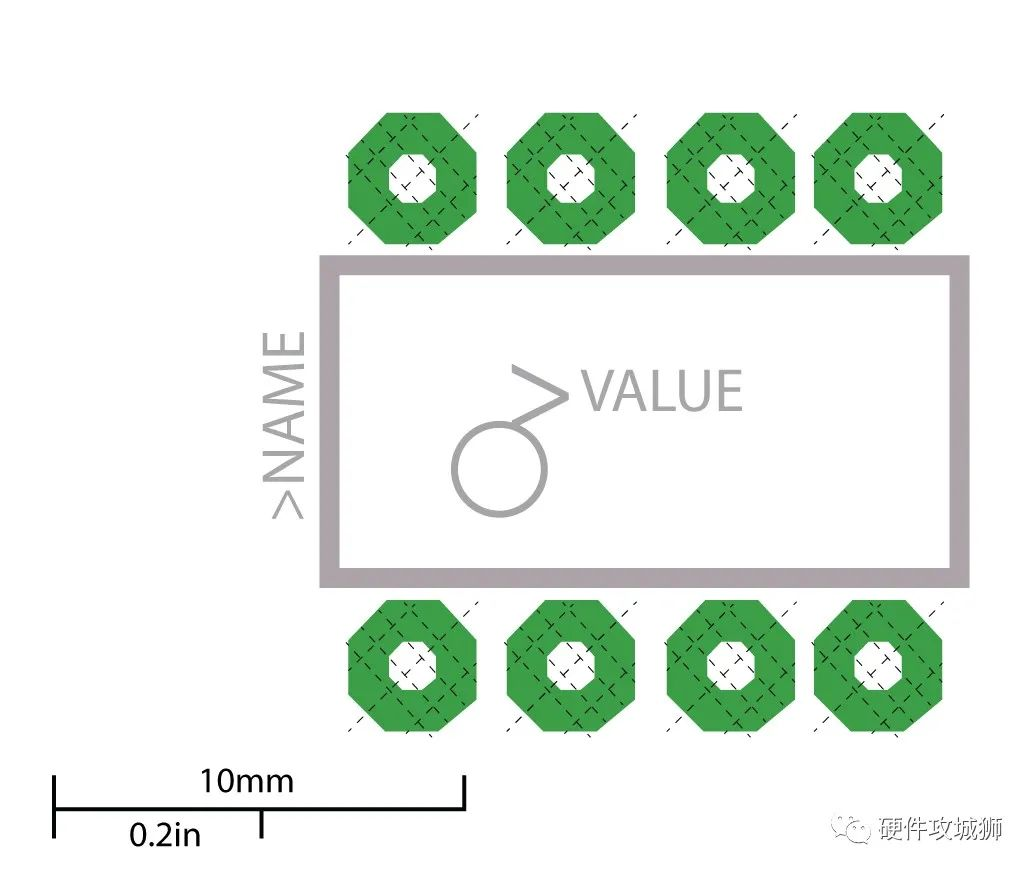

3.2 Through-Hole Pads
Pads for through-hole components, divided into two types:
- Plated Through-Hole (PTH): Copper-plated hole walls for electrical interconnection between layers.
- Non-Plated Through-Hole (NPTH): Unplated holes for mechanical mounting (screws/housings) to avoid short circuits.
Through-hole pads consist of top pads, bottom pads, inner pads, drill holes, annular rings, and pin numbers.

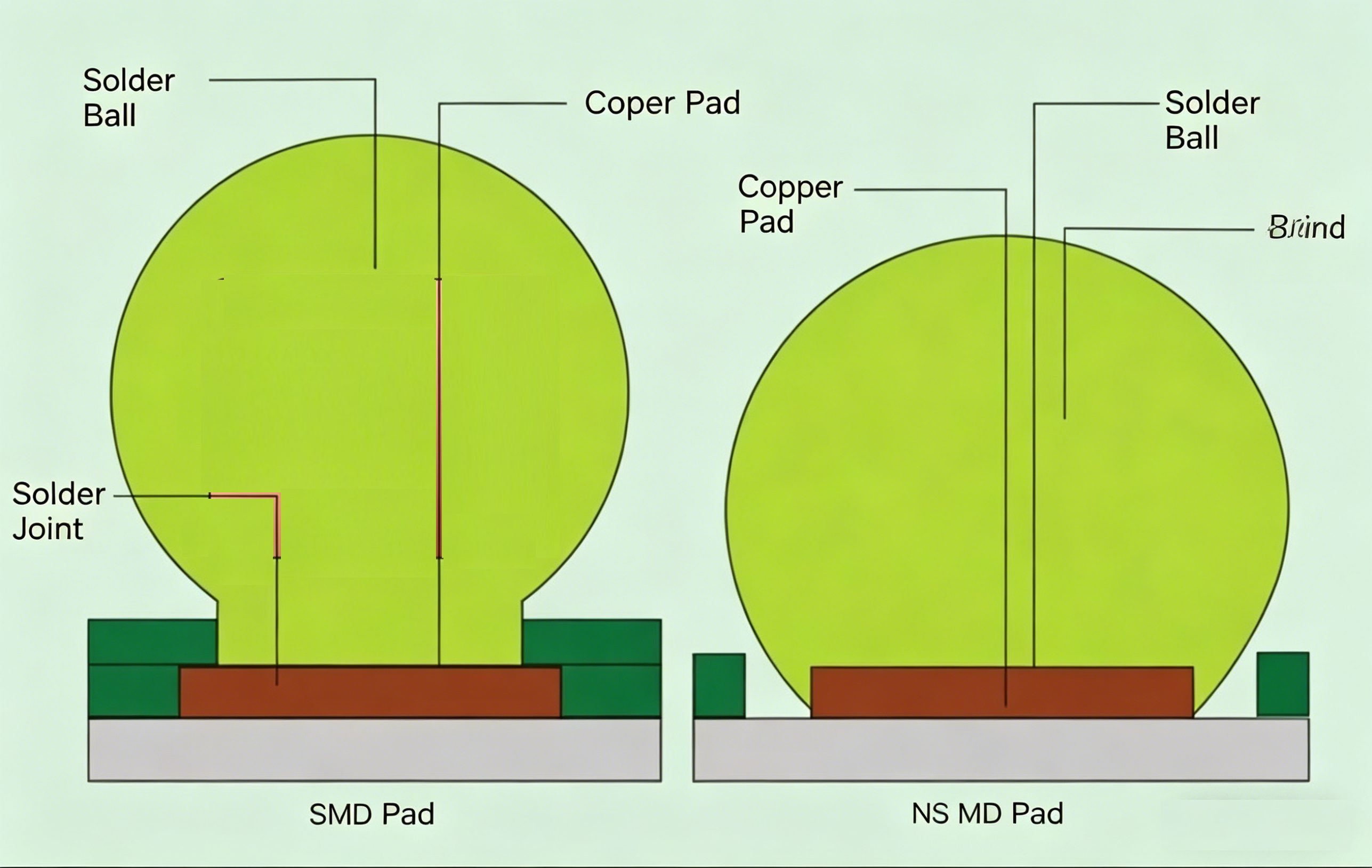

3.3 Special BGA Pads
Critical for BGA manufacturability, split into two categories:
- SMD (Solder Mask Defined): Solder mask opening smaller than the copper pad; prevents pad lifting and aids solder ball alignment.
- NSMD (Non-Solder Mask Defined): Gap between pad edge and solder mask; maximizes routing space for high-density/fine-pitch BGAs but risks delamination under stress.

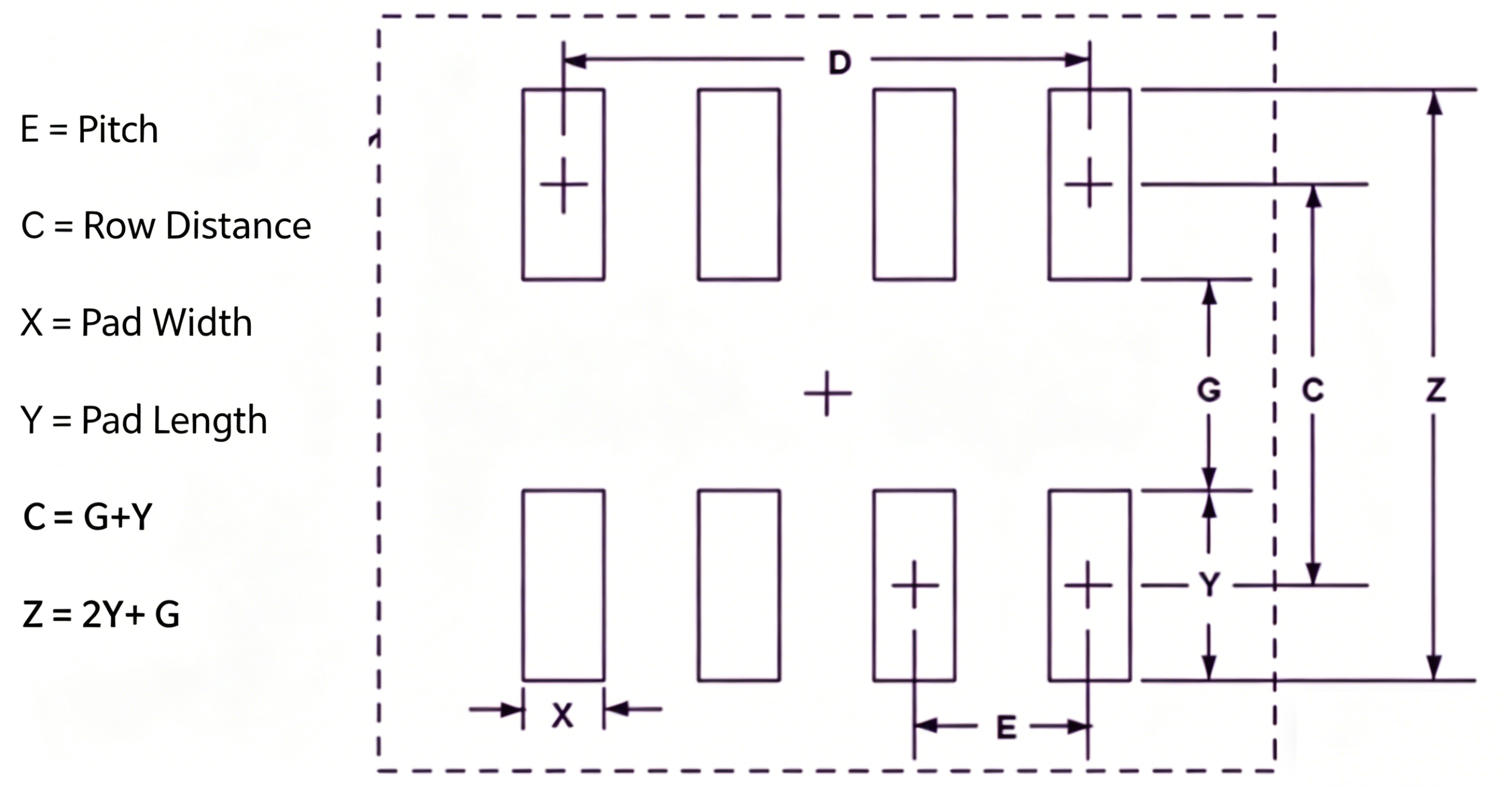

4. How to Obtain Correct PCB Pad Design Dimensions
Eight reliable methods to determine pad size and shape:
- Industry Standards: Follow IPC-7351 and other industry specifications.
- EDA Pad Generators: Built-in library wizards compliant with IPC standards.
- Component Datasheets: Manufacturer-recommended land patterns.
- Online Pad Calculators: Web-based tools for dimension calculation.
- Corporate Standards: Internal company specifications tailored to manufacturing.
- CAD Vendor Libraries: Pre-built pad libraries for licensed EDA tools.
- PCB Manufacturers: Fabricator-preferred dimensions for their processes.
- Third-Party Libraries: Commercial online PCB library resources.
5. PCB Pad Shape & Size Design Standards (For Reference)
- Minimum single-side pad width: ≥0.25 mm; maximum pad diameter ≤ 3× component hole diameter.
- Edge-to-edge pad spacing: >0.4 mm.
- Oval/rectangular pads recommended for dense routing; single-sided pad diameter ≥1.6 mm; double-sided weak-current hole diameter +0.5 mm.
- Large pads (hole >1.2 mm or diameter >3.0 mm): Diamond or quatrefoil shape.
- Through-hole components: Full copper coverage for single-sided boards; teardrop required for double-sided boards.
- Automated insertion components: Drip pads along bend directions for full solder joints.
- Large copper areas (>500 mm²): Daisy-chain pads and grid filling to avoid cold joints.
6. PCB Pad Manufacturing Process Requirements (For Reference)
- Test points: Diameter ≥1.8 mm for in-circuit testing; not placed within silkscreen areas.
- Pads with spacing <0.4 mm: Solder mask required to reduce wave-soldering shorts.
- SMD component tips: Tin-lead design (0.5 mm width, 2–3 mm length).
- Single-sided boards (hand-soldered): Tin grooves (0.3–1.0 mm width) opposite to solder flow.
- Conductive adhesive keypads: Match actual dimensions; gold fingers with specified plating thickness.
