SMD tantalum capacitors are electrolytic capacitors that use metallic tantalum (Ta) as the anode material. Classified by anode structure, they can be divided into foil-type and tantalum sintered pellet-type. Tantalum sintered pellet-type capacitors are further categorized into solid electrolyte and non-solid electrolyte types based on the working electrolyte, with solid tantalum electrolytic capacitors being the most widely used.
SMD tantalum capacitors are electrolytic capacitors that use metallic tantalum (Ta) as the anode material. Classified by anode structure, they can be divided into foil-type and tantalum sintered pellet-type. Tantalum sintered pellet-type capacitors are further categorized into solid electrolyte and non-solid electrolyte types based on the working electrolyte, with solid tantalum electrolytic capacitors being the most widely used.
Using metallic tantalum as the dielectric, SMD tantalum capacitors eliminate the need for electrolyte like conventional electrolytic capacitors, and also do not require capacitor paper coated with aluminum film for firing. This gives them almost no inherent inductance, but also limits their capacitance range.
SMD tantalum capacitors feature small size, a wide operating temperature range, high temperature resistance, long service life, high insulation resistance and low leakage current. For these reasons, they are widely used in various electronic products, especially those with high-density assembly and limited internal space such as mobile phones and portable printers.
Core Parameters of SMD Tantalum Capacitors
The core parameters of SMD tantalum capacitors include the following aspects:
- Capacitance: Unit is Farad (F), which represents the capacitor's ability to store electric charge, i.e., the maximum amount of charge a capacitor can hold.
- Voltage Rating: Unit is Volt (V), which refers to the maximum operating voltage a capacitor can withstand; exceeding this voltage may easily cause capacitor damage.
- Tolerance: Usually expressed as a percentage, it denotes the allowable deviation between the actual capacitance and the nominal capacitance of a capacitor. For example, if a capacitor has a nominal capacitance of 10μF with a tolerance of ±10%, its actual capacitance ranges from 9μF to 11μF.
- Operating Temperature Range: Indicates the temperature range within which the capacitor can operate stably; operating outside this range may affect the capacitor's performance.
- Polarity: Tantalum capacitors are typically polar components and must be connected with the correct polarity, otherwise the capacitor may be damaged.
In addition to the above core parameters, factors such as the physical dimensions (length, width, height), operating frequency characteristics and leakage current of SMD tantalum capacitors may also need to be considered when selecting capacitors.
How to Distinguish the Polarity of SMD Tantalum Capacitors
SMD tantalum capacitors are polar capacitors with distinct positive and negative poles. Correct polarity connection is crucial, as reverse connection may lead to short circuit or damage of the capacitor.
SMD tantalum capacitors are usually marked with a "+" symbol or a protruding indicator on one side, which designates the positive pole; the other side is the negative pole. If there is no marking on the capacitor, its polarity can be confirmed by the following two methods:
- Check Printed Markings: Some SMD tantalum capacitors have text or graphic markings printed on the positive pole side, which can also serve as a judgment basis.
- Check Package Structure: The positive pole of an SMD tantalum capacitor is generally associated with its package structure, and the positive terminal is usually equipped with a tantalum metal pin or other identifying features.
The correct connection method is to connect the positive pole to the positive terminal of the circuit and the negative pole to the negative terminal of the circuit, avoiding reverse installation. Incorrect connection may cause the capacitor to be damaged by overvoltage, so it is imperative to ensure correct polarity connection.

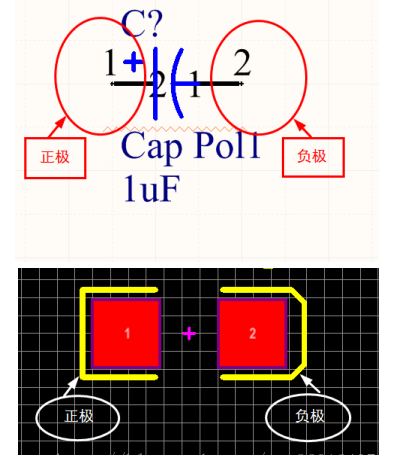

Mounting Direction of SMD Tantalum Capacitors on PCBs
The mounting direction of SMD tantalum capacitors on a Printed Circuit Board (PCB) is extremely important to ensure the normal operation and prevent damage of the capacitor.
In general, the mounting direction of SMD tantalum capacitors on PCBs should follow the following principles:
- Polarity Direction: SMD tantalum capacitors have positive and negative poles; the positive pole should be connected to the position marked with a positive (+) sign on the PCB, and the negative pole to the position marked with a negative (-) sign.
- Package Markings: The package of an SMD tantalum capacitor usually has a marking (such as a raised line or symbol) on the positive pole side, which can also be used as a basis for determining the mounting direction.
- Design Specifications: PCB design specifications should include mounting direction requirements for SMD tantalum capacitors to ensure the capacitors are soldered to the PCB in the correct orientation.
When mounting SMD tantalum capacitors, the correct polarity direction must be followed and package markings should be noted to ensure proper installation, preventing problems during soldering and circuit operation.
