1. Type‑C Pin Definitions & Functions

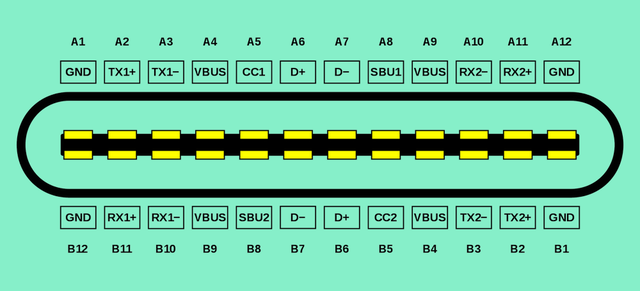

Type‑C is a symmetrical connector with 24 pins (12 on each side).
Pin Groups
- Power pins: VBUS (power supply)
- Ground pins: GND (reference ground)
- Data pins: Differential pairs for USB 2.0 / 3.0 (TX±, RX±, D+, D–)
- Configuration pins: CC1, CC2 (detection, orientation, power negotiation)
- Sideband use: SBU1, SBU2 (auxiliary signals)
2. Type‑C PCB Design Guidelines

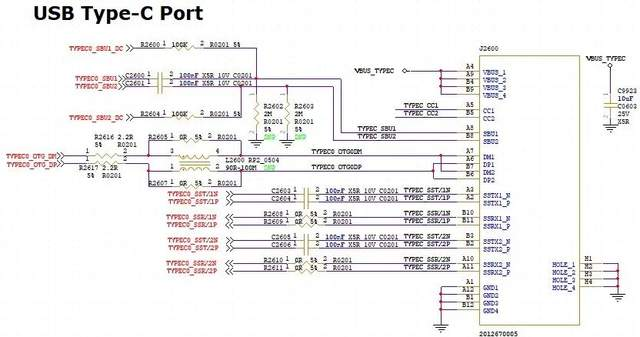

Schematic Design
- Define power rating for high power delivery
- Support USB 2.0 / 3.0 / PD protocols
- Include overvoltage, overcurrent, short‑circuit protection
- Ensure EMC and ESD robustness

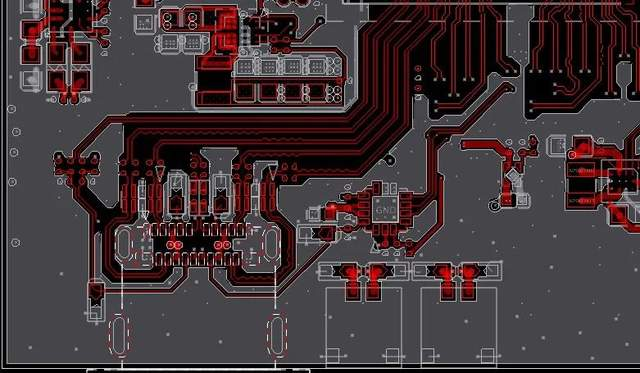

Layout & Routing Rules
-
ESD & common‑mode choke placement
Place ESD → common‑mode choke → RC components
close to the connector.
Keep
1.5 mm clearance between ESD and Type‑C for rework access.
-
Differential signal routing
Six differential pairs: TX1±, RX1±, TX2±, RX2±, D+D–.
- Route adjacent to a ground plane (dual‑sided ground best)
- Maintain consistent spacing
- Length match to avoid skew
-
CC1 / CC2 routing
Critical for attach detection, orientation, and PD.
Widen traces for stability and current capability.
3. Type-C Optimization (4 Key Points)
① Pad Design Optimization
- SMD pads: Match component footprint dimensions precisely
- Through‑hole pads: Optimize drill size to avoid loose or tight fits
② Impedance & Stackup Design
- Control impedance to reduce loss and crosstalk
- Set layer count, trace width/spacing, and dielectric thickness properly
③ Trace Width & Spacing (Cost & Yield)
- Avoid overly fine lines to reduce manufacturing difficulty
- Balance electrical performance with production yield and cost
Conclusion
Type‑C PCB design requires careful power, signal, EMC, and ESD planning. Optimize pads, impedance, routing, and use DFM analysis to ensure
high yield and stable production.
