USB 3.0 PCB Design Best Practices

Component Placement Guidelines

1. USB Controller & Connector Proximity: Place the USB controller as close as possible to the USB connector to minimize high-speed signal path length.
2. Filter Components: Position decoupling capacitors and ferrite beads (for high-frequency noise suppression) immediately adjacent to the USB connector pins.
3. Termination Resistors: Mount differential termination resistors as close as possible to the USB controller's transceiver pins.
4. Power Regulation: Locate voltage regulators supplying the USB interface near the connector to ensure stable power delivery and minimize noise coupling.

High-Speed Signal Routing Rules

General Routing Principles

• Prioritize routing of USB 3.0 differential pairs before any other signal traces.
• Minimize the number of vias and bends on high-speed signal lines to maintain consistent characteristic impedance and prevent signal reflection.
• Prohibited: 90° right-angle bends. Use 45° mitered bends or smooth arcs instead to reduce signal reflection and impedance discontinuities.
• Avoid routing high-speed signals beneath crystal oscillators, clock synthesizers, magnetic components, or clock memory ICs.
• Eliminate short stubs on signal lines. If stubs are unavoidable, limit their length to ≤50 mils to minimize signal reflection.
• Route high-speed signals on a single layer whenever possible. Ensure traces have an uninterrupted solid reference plane (preferably GND, alternatively VCC) for their entire length. Do not route traces across reference plane splits, as this increases loop inductance and electromagnetic radiation.
• Maintain sufficient separation between USB 3.0 differential pairs and any steep-edge digital signals or connectors to prevent crosstalk.

Differential Signal Routing Specifications

1. Impedance Control: Maintain a differential characteristic impedance of 90Ω ±10% for all USB 3.0 differential pairs.
2. Tight Coupling: Route differential pairs in tight-coupling mode, where the trace spacing is less than the individual trace width, to enhance noise immunity.
3. Length Matching: Ensure precise length matching between the two traces of each differential pair. The maximum allowable length mismatch between DP and DM is ≤50 mils. Length matching takes precedence over consistent trace spacing.
4. Crosstalk Isolation: Maintain a minimum separation of 50 mils between USB 3.0 differential pairs and all other signal traces. Minimize parallel routing lengths with high-speed clocks and AC signals to reduce crosstalk.
5. Consistent Geometry: Keep the spacing between differential pair traces uniform along their entire length to maintain consistent impedance.

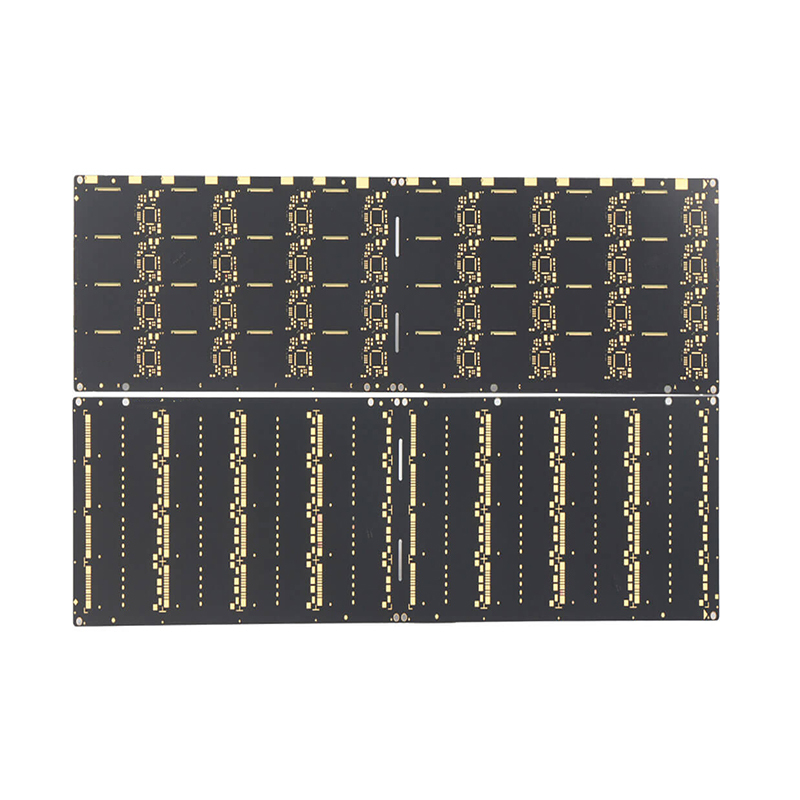

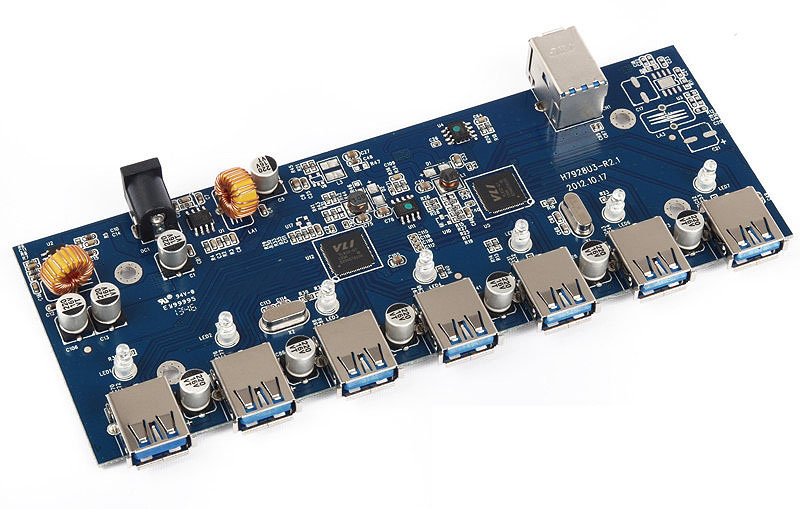

Model:  USB 3.0 PCB Substrate Board

Material: SI10U

Layers: 4L

Thickness: 0.3mm

Single size: 12.8 * 38.8mm

Resistance welding: PSR-2000 BL500

Surface treatment: Soft Gold

Minimum aperture: 0.1mm

Minimum line distance: 75um

Minimum line width: 40um

Application: USB 3.0 PCB Substrate Board
