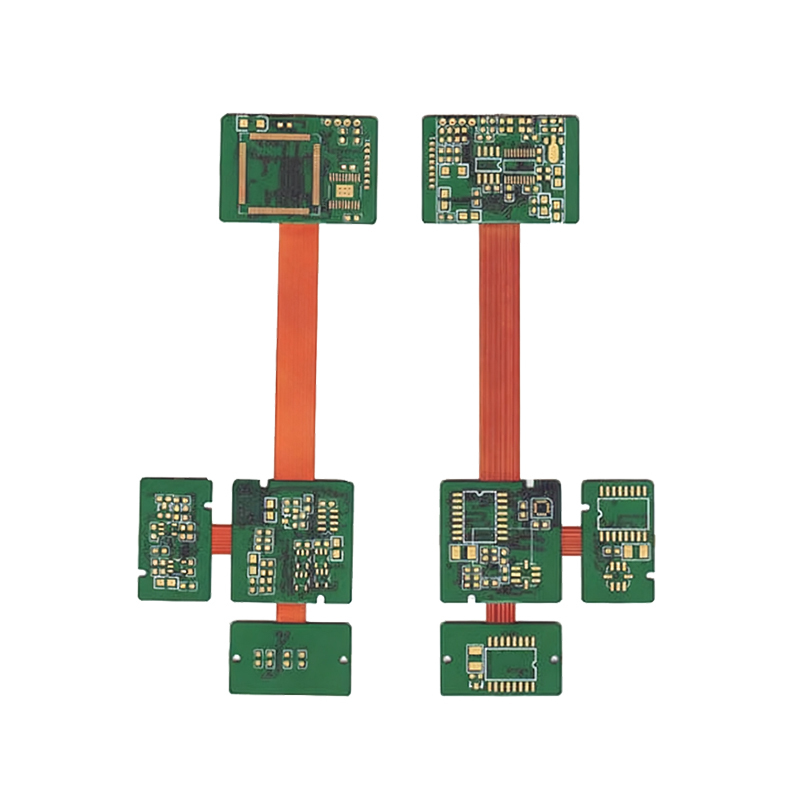

Unmanned aerial vehicle(UAV) Rigid-Flex PCB(R-FPCB)

Rigid-flex PCB is a composite circuit substrate that integrates the structural durability of rigid boards and the bending adaptability of flexible circuits. With superior environmental resistance and structural stability, it delivers outstanding performance under harsh operating conditions, making it the preferred solution for high-reliability scenarios including industrial control, medical equipment and military electronic devices.

According to lamination and forming processes, rigid-flex boards are divided into two mainstream structures: integrated composite type and combined assembly type. The integrated rigid-flex board completes lamination and compounding of rigid and flexible layers in the early stacking stage, and supports embedded blind and buried hole design to realize high-density miniaturized circuit layout. In contrast, the combined type fabricates rigid sections and flexible units separately, then integrates them into a single board through integral pressing, with only internal signal interconnection and no through-hole structure.

Material matching and process control are the core technical challenges of rigid-flex PCB manufacturing. Rigid boards generally adopt FR4 dielectric materials, while flexible circuits mostly use PI or PET substrates. The inconsistent thermal shrinkage coefficient of dissimilar materials tends to cause structural deformation, which restricts long-term product stability. In addition to planar stress control in X and Y axes, three-dimensional assembled rigid-flex products also require targeted optimization of Z-axis pressure resistance. To solve interfacial bonding defects between heterogeneous materials, mainstream material suppliers have developed modified epoxy resin and special composite adhesive systems to improve bonding compatibility and overall structural reliability.

With comprehensive structural advantages, rigid-flex PCB has been widely adopted across multiple industries, covering smart wearable devices, semiconductor peripherals, digital imaging modules, tablets, mobile terminals, navigation modules, automotive safety systems, IC carrier boards, storage hardware, graphics cards, power battery boards, wireless communication components, industrial control equipment and other core electronic products.
