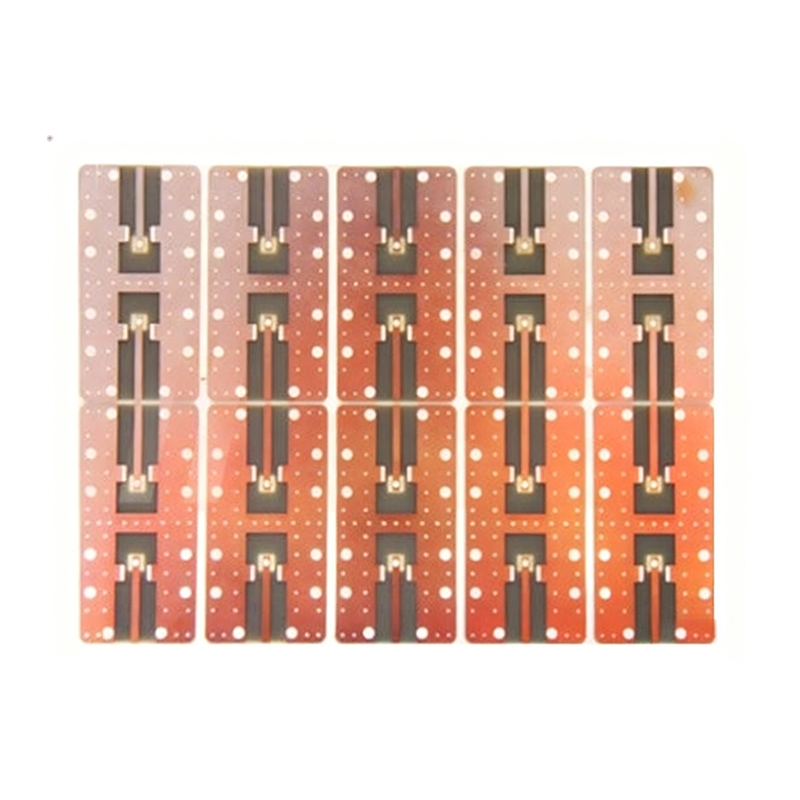

Name: Teflon PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

Teflon PCB is engineered with high-grade polytetrafluoroethylene (PTFE) laminates, serving as a core substrate solution for high-end electronic systems. As a high-performance special polymer material, PTFE exhibits powerful resistance to acids, alkalis and various organic chemical reagents, with nearly universal insolubility in industrial solvents. Combined with outstanding high-temperature resistance and ultra-stable low dielectric properties, it becomes the preferred base material for high-frequency and microwave circuit design.

Core Performance Advantages of Teflon Material

High temperature resistance: Continuous operating temperature ranging from 200 ℃ to 260 ℃
Low temperature toughness: Maintains flexible mechanical performance at -100 ℃
Chemical corrosion resistance: Immune to aqua regia and most industrial organic solvents
Superior weatherability: Boasts the longest anti-aging service life among plastic materials
Ultra-low friction: Friction coefficient as low as 0.04, ranking the minimum among engineering plastics
Anti-adhesion property: Extremely low surface tension, preventing adhesion with all types of substances
Biological and electrical stability: Physiologically inert, qualified as Class C high-performance insulating material; thin substrate can withstand 1500 V high voltage, with surface smoothness exceeding ice surface

With integrated merits of heat resistance, corrosion resistance, non-stick surface, self-lubrication, low friction and premium dielectric performance, PTFE stands as a high-spec high-frequency substrate. Teflon PCB is widely adopted in radar equipment, radio frequency hardware and high-speed communication facilities. While most manufacturers lack mature processing capability for PTFE materials, Maxipcb provides customized Teflon PCB solutions, supporting 4~6 layers of pure PTFE lamination and 4~8 layers of PTFE & FR4 hybrid lamination.

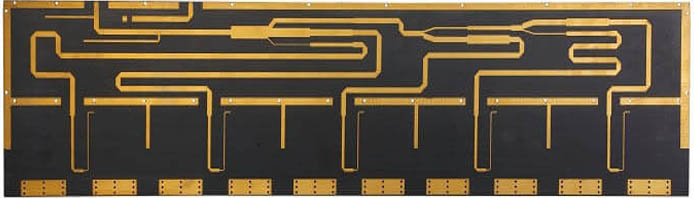

Teflon PCB

Key Electrical Characteristics of High-Frequency Teflon PCB

Signal Gain Capability
It realizes stable voltage amplification and power output optimization for both high-frequency signals and low-frequency power circuits, delivering excellent resonance amplification and broadband signal processing performance.
Stable Passband Performance
It features reasonable frequency response range. For resonant circuits, the effective bandwidth is defined by the frequency range where amplitude attenuates to 0.707 of the peak value; for broadband circuits, it maintains stable transmission within designated frequency bands.
High Signal Selectivity
Targeted at resonant amplifier circuits, it effectively screens valid signals and suppresses interference noise, with reliable signal filtering capacity measured by rectangular coefficient and interference rejection ratio.
Low Noise Figure
It restrains irregular signal fluctuation and internal circuit noise during operation. By optimizing signal-to-noise ratio, it reduces signal distortion and ensures high-fidelity signal transmission.
Environmental Stability
Core electrical parameters remain stable under variable temperature, fluctuating power voltage and long-term operation. It avoids gain deviation, center frequency offset and resonance curve mutation, ensuring continuous and reliable equipment operation.

In summary, high-frequency Teflon PCB is characterized by high signal gain, sensitive signal reception, wide frequency coverage, low noise and strong environmental adaptability.

Definition of High-Frequency Teflon PCB

High-frequency PCB refers to specialized circuit boards applicable to high-frequency (over 300 MHz, wavelength below 1 m) and microwave (over 3 GHz, wavelength below 0.1 m) scenarios. Manufactured with microwave-grade PTFE copper-clad substrates via rigid board fabrication and special high-frequency processes, it is generally defined as a high-frequency PCB with operating frequency above 1 GHz.

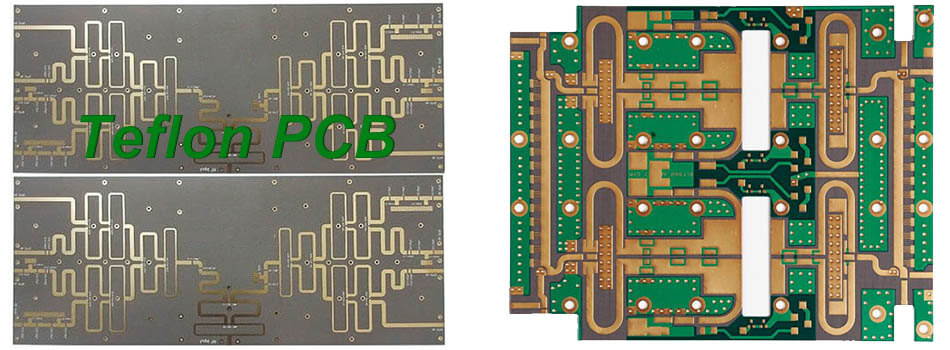

Teflon PCB

Industry Demand & Application Scope

Driven by technological iteration, industrial equipment is widely upgraded to microwave and millimeter wave (up to 30 GHz)

operation. Higher frequency requirements raise stricter standards for substrate dielectric stability, chemical durability and low signal loss, which greatly boosts the market demand for high-frequency Teflon PCB.

Main Application Fields

High-speed communication and radio frequency system hardware
Power amplifiers, low-noise amplifiers and core radio frequency components
Passive devices: power splitters, couplers, duplexers and high-frequency filters
Intelligent transportation: automotive anti-collision electronic systems
Aerospace: satellite navigation, radar detection and radio communication equipment

Manufacturing Strength of Maxipcb

Maxipcb is a professional Teflon PCB manufacturer, supplying mainstream branded substrates including Rogers and Taconic, with sufficient in-stock materials to support rapid prototyping and mass delivery.

Available material series cover PTFE glass fiber copper-clad plates, ceramic-filled PTFE composite substrates and microwave multi-layer dielectric materials. Our product portfolio extends to multi-layer microwave Teflon circuits, high-frequency electronic components and high-temperature insulating coatings.

Teflon PCB products are widely deployed in aerospace, satellite navigation, radar reconnaissance, electronic countermeasure and 3G/4G/5G communication industries. The cost-effective F4B series PTFE laminates deliver balanced performance and pricing, serving as a cost-efficient option for high-frequency projects.

With years of accumulated high-frequency processing experience, Maxipcb specializes in pure PTFE multi-layer boards and PTFE+FR4 hybrid multi-layer PCB customization. Our finished products are highly recognized in 5G communication, radio frequency and precision high-frequency electronic fields.

Typical Application Scenarios

Aerospace & Radar Systems

Defense and aerospace radar equipment requires PCBs with ultra-low high-frequency loss and stable dielectric parameters. Maxipcb Teflon PCB features excellent corrosion resistance and temperature adaptability, ensuring stable signal transmission and system operation in extreme environments. The multi-layer compact design fully meets the miniaturization demand of radar modules, matching high-standard assembly and mass production requirements.

5G High-Frequency Communication Hardware

In telecom infrastructure construction, Teflon PCB is the core carrier for high-speed data transmission and anti-interference processing. Maxipcb provides high-precision multi-layer high-frequency boards with customized dielectric constant and copper thickness, applicable to 5G antennas, power amplifiers and filter circuits. The material’s thermal and chemical stability ensures long-term reliable operation of densely arranged communication equipment.

Common FAQ

Substrate Material
Maxipcb Teflon PCB adopts high-purity PTFE copper-clad laminates, with a dielectric constant of 2.0~3.5, featuring low dielectric loss and excellent insulation for high-frequency working conditions.
Customization Service
Customized parameters including dielectric constant, copper foil thickness and stacking structure are supported to meet personalized high-frequency performance demands.
Delivery Cycle
The lead time depends on layer count, structural complexity and customized processes. For specific prototype and mass production schedules, please contact our sales team for accurate quotation.
Daily Operation & Maintenance
PTFE substrates possess high chemical stability and temperature resistance. Standard anti-collision and anti-scratch protection during assembly can effectively extend the service life of high-frequency circuit boards.

Product Name: Teflon PCB

Material: Teflon laminate material

Quality standard: IPC6012 Class II or Class III

Dielectric constant: 2.0 - 3.5

Layers: 2 layer - 34 layer

Thickness: 0.1mm - 12mm

Copper thickness: base copper 0.5oz, finished copper thickness 1oz

Surface technology: Immersion Gold, ISIG

Special requirements: high precision of RF line

There are requirements for DK and DF of materials

Application: Microwave high-frequency PCB application

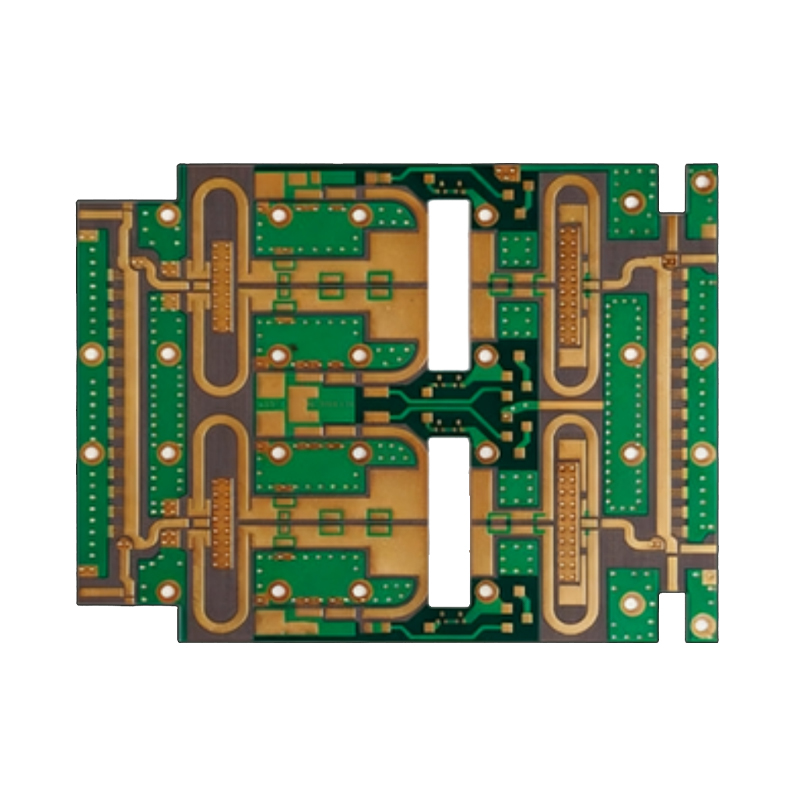

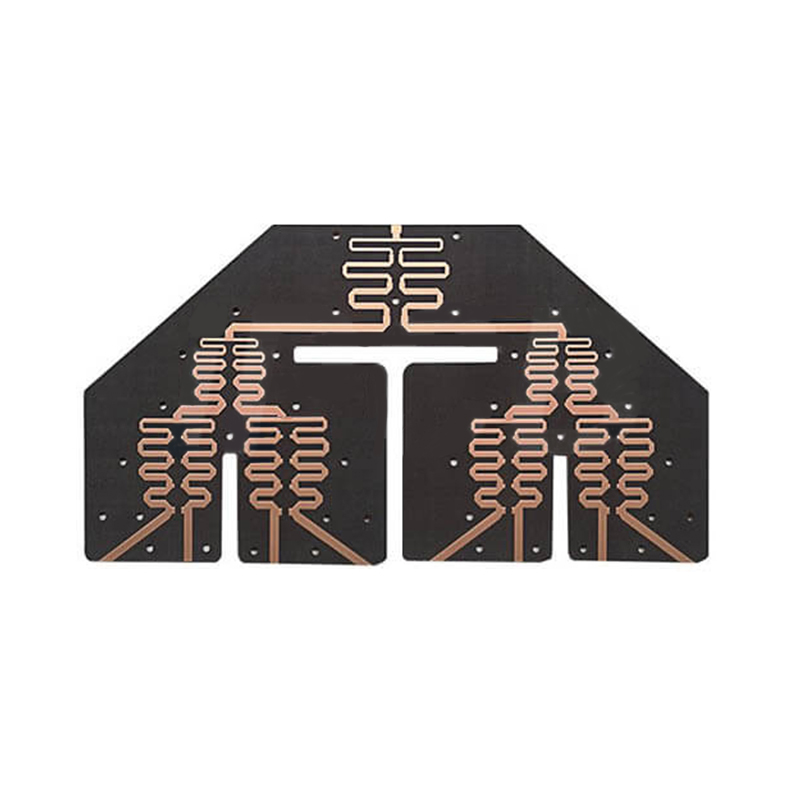

Teflon PCB
