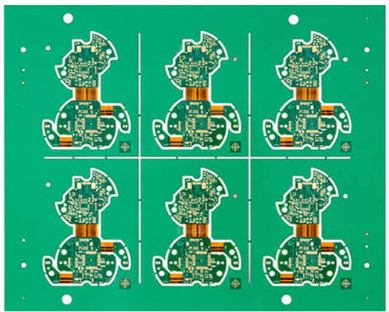

Name: Smart health assistant Rigid-Flex PCB (FPCB)
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

Description
Data Sheet

1. Core Requirements of Smart Health Assistants for PCB

Smart health assistants require ultra-small, ultra-thin structural design to fit closely with the human body, while realizing real-time detection of physiological data such as blood pressure and heart rate. To meet these strict product requirements, Rigid-Flex PCB (R-FPCB) has become the core interconnection solution, leveraging its unique structural and performance advantages to match the product’s miniaturization, high reliability, and real-time data transmission needs.

2. Core Advantages of R-FPCB for Smart Health Assistants

2.1 Space-Saving & Cost-Reduction

R-FPCB features an integrated structure, which eliminates the need for connectors or HotBar manufacturing processes traditionally used for interconnection between multiple PCBs. For high-density PCB designs required by smart health assistants, reducing the number of connectors significantly optimizes spatial utilization—an essential advantage for miniaturized products. This integration not only saves the cost of connector components and HotBar process costs but also enables tighter spacing between PCB modules, further reducing the overall product volume.

2.2 Enhanced Signal Transmission Reliability

R-FPCB shortens signal transmission distance and improves transmission speed, thereby enhancing the reliability of real-time physiological data transmission. The traditional signal transmission path (PCB-connector-FPC-connector-PCB) is simplified to PCB-FPC-PCB in R-FPCB, reducing signal attenuation caused by multi-medium switching. Traditional connectors have gold-plated contact terminals, tin-plated solder pins, and require solder paste for PCB soldering—these multi-medium connections inevitably lead to signal attenuation. R-FPCB reduces the number of transmission media, effectively improving signal transmission capability, which is critical for smart health assistants requiring high signal accuracy.

Maxipcb, a professional high-precision flexible circuit manufacturer with years of experience in the FPC industry, relies on superb process technology to further optimize R-FPCB signal transmission performance, ensuring stable and accurate real-time data transmission for smart health products.

2.3 Simplified Assembly & Efficiency Improvement

The adoption of R-FPCB simplifies product assembly processes and reduces assembly man-hours. The reduction in connectors decreases SMT component mounting time; meanwhile, the elimination of FPC insertion into connectors and HotBar processes further shortens the overall machine assembly cycle. Additionally, fewer components reduce BOM (Bill of Materials) complexity, lowering parts management and inventory costs.

2.4 Other Key Performance Advantages

R-FPCB also boasts the following characteristics that adapt to smart health assistant applications: flexible structure enabling three-dimensional wiring, which can be shaped according to spatial constraints of the product; excellent high and low temperature resistance and flame retardancy, adapting to various human body temperature environments; foldability without affecting signal transmission, facilitating compact structural design; anti-electrostatic interference capability, ensuring stable data detection; stable chemical properties and high reliability, extending product service life; and supporting product design optimization, reducing assembly errors and enhancing overall product durability. Moreover, R-FPCB helps reduce product volume and weight while increasing functional integration, achieving cost optimization.

3. Definition & Structural Features of R-FPCB

R-FPCB is a composite circuit board formed by laminating thin flexible FPC substrates and rigid PCB substrates into a single component. It breaks the traditional planar design paradigm, extending to three-dimensional spatial design—this not only provides greater flexibility for the miniaturized design of smart health assistants but also brings technical challenges to manufacturing precision.

Designers can use a single R-FPCB component to replace composite PCBs composed of multiple connectors, cables, and ribbon cables, achieving stronger performance and higher stability. By bending and folding the circuit, the design is confined to a single component, maximizing the utilization of limited space in smart health assistants.

As a typical multilayer PCB, R-FPCB integrates both rigid and flexible layers. A standard 4-layer R-FPCB adopts a polyimide (PI) core with copper foils on both sides, and external single-sided FR4 rigid layers laminated on the PI core to form a complete, high-reliability multilayer structure.

4. R-FPCB Manufacturing Characteristics

R-FPCB manufacturing involves multiple materials and complex processes, resulting in longer processing cycles and higher costs compared to standard rigid PCBs. The key difference lies in the distinct processing technologies of FPC and FR4 layers—different material layers must be laminated first before drilling and electroplating. Typically, the fabrication cycle of a 4-layer R-FPCB is 5 to 7 times that of a standard 4-layer rigid PCB. Maxipcb relies on mature process control capabilities to optimize manufacturing efficiency while ensuring product precision, meeting the rapid prototype and mass production needs of smart health assistant manufacturers.

5. Application Scope & Adaptability

In addition to smart health assistants, R-FPCB is widely used in aerospace (e.g., high-end aircraft-mounted weapon navigation systems), advanced medical equipment, digital cameras, portable camcorders, and high-quality audio devices. It is particularly suitable for products requiring miniaturization, high reliability, and three-dimensional assembly—such as smart health assistants and medical monitoring equipment—where it enhances connection reliability, reduces product weight, and optimizes overall size.

6. Cost Analysis & Development Trend

Although R-FPCB has a higher initial cost than traditional rigid PCBs, it provides an ideal solution for smart health assistants requiring space and weight reduction. Its core advantage lies in FPC substrate interconnection rather than multi-PCB connection devices, perfectly matching the design needs of precision portable products. With the continuous maturity of the R-FPCB industry, manufacturing costs are gradually decreasing, further improving its cost-effectiveness and market competitiveness in the smart health field.

7. Maxipcb R-FPCB Core Advantages for Smart Health Assistants

7.1 Strict Material Selection

Maxipcb adheres to high-standard material selection to ensure R-FPCB adaptability to smart health products:

• Flexible Substrate: Adopts DuPont AP adhesive-free PI substrates, featuring excellent flexibility, electrical performance, and heat resistance (note: PI has high hygroscopicity and poor alkali resistance). Adhesive-free substrates avoid defects of common adhesives (acrylic, polyester, modified epoxy), ensuring stable performance in long-term contact with the human body.

• Rigid Substrate: After rigorous verification, PI resin rigid materials laminated with P95 substrates/prepregs are selected, avoiding warpage caused by resin incompatibility (a common issue with FR-4/G200 substrates) and ensuring structural stability under human body temperature fluctuations.

• Rigid-Flex Junction Adhesive: Uses No-flow prepregs for lamination to avoid glue overflow and transition area damage, ensuring product thinness and structural integrity. For RoHS compliance, high Tg, and impedance control requirements (critical for physiological data transmission), raw material characteristics are strictly verified.

7.2 Precision Process Control

Maxipcb leverages professional teams and advanced equipment to control core manufacturing processes, ensuring R-FPCB precision and reliability for smart health assistants:

• Inner Layer Pattern Transfer: Uses electrolytic cleaning to avoid substrate deformation, ensuring copper surface cleanliness and roughness, supporting 0.1mm~0.15mm line width/spacing to meet high-density design needs.

• Multi-Layer Positioning: Adopts OPE-drilled positioning holes and X-ray drilling to eliminate alignment errors, meeting 0.1mm~0.15mm inter-layer registration requirements and ensuring stable signal transmission.

• Lamination & Drilling: Optimizes lamination parameters for PI substrates, uses silicone rubber gaskets to ensure flatness; adopts high-speed drilling machines and high-quality drill bits to avoid burrs, ensuring product thinness and reliability

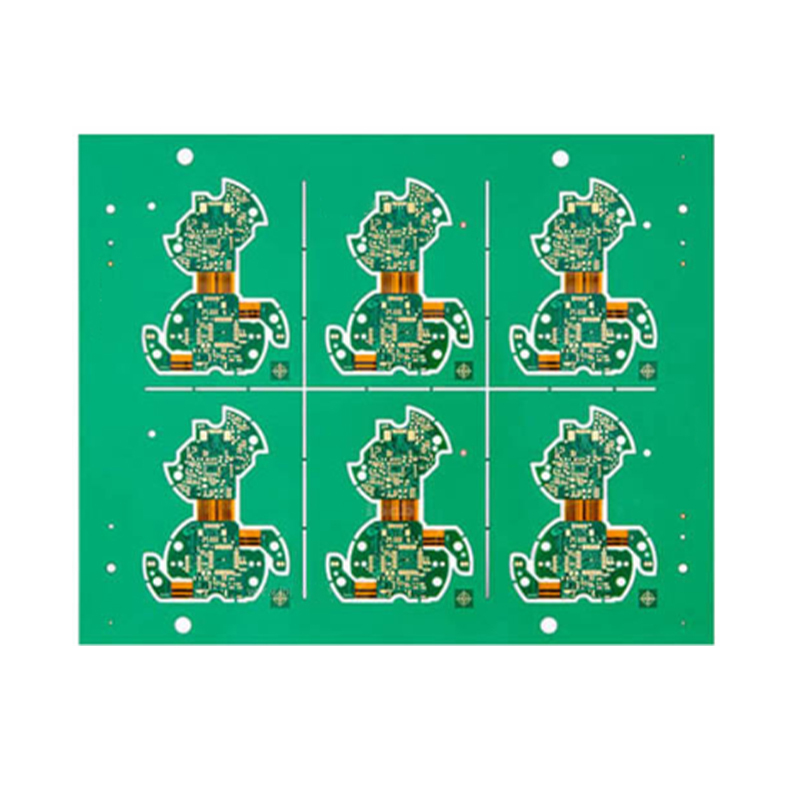

Model : Smart health assistant Rigid-Flex PCB (FPCB)

Material : FR-4+PI

Layer : 6Layers

Color : Green/White

Rigid PCB Thickness : 0.8mm

Flex PCB Thickness : 0.2mm

Copper Thickness : 0.025mm

Surface Treatment : Immersion Gold

Minimum line width / distance : 0.1mm

Application : Smart health assistant Rigid-Flex PCB (FPCB)
